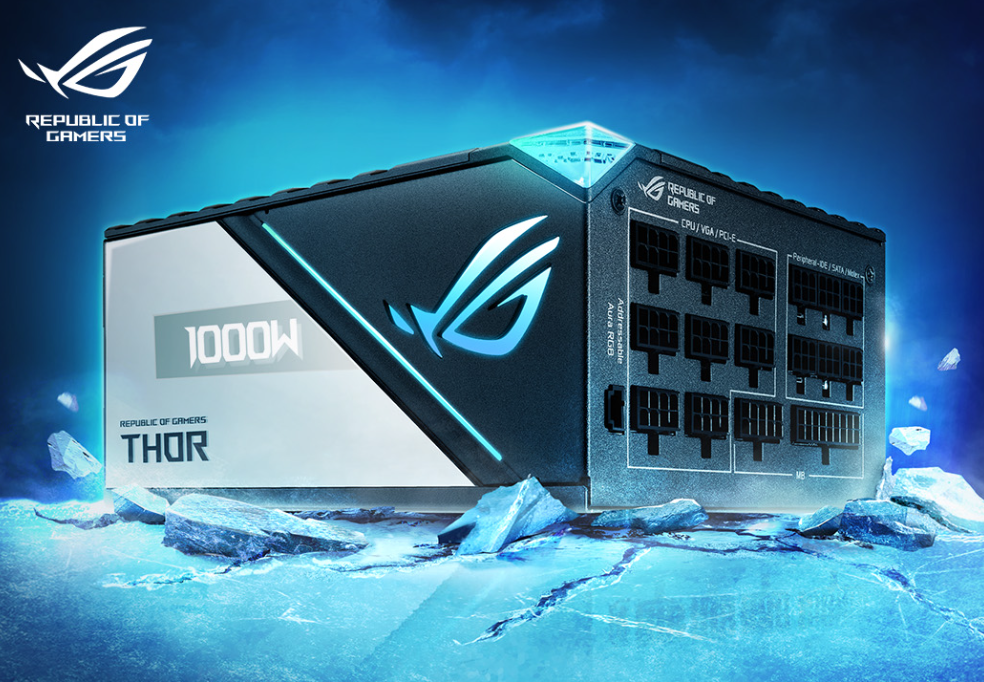

Asus ROG Thor 1000W Platinum II OLED Power Supply - 90YE00L4-B0NA00

Tech Specs

PFC Type

Active PFC

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83A 0.3A 3A

Combined Load

125W 125W 996W 3.6W 15W

Total Output

1000W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (component side)

PCI-E 6+2-pin x 8

SATA x 12

PERIPHERAL x 6

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (component side)

PCI-E 6+2-pin x 8

SATA x 12

PERIPHERAL x 6

Package Contents

Power Cord x 1

Motherboard Power Cable x1 (610mm)

CPU Cable x2 (650mm)

PCIE Cable 16-pin x1 (675mm)

PCIE 1-to-1 Cable x4 (675mm)

PCIE 1-to-2 Cable x2 (675+75mm)

SATA 1-to-4 Cable x3 (400+120+120+120mm)

Peripheral 1-to-3 Cable x2 (450+120+120mm)

Addressable RGB Cable x1 (800mm)

ROG sticker x 1

ROG cable tie x 6

Sleeved Cable Combs (6-pin) x 4

Sleeved Cable Combs (8-pin) x 10

Sleeved Cable Combs (24-pin) x 2

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Weight

2.37 KG

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
