CiT Orion White ATX Gaming Case with Mesh Front and Tempered Glass Side - CIT-ORION-W

The CiT Orion is a serious, good-looking bit of kit. An ATX chassis designed with both style and purpose, it hits all the boxes for a powerful gaming rig without breaking the bank.

Special Price £53.99 £44.99 was £58.99
SKU
5CD-26E-67F
In stock

Features

Features

Brand CiT
Model Number CIT-ORION-W

Description

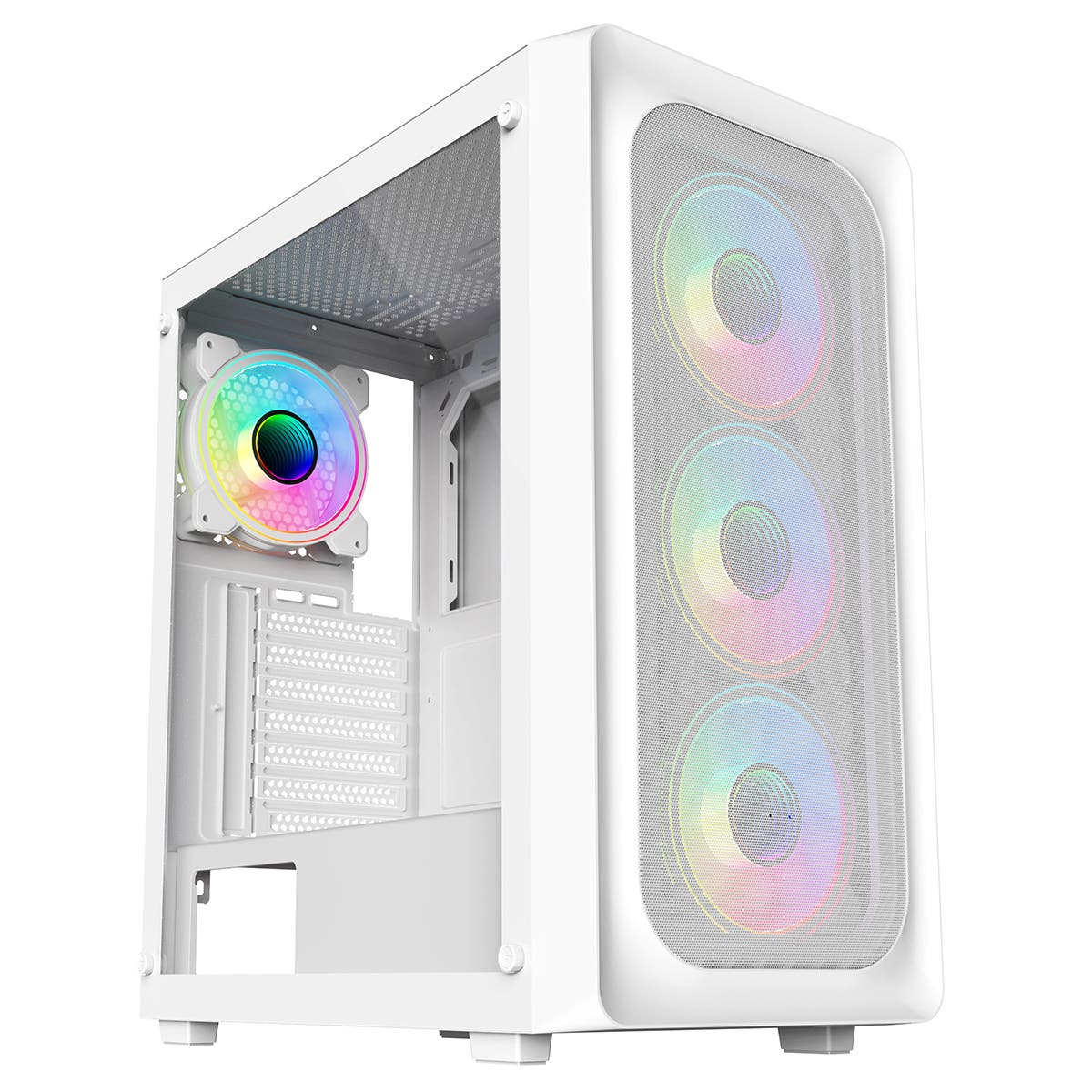

CiT Orion White ATX Gaming Case with Mesh Front and Tempered Glass Side


Sporting a mesh front panel, the CiT Orion allows for large volumes of air to pass through unrestricted. Enhancing the airflow even further it features 4 bundled CiT Celsius Fans to cool even the most demanding rigs. The air intake can be maximised even further with 120mm/240mm/360mm AIO solutions & with the possibility to mount additional fans at the top or PSU shroud.

Making the Orion stand out from the pack is the smooth, streamlined front design – the curved edges around the front add style on top of the sheer functionality the mesh and fans already provide.

Helping to make the Orion stand out even further, 4 CiT Celsius Infinity 120mm ARGB Dual-Ring White Fans add a touch of infinity, the circular-shaped infinity mirrors at the centre of the fans create a mesmerising LED lighting display with their multi-layer effect. They not only look fantastic but also ensure all components are catered for when it comes to keeping temperatures balanced & conditions optimised for a peak performance.

Moving onto the top of the case the I/O panel provides USB3.0 and USB2.0 connections & inside is a PWM ARGB hub with LED lighting controls with access to approximately 365 LED modes or 16.8 million colours using a compatible addressable RGB MB.

Measuring 43.6cm in height, the all-white interior & full PSU shroud add to the sleek and unobtrusive look. It can fit a graphics card up to 34cm & behind the MB & PSU shroud up to 4 x 2.5” / 2 x 3.5” drives. Top & bottom removable dust filters help keep your rig clean, with room in the shroud for an ATX PSU up to 200mm with cables easily hidden from view.

If you want an impressive looking, well-cooled and versatile Gaming Rig, look no further than the CiT Orion, carrying some serious power, creating a stunning look and functional Gaming PC.


Key Features

Mesh ATX Gaming Case - The CiT Orion is a bold and sophisticated gaming case finished in all white with a mesh front panel which allows air to flow into the case easily without obstruction combining a super airflow performance with dust filtration, making this stylish chassis ideal for any gaming room.

Four CiT Celsius Infinity 120mm ARGB Dual-Ring White Fans Bundled - The CiT Orion comes bundled with 4 x CiT Celsius Infinity 120mm ARGB Dual-Ring White Fans - As a PWM fan (Pulse-Width Modulation) its rotation speed can be user controlled by connecting the fan to a compatible motherboard or fan controller. As a result users can choose whether they want the fan to run quietly or have enhanced airflow. With Dual-Ring and the circular-shaped, multi-layer Infinity Mirror Design, the Infinity fans add a mesmerising LED lighting display to the Orion. Please note the fans are included inside the box only and will need to be installed.

Fan Controller Included - A PWM hub is included inside the Orion which allows you to add up to 6 case fans and is powered directly from your power supply via SATA. You can access it using the LED button and it's connected to the Motherboard using a single cable - you can setup without any additional cables.

PWM Fan Control - The hub can be connected to the CPU fan interface on your chosen Motherboard to access temperature readings. An increased CPU temperature increases the fan speed automatically and swiftly cools the system down. Conversely when the CPU temperature decreases the fan automatically slows reducing the overall noise.

Motherboard Software - The ARGB lighting effects can be synced through the Motherboard which supports ARGB function, 5V 3-Pin Addressable RGB header, including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0 & ASRock. Customise the look with endless possibilities with 16.7 million static modes and 12 pre-set lighting effects.

Tempered Glass Panel - The solid tempered glass side panel offers an excellent view of the interior specifically of the Motherboard & Graphics Card.

PSU Shroud - To keep the interior looking neat and tidy the Orion has a dedicated PSU Shroud that is made with solid steel panelling that perfectly covers the cables, showcases the PSU specs and contains a hard drive mount. The hard drive cage holds up to 2 x 2.5” SSDs and/or 2 x 3.5” HDDs (2 x 2.5" bays share the 2 x 3.5" bays, and 2 x Extra 2.5” SSDs slots are also available). This shroud can hold power supplies up to 200mm long.

ATX Housing - ATX, Micro-ATX and Mini-ITX Motherboards are compatible and graphics cards up to 340mm in length and CPU coolers up to 165mm in height are supported - there is adequate space for mainstream hardware to build a high-powered PC Gaming case.

Specification

Chassis Dimensions (Excluding Fascia / Panels): (W) 219 x (H) 436 x (D) 353mm

Front Supported Radiator(s): 120mm or 240mm - 360mm is supported up to 395mm in length dependant on design
Top Supported Radiator(s): 120mm or 240mm
Rear Supported Radiator(s): 120mm
Fan Controller Support:
Fan Controller Included: Yes
Fan Controller Power Via: SATA
LED Controller: Yes
Fan Power Connector:  4pin Fan Connector
LED Power Connector: 3pin Aura
Fan Control Via:    LED Button / MB Sync
Supported Qty Of Fans (Max.): 6
Supported Qty Of LEDs (Max.): 6


Additional Chassis Specifications:
PSU Max. Length:    200mm
CiT Celsius ARGB Dual-Ring Infinity Fan Specification:
Dimensions:    120 x 120 x 25mm
Fan Frame Colour:    White
Fan Blades / Colour:    9 / Semi-Transparent White
LED Qty / Type:    21 / ARGB
Bearing Type:    Hydraulic Bearing
Fan Speed:    PWM 800 - 1500 RPM
Max. Airflow:    30.46 CFM
Max. Static Air Pressure:    0.99mm-H2O
Noise Level (Max.):    15.98 dBA
Cable Length:    550mm
Accessories:    Screws
Connectors:    SATA, 4pin Male Fan connector, 4pin female fan connector (passthrough), 3pin male AURA, 3pin female AURA (passthrough)
Rated Voltage:    12V
Rated Current (Max.):    0.1A
Rated Input Power:    1.2W
Test Voltage:    12V
Start Voltage:    3.5V
M.T.B.F:    30,000 Hours


Case Specifications

Form Factor:    Midi Tower
Motherboard Support:    ATX, Micro ATX, Mini ITX
PSU Support:    Standard ATX
PSU Location:    Bottom
Gaming Case:    Yes
Water Cooling:    Water Cooling Ready!
Supported Radiator Size: 240mm
Supported Radiator Positions: Front, Top
Body Material:    0.74mm
Front Bezel Material:    ABS & Mesh
Side Panel:    Tempered Glass
Internal Cable Management Depth:    20mm
External Bays:
Internal Bays:    2 x 3.5” Internal
4 x 2.5” Internal
Drive Bay Notes:    2 x 2.5" share 2 x 3.5"
Expansion Slots:    7 x Full Size
Cooling Front:    Space For 3 x 120mm Fans (3 x ARGB Fans Bundled To Fit)
Cooling Top:    Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear:    Space For 1 x 120mm Fan (1 x ARGB Fan Bundled To Fit)
Cooling Side:    None
Cooling Bottom:    Space For 2 x 120mm Fans (On PSU Shroud)
Fan Controllers:    1 Fan Controllers, controlling up to
6 fans in total
IO Ports:    1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
GPU Max Length:    340mm
CPU Cooler Maximum Height:    165mm
Front Bezel Colour:    White
Body Colour:    White
System Cabinet Features:
PSU Included:    No
