CiT Pro Creator XR – Technical Overview

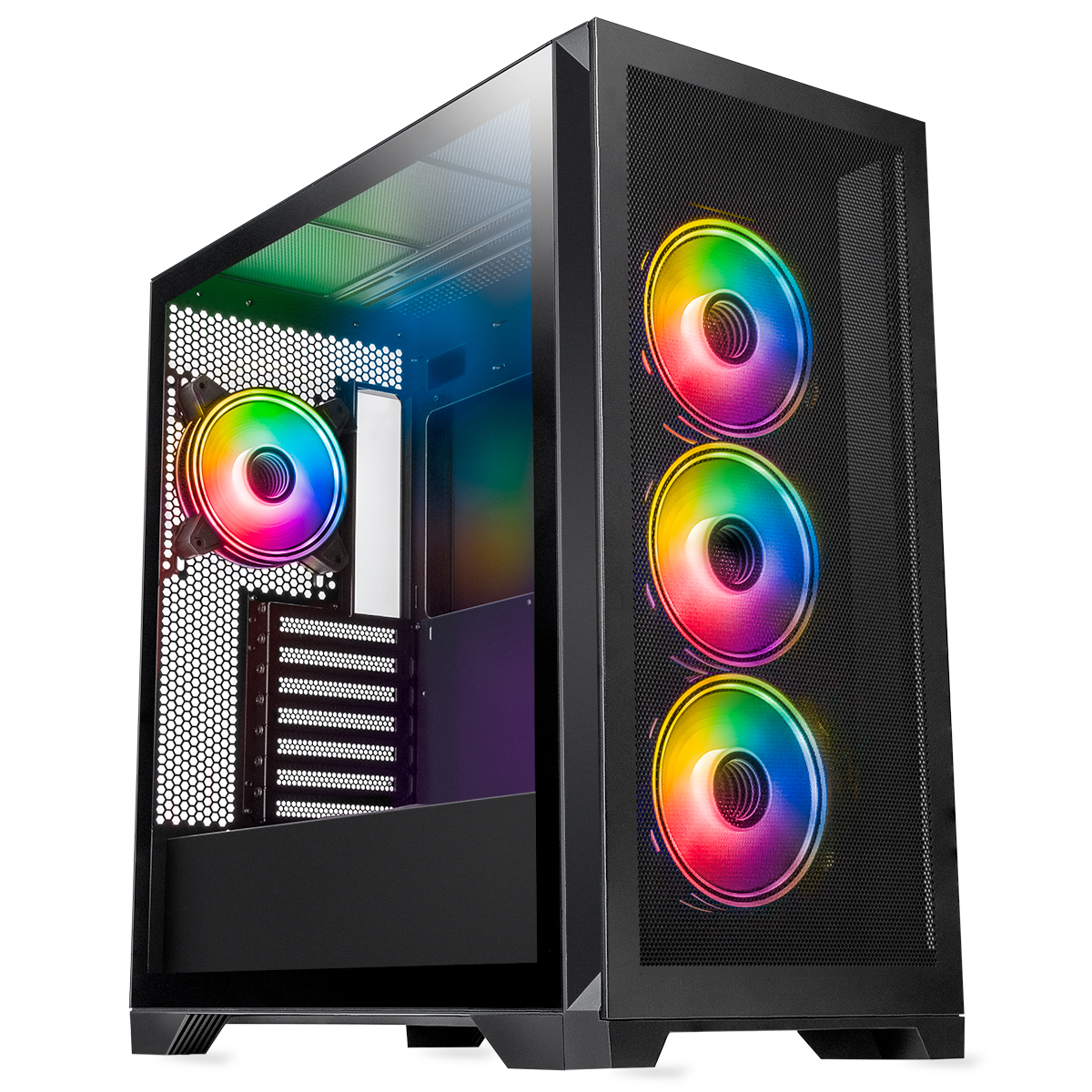

The CiT Pro Creator XR is a high-performance mid-tower chassis designed for demanding gaming setups. Engineered for optimal cooling and component compatibility, it features a robust 1.0mm SPCC steel construction with a metal mesh front panel for enhanced airflow and dust filtration.

Cooling and Airflow:

Supports up to 10 fan mounting locations for maximum airflow flexibility.
Radiator compatibility includes 360mm radiators in the front, top, and motherboard plate positions for superior liquid cooling.
The front panel accommodates 3x 120mm or 140mm fans, the top supports 3x 120mm or 2x 140mm fans, and the rear holds 1x 120mm fan.

Component Support:

Supports ATX, Micro-ATX, and Mini-ITX motherboards.
GPU clearance up to 430mm and CPU coolers up to 180mm.
PSU shroud accommodates power supplies up to 315mm, with integrated mounts for 2x 2.5” SSDs or 2x 3.5” HDDs.

Panels and Customization:

Interchangeable front panels include a metal mesh option for airflow and an optional tempered glass panel for aesthetics (sold separately).
Tempered glass side panel provides an unobstructed view of internal components and ARGB lighting.

Connectivity and Features:

Front I/O panel includes USB Type-C (10Gbps), 2x USB 3.0, 3.5mm audio, and microphone jacks.
Seven PCIe expansion slots on the rear panel.
Removable dust filters on the front and bottom ensure a clean and low-maintenance interior.

Dimensions:

External: 506mm (H) x 235mm (W) x 482mm (D).
Internal: Designed for efficient cable management with 50mm of cable depth.
The CiT Pro Creator XR is built to support high-performance gaming hardware, offering versatility, cooling, and a premium build for enthusiasts seeking a technically advanced chassis.
