GIGABYTE P750GM 750w 80 Plus Gold Fully Modular Power Supply



Fortify the power of your system with the P750GM PSU from GIGABYTE. This impressive power supply unit houses 100% japanese capacitors to give you excellent performance for longer, along with an intuitive Hydraulic Bearing Fan that offers both noise reduction and excellent cooling.

£67.30 £56.08
SKU
29-CD3N-Y2A6
Out of stock

Features

General

SKU 29-CD3N-Y2A6

Features

Brand Gigabyte
Model Number P750GM
Wattage 750W
Efficiency Rating Gold
Modular? Yes
PSU Form Factor ATX
Colour Black

Description

GIGABYTE P750GM 750w 80 Plus Gold Fully Modular Power Supply

CREATE A POWERHOUSE SYSTEM

Fortify the power of your system with the P750GM PSU from GIGABYTE. This impressive power supply unit houses 100% japanese capacitors to give you excellent performance for longer, along with an intuitive Hydraulic Bearing Fan that offers both noise reduction and excellent cooling. The 80 PLUS Gold certification that this PSU holds means that you will enjoy up to 90% efficiency at all times. Take advantage of incredible stability, compatibility and the best power output with Single +12V rail, and ultimately give your PC the power it deserves. In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your syste

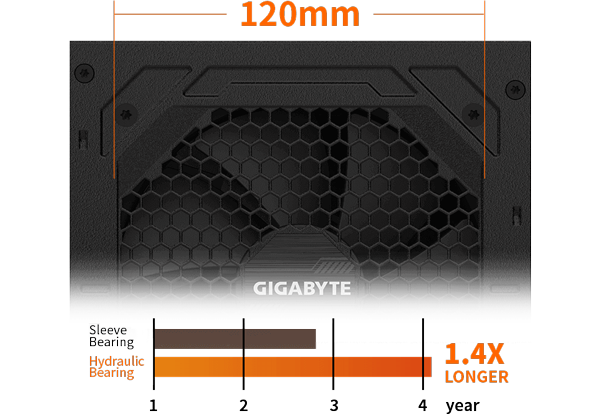

120MM SMART HYDRAULIC BEARING FAN

The 120mm Hydraulic Bearing fan inside the PSU works by reducing noise and optimizing thermal performance. The fan speed is adjusted according to the automatic power detection. The HYB fan offers a longer and more stable lifespan and can last 1.4 times longer than a standard sleeve bearing fan.

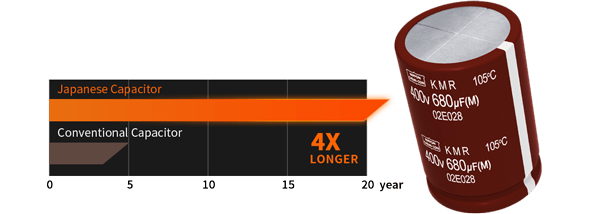

100% JAPANESE CAPACITORS

The Japanese capacitors in the GIGABYTE P750GM PSU are made at the highest quality to produce the efficient performance and long reliability that every PC enthusiast desires and needs. Japanese capacitors can last up to four times longer than the conventional capacitors, which guarantees you'll have greater power for longer.


SINGLE +12V RAIL

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

FULLY MODULAR DESIGN

GIGABYTE's P750GM provides the best solution for easily creating your dream system. All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFICATION

The 80 PLUS Gold certification ensures up to 90% efficiency at 50% load when running your PSU. There's less power waste, reduced heat and reduced fan noise.

Specification

Model | GP-P750GM

Type | Intel Form Factor ATX 12V v2.31

PFC | Active PFC (>0.9 typical)

Input Voltage | 100-240 Vac (full range)

Input Current | 12-6 A

Input Frequency | 60-50 Hz

Output Capacity | 750W

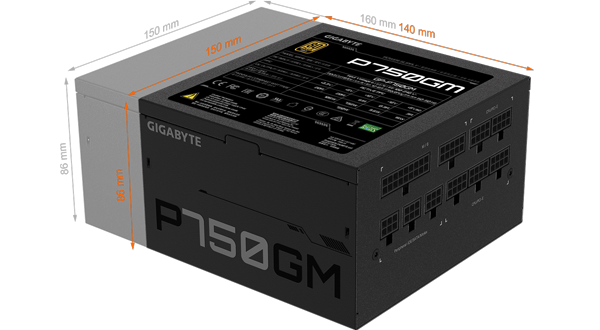

Dimension | 150 x 140 x 86 mm

Fan Type | 120mm Hydraulic Bearing ( HYB ) fan

80 PLUS | Gold

Efficiency | 90% at typical load

MTBF | >100,000 hours

Protection | OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal | 100-500ms

Hold Up Time | >16ms

Cable Type | Flat, All black

Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
