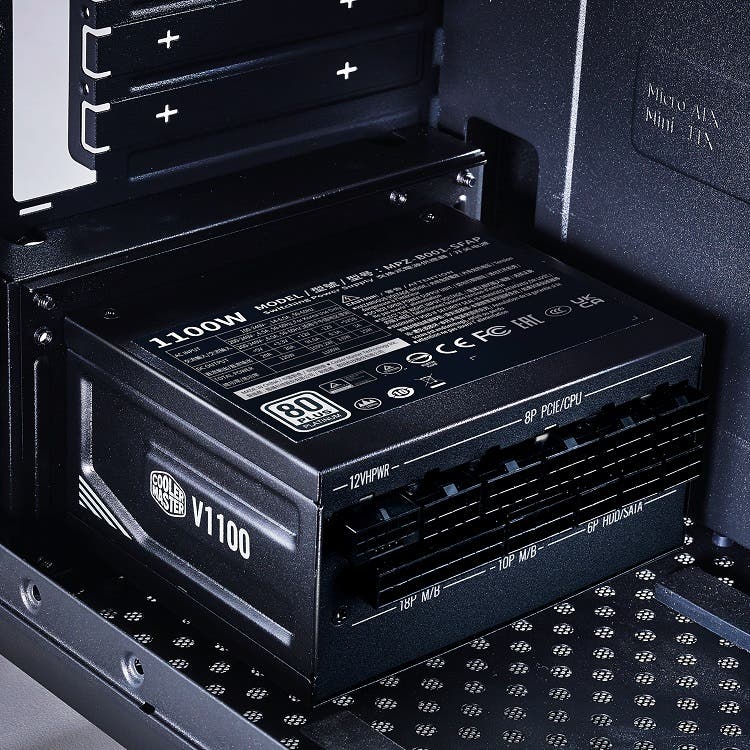

CoolerMaster V SFX Platinum 1100W PSU Fully Modular ATX 3.0 Power Supply - MPZ-B001-SFAP-BUK

The V SFX Platinum includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.

£369.99 £308.32
SKU
2CB-644-846
In stock

Features

Features

Brand Cooler Master
Model Number MPZ-B001-SFAP-BUK
Wattage 1100W
Efficiency Rating 80 PLUS Platinum
Modular? Fully Modular
PSU Form Factor SFX
Colour Black

Description

CoolerMaster V SFX Platinum 1100W PSU Fully Modular ATX 3.0 Power Supply - MPZ-B001-SFAP-BUK

The V SFX Platinum is leading the industry as the first SFX unit to acheive 1300W, and includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.

Features
- High power density
- ATX 3.0 support & a 90-degree 12VHPWR cable
- Advanced thermal performance
- 80 Plus Platinum efficiency
- Fully modular cabling
- 10-year warranty

High power density
Improved material engineering techniques, manufacturing processes, and miniaturization technology have ensured the V SFX Platinum has one of the highest power densities in the industry.

Mini but mighty
Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.

Enhanced dissipation
The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.

Full & flexible compatibility
With an ATX bracket, ATX 3.0 support, and GPU compatibility with both the 40 series and previous cards, the V SFX Platinum works with both ATX and mini-ITX cases.

ATX 3.0 support & a durable 90-degree 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

Specification

Specification
Series: V SFX Series
80 Plus: Platinum
Modular: Full Modular
Wattage: Above 750W
ATX Version: ATX3.0, SFX 12V Ver. 3.42
PFC: Active PFC
Input Voltage: 100-240V
Input Current: 14-6.5A
Input Frequency: 50-60Hz
Dimensions (L x W x H): 100 x 125 x 63.5 mm
Fan Size: 92mm
Fan Bearing: FDB
Efficiency: ≥ 92% @ Typical Load
80 PLUS Rating: 80 PLUS Platinum
ErP 2014 Lot 3: Yes
Operating Temperature: 0-50°C
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥16ms at 70% Load
MTBF: >100,000 Hours
Protections: OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA

Connectors
ATX 24 Pin Connectors: 1
EPS 4+4 Pin Connectors: 1
EPS 8 Pin Connector: 1
SATA Connectors: 8
Peripheral 4 Pin Connectors: 4
PCI-e 6+2 Pin Connectors: 3
12VHPWR Connector: 1
