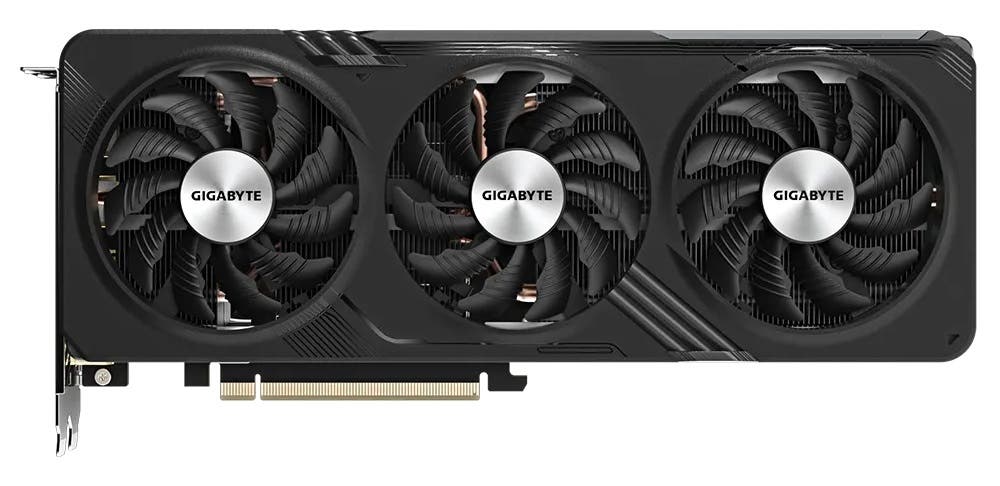

Gigabyte GeForce RTX 4060 Ti GAMING OC 8GB Graphics Card - GV-N406TGAMING OC-8GD
Powered by the NVIDIA Ada Lovelace architecture and comes with 8GB of GDDR6 memory to deliver the ultimate experience for gamers and creators. Propel yourself into the future with Gigabyte.
Features
Features
Brand | Gigabyte |
Model Number | GV-N406TGAMING OC-8GD |
Warranty Support | 3 Years |
Graphics Card Model | NVIDIA RTX 4060 Ti |
DLSS | DLSS 3 |
Interface | PCI Express 4.0 |
GPU Core Clock | 2310 MHz |
GPU Boost Clock | 2580 MHz |
Graphics Card Memory Type | GDDR6 |
Memory Size | 8GB |
Memory Speed | 18GBps |
Outputs | DisplayPort, HDMI |
Maximum Supported Displays | 4 |
Maximum Resolution | 7680 x 4320 |
Colour | Black |
Description
Gigabyte GeForce RTX 4060 Ti GAMING OC 8GB Graphics Card - GV-N406TGAMING OC-8GD
Say hello to the latest in NVIDIA's 40-Series Graphics Cards, with the Gigabyte GeForce RTX 4060 Ti GAMING OC. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 8GB of GDDR6 memory to deliver the ultimate experience for gamers and creators, bringing with it all new streaming multi-processors, 4th Gen Tensor Cores and 3rd Gen RT Cores, allowing you to experience an enormous leap in performance, efficiency and AI-powered graphics. Featuring the renowned Windforce cooling system, comprised of 3x 80mm unique bladed fans with alternate spin technology, screen and 3D active technology cooling to keep all that performance in check. Utilise the incredible RGB fusion technology along with the Gigabyte control center, to customise the subtle lighting to suit your style, plus With dual bios, protective metal backplate and an ultra-durable design you can propel yourself into the future with Gigabyte.
Features
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
Specification
Graphics Processing: GeForce RTX™ 4060 Ti (8GB)
Core Clock: 2580 MHz (Reference card: 2535 MHz)
CUDA® Cores: 4352
Memory Clock: 18 Gbps
Memory Size: 8GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 4.0
Digital max resolution: 7680 x 4320
Multi-view: 4
Card size: L=281 W=117 H=53 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 500W
Power Connectors: 8 pin*1
Output: DisplayPort 1.4a*2, HDMI 2.1a*2
Accessories: Quick guide
