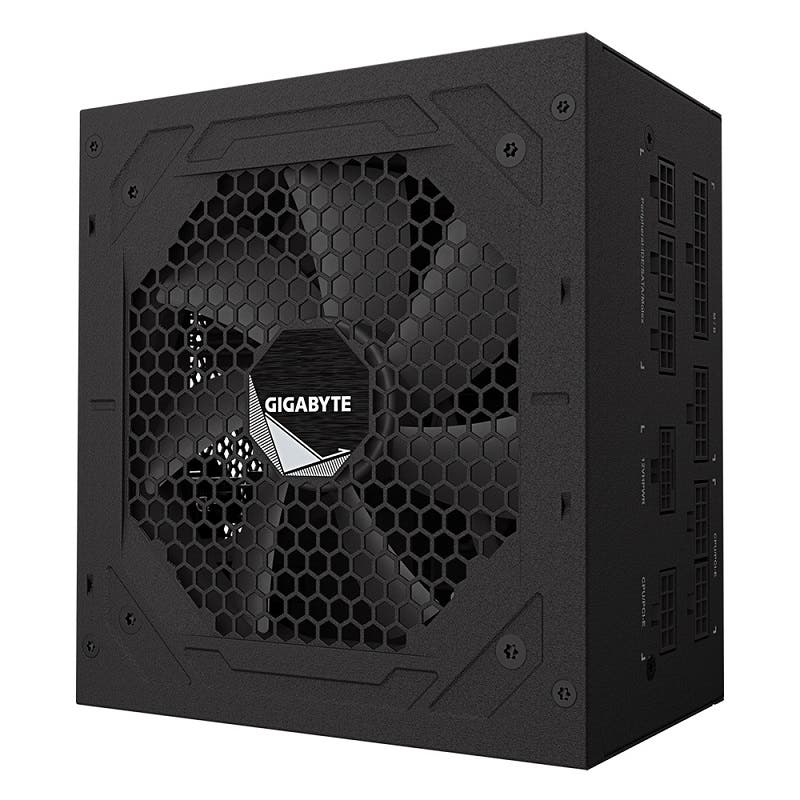

Gigabyte UD1000GM PG5 (rev. 2.0) 1000W PSU 80 PLUS Gold Fully Modular PCIe 5.0 ATX 3.0 Power Supply Unit
Power up your PC with the Gigabyte UD1000GM PG5 1000W 80 PLUS Gold Rated PCIe 5.0 Fully Modular ATX Power Supply. Designed for high efficiency and reliability, this fully modular PSU offers 80 PLUS Gold certification, PCIe 5.0 support, and a range of safety features for a stable and efficient power delivery to your system.
Features


General
SKU | 9CF-F4E-100 |
Features
Brand | Gigabyte |
Model Number | GP-UD1000GM PG5-EU |
Wattage | 1000W |
Efficiency Rating | 80 PLUS Gold |
Modular? | Fully Modular |
PSU Form Factor | ATX |
Colour | Black |
Description
Gigabyte UD1000GM PG5 1000W 80 PLUS Gold Rated PCIe 5.0 Fully Modular ATX Power Supply
GP-UD1000GM PG5-EU
The Gigabyte UD1000GM PG5 1000W 80 PLUS Gold Rated PCIe 5.0 Fully Modular ATX Power Supply is a robust and efficient solution to power your high-performance PC build. With its 80 PLUS Gold certification, this power supply ensures high efficiency, reducing energy waste and keeping your electricity bills low.
Featuring PCIe 5.0 support, it provides ample power for the latest graphics cards, ensuring smooth and stable performance during intense gaming sessions or demanding computing tasks. Its fully modular design allows you to connect only the cables you need, reducing clutter and improving airflow within your PC case for better cooling.
Equipped with advanced safety features such as over-voltage protection, over-power protection, under-voltage protection, and short-circuit protection, this power supply offers reliable and stable power delivery to your components, safeguarding them from potential damage due to electrical issues.
The Gigabyte UD1000GM PG5 power supply is designed with high-quality components and rigorous testing to ensure long-term reliability and durability. It's the perfect choice for enthusiasts and gamers looking for a dependable power solution to fuel their high-performance rigs.
Specification
Model
GP-UD1000GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1000W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
