Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU
The Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU is a high-quality power supply unit designed for optimal performance. With its 80 PLUS Gold certification, modular design, and 1300W power output, it is perfect for gaming PCs and workstations. Upgrade your system with this reliable and efficient PSU today.
Key Features
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm double ball bearing fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
Features

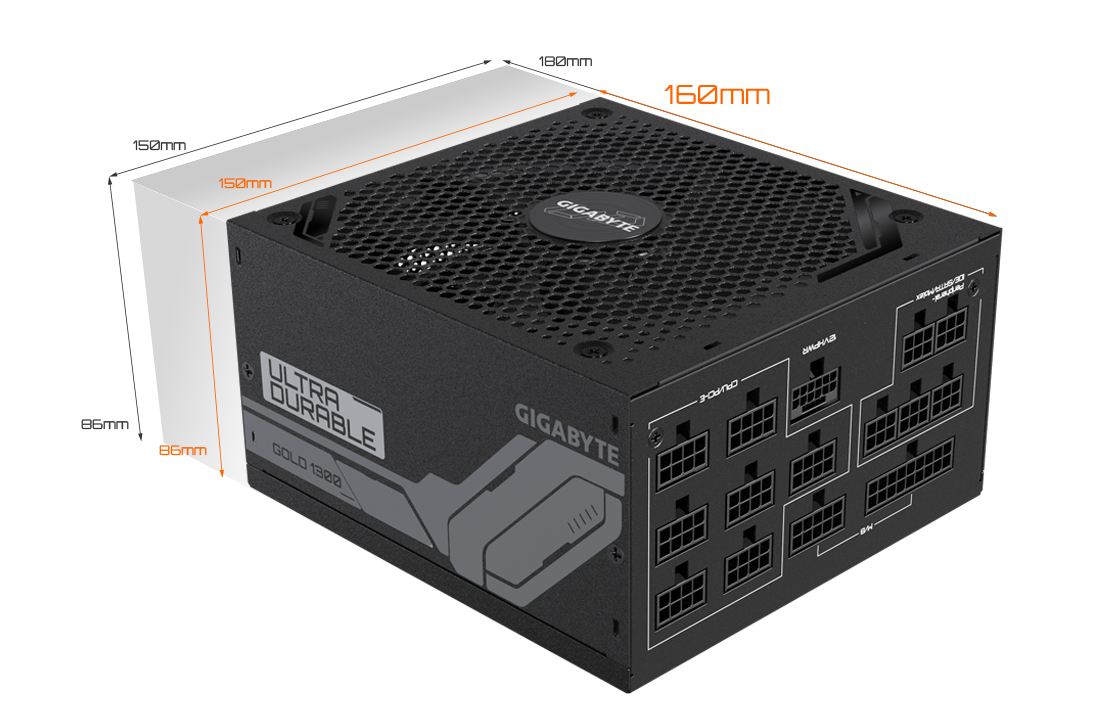

COMPACT DESIGN
Leveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.


General
SKU | A34-57C-D1D |
Features
Brand | Gigabyte |
Model Number | GP-UD1300GM PG5 |
Wattage | 1300W |
Efficiency Rating | 80 Plus Gold |
Modular? | Fully Modular |
PSU Form Factor | ATX |
Colour | Black |
Description
Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU
Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU
Experience unparalleled power and efficiency with the Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU. This cutting-edge power supply unit is designed to deliver top-notch performance for all your computing needs.
Featuring a Gold certification for energy efficiency, this PSU is not only powerful but also eco-friendly. The modular design allows for easy customization and cable management, ensuring a clean and organized build.
With a maximum power output of 1300W, this PSU can handle even the most demanding tasks with ease. Whether you're a hardcore gamer, a content creator, or a professional user, this PSU has got you covered.
Equipped with the latest ATX 3.0 standards, this PSU offers improved performance and stability for your system. Say goodbye to power fluctuations and hello to seamless computing experience.
Upgrade your system with the Gigabyte UD1300GM PG5 1300W ATX 3.0 Gold Certified Modular PSU and take your computing to the next level. Order yours today and unleash the true potential of your PC.

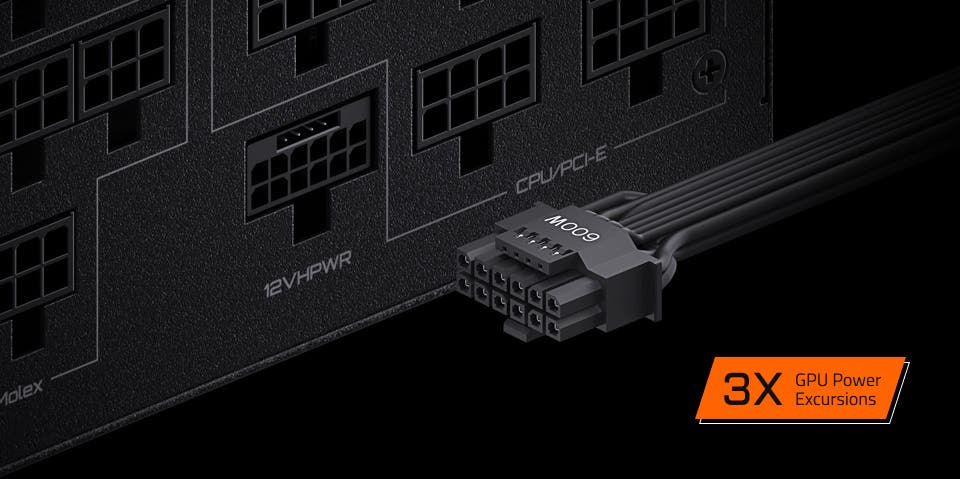

"Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

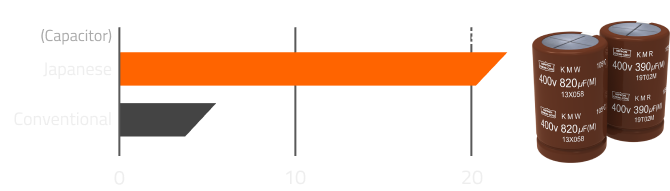

HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

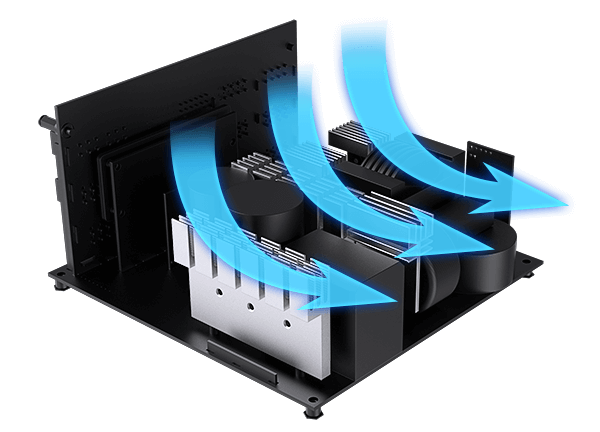

ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.

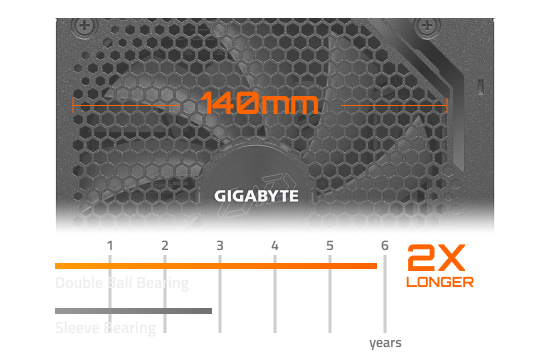

140mm DOUBLE BALL
BEARING FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The double ball bearing fan provides longer and more stable life time.


Specification
Model
GP-UD1300GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1300W
Dimension
150 x 160 x 86 mm
Fan Type
140mm double ball bearing fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
