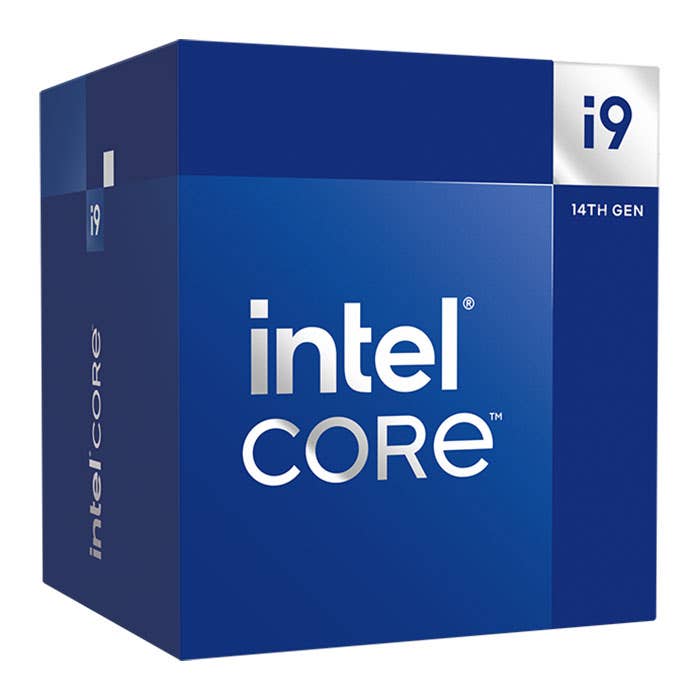

Intel Core i9-14900F Raptor Lake Refresh 24 Core LGA 1700 Processor

CPU Specifications

Total Cores
24

# of Performance-cores
8

# of Efficient-cores
16

Total Threads
32

Max Turbo Frequency
5.8 GHz

Intel® Thermal Velocity Boost Frequency
5.8 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡
5.6 GHz

Performance-core Max Turbo Frequency
5.4 GHz

Efficient-core Max Turbo Frequency
4.3 GHz

Performance-core Base Frequency
2 GHz

Efficient-core Base Frequency
1.5 GHz

Cache
36 MB Intel® Smart Cache

Total L2 Cache
32 MB

Processor Base Power
65 W

Maximum Turbo Power
219 W

Memory Specifications

Max Memory Size (dependent on memory type)
192 GB

Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels
2

Max Memory Bandwidth
89.6 GB/s

Expansion Options

Direct Media Interface (DMI) Revision
4.0

Max # of DMI Lanes
8

Scalability
1S Only

PCI Express Revision
5.0 and 4.0

PCI Express Configurations ‡
Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes
20

Package Specifications

Sockets Supported
FCLGA1700

Max CPU Configuration
1

Thermal Solution Specification
PCG 2020C

TJUNCTION
100°C

Package Size
45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator
3.0

Intel® Thread Director
Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Yes

Intel® Speed Shift Technology
Yes

Intel® Adaptive Boost Technology
Yes

Intel® Thermal Velocity Boost
Yes

Intel® Turbo Boost Max Technology 3.0 ‡
Yes

Intel® Turbo Boost Technology ‡
2.0

Intel® Hyper-Threading Technology ‡
Yes

Intel® 64 ‡
Yes

Instruction Set
64-bit

Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States
Yes

Enhanced Intel SpeedStep® Technology
Yes

Thermal Monitoring Technologies
Yes

Intel® Volume Management Device (VMD)
Yes

Security & Reliability

Intel® Standard Manageability (ISM) ‡
Yes

Intel® Control-Flow Enforcement Technology
Yes

Intel® AES New Instructions
Yes

Secure Key
Yes

Intel® OS Guard
Yes

Execute Disable Bit ‡
Yes

Intel® Boot Guard
Yes

Mode-based Execute Control (MBEC)
Yes

Intel® Virtualization Technology (VT-x) ‡
Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes

Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
