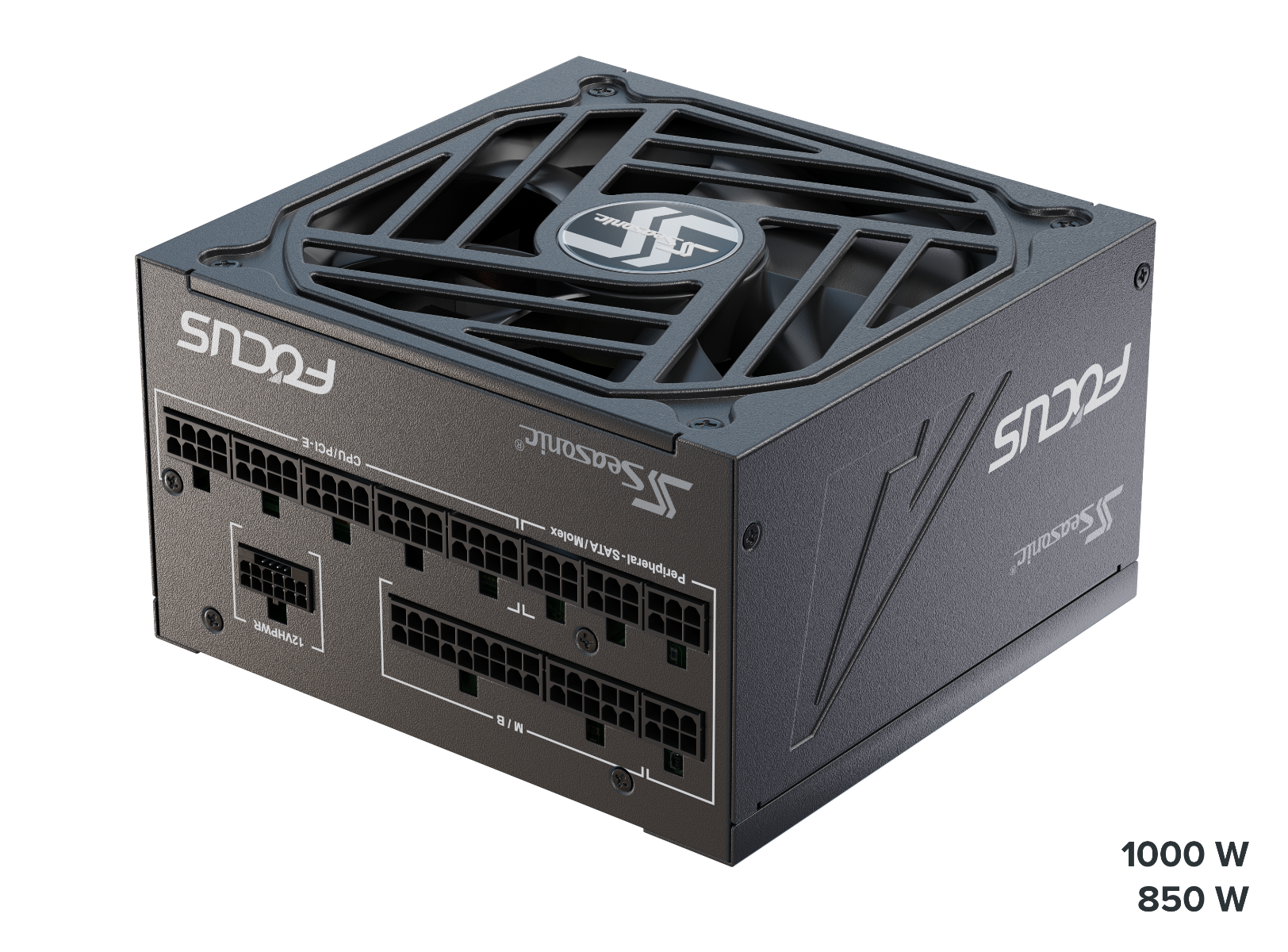

Seasonic FOCUS GX-850 Fully Modular 80 Plus Gold PCIe 5.0 / ATX 3.0 Power Supply
Experience top-tier power supply performance with the Seasonic FOCUS GX-850 Fully Modular PSU. This 80 Plus Gold-certified unit boasts PCIe 5.0 and ATX 3.0 compatibility, ensuring optimal power delivery and efficiency. Fully modular for easy cable management, it's a reliable choice for high-performance PC builds
£134.95
£112.46
SKU
F1F-521-EFA
Out of stock
Features
Description
Specification
Features
General
| SKU | F1F-521-EFA |
Features
| Brand | Seasonic |
| Model Number | FOCUS-GX-850-ATX30 |
| Wattage | 850W |
| Efficiency Rating | 80 Plus Gold |
| Modular? | Yes |
| PSU Form Factor | ATX |
| Colour | Black |
Description
The Seasonic FOCUS GX-850 Fully Modular PSU sets a new standard for power supply performance. Certified 80 PLUS Gold, it achieves an exceptional 90% efficiency at 50% system load, ensuring power efficiency and reduced operating costs.
Designed to meet the latest ATX 3.0 and PCIe 5.0 standards, this PSU offers compatibility with cutting-edge components, providing optimal power delivery for high-performance PC builds.
Its fully modular design allows for effortless cable management, ensuring a clean build and improved airflow within the system. Backed by a 10-year warranty, it guarantees reliability and long-term performance.
Seasonic's Digital Hybrid Fan Control sets it apart, offering three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. This innovative technology balances between silence and cooling, optimizing heat dissipation while reducing noise levels. The benefits are clear: reduced noise without compromising temperature, extended fan lifespan, and exceptional silent performance.
Utilizing Fluid Dynamic Bearing (FDB) fans, this PSU ensures reliability and minimal operating noise. The high-performance FDB fans benefit from oil impact absorbance, generating less heat and noise than traditional ball bearing fans. The result? Reduced friction, vibration, and overall power consumption, while significantly extending the fan's lifespan.
The FOCUS GX-850 is more than just a power supply; it's a technological marvel that ensures optimal performance, reliability, and quieter operation, making it an ideal choice for high-performance PC systems.
Specification
80PLUS®: Gold
Cybenetics Efficiency Level: TBA
Cybenetics Noise Level: TBA
Form Factor: Intel ATX 12 V
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information
Fan Size: 135 mm
Fan Control: S3FC - Fanless until 30 % load
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information
Modularity: Fully Modular
Cable type: Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature: 0 - 50 °C
MTBF @ 25 °C, excl. fan: 100,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty: 10 Years
Power Output
AC Input:
Voltage: 100 V - 240 V
Current: 12 - 6 A
Frequency: 50 Hz - 60 Hz
DC Output:
Rail: +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power: 20 A 20 A 70 A 0.3 A 3 A
100 W 840 W 3.6 W 15 W
Total continuous power: 850 W
Cables
Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included
MB (24/20 pins) 1 610 1
CPU (8/4 pins) 1 700 2
PCIe (8/6 pins) 2 750 0
PCIe (8/6 pins) 1 750 3
SATA 4 950 2
SATA 4 860 0
SATA 4 760 0
SATA 3.3 V 2 550 1
SATA 2 570 0
SATA 2 470 0
SATA 2 450 0
Molex 3 690 1
Molex 2 470 0
12VHPWR 1 (12+4 Pins to 12+4 Pins) 750 1
