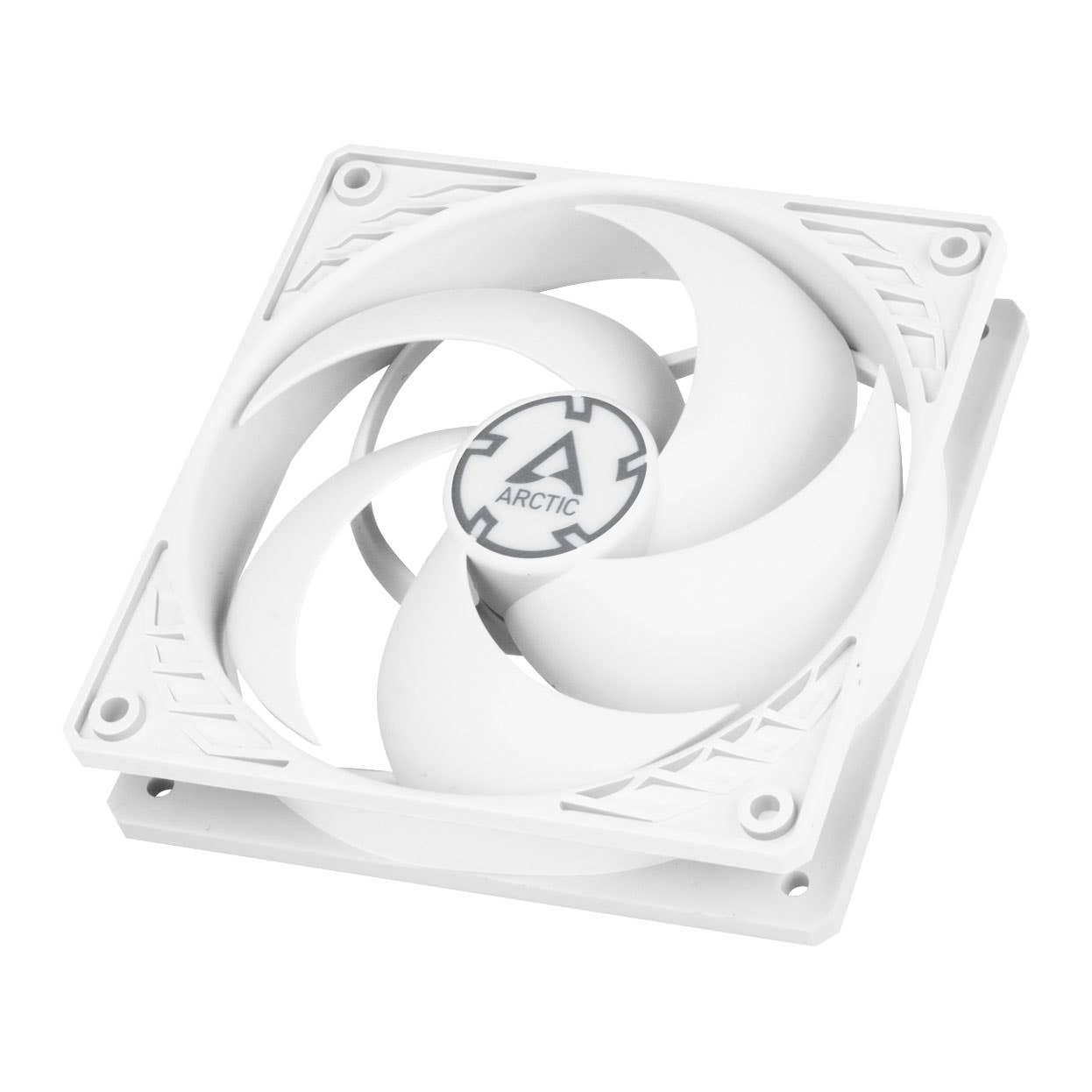

Arctic P12 12cm Pressure Optimised PWM PST Case Fan, Fluid Dynamic, 200-1800 RPM, White - ACFAN00170A
Features


General
SKU | D0E-9A4-7BB |
Features
Brand | Arctic |
Model Number | ACFAN00170A |
Colour | White |
Description
Arctic P12 12cm Pressure Optimised PWM PST Case Fan, Fluid Dynamic, 200-1800 RPM, White - ACFAN00170A
The Arctic P12 12cm Pressure Optimized PWM PST Case Fan is the ideal solution for enhancing your PC's cooling performance. Equipped with fluid dynamic bearings, this fan ensures smooth and efficient airflow, contributing to improved heat dissipation and component longevity. With a wide speed range of 200 to 1800 RPM, it offers flexibility to adjust the fan speed according to your system's cooling needs, whether you're engaging in intensive gaming sessions or performing less demanding tasks.
Designed for optimized pressure, the P12 fan is particularly effective in scenarios where airflow obstruction is prevalent, such as when mounted on radiators or heat sinks. This makes it an excellent choice for maintaining optimal temperatures in high-performance systems.
Thanks to its PWM (Pulse Width Modulation) control, the fan speed can be dynamically adjusted based on temperature changes, ensuring efficient cooling while keeping noise levels to a minimum. Additionally, the PST (PWM Sharing Technology) feature allows you to connect multiple fans to a single PWM header on your motherboard, simplifying cable management and providing synchronized control over all connected fans.
Not only does the Arctic P12 fan deliver exceptional performance, but it also boasts a stylish white color that adds a modern and clean aesthetic to your PC build. Whether you're a casual user, enthusiast, or overclocker, this fan is a reliable and versatile choice for improving your system's cooling efficiency while maintaining a quiet operation.
Specification
Performance
Fan Speed: 200—1800 rpm PWM Controlled (0 rpm below 5 % PWM)
Airflow: 56.30 cfm | 95.70 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0—40 °C
Warranty: 6 years
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.1 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 145 g
