Asus ProArt Z790-CREATOR WIFI Intel DDR5 PCIe 5.0 ATX Motherboard - LGA 1700

The ProArt Z790-Creator WiFi manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.

Free Delivery Available

Special Price £539.99 £449.99 was £558.99

SKU

B27-5BB-DE7

In stock

ExpressVPN Exclusive 90-day Free Trial

Qty

Features

Description

Specification

Delivery

Reviews

Features

Features

Brand	Asus
Model Number	ProArt Z790-CREATOR WIFI
Warranty Support	3 Years
Motherboard Chipset	Z790 Chipset (LGA 1700)
CPU Socket Type	LGA 1700
Memory Type	DDR5
Outputs	DisplayPort, HDMI
Form Factor	ATX
Key Features	- PCIe 5.0® slots for graphics cards and storage - Unleash DDR5 with AEMP II - Two Thunderbolt™ 4 ports (USB4® Compliant) - 10Gb & 2.5 Gb Ethernet, WiFi 6E - 16+1 teamed power solution rated for 70A per stage - AI Overclocking - AI Cooling II - ProArt Creator Hub

Description

Asus ProArt Z790-CREATOR WIFI Intel DDR5 PCIe 5.0 ATX Motherboard - LGA 1700

The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel® Core™ processors with 16+1 teamed power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including Thunderbolt™ 4 (USB4® compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E. It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches.

Thunderbolt™ 4 ports (USB4® compliant)
Get immersed in your creations with two Thunderbolt™ 4 ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the Thunderbolt 4 port.

WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

Trusted Stability
ProArt Z790-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Specification

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® Z790 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics
1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort*** and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support 8K@60Hz as specified in DisplayPort 1.4.
**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
Intel® 13th & 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
Intel® Z790 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
8 x SATA 6Gb/s ports**
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.

Ethernet
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 8 ports)
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

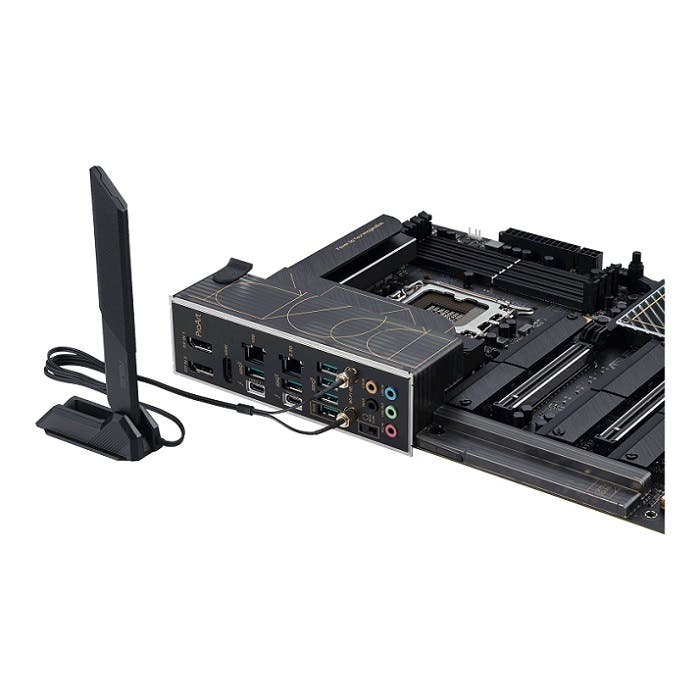

Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
2 x DisplayPort (Input only)
1 x HDMI® port
1 x ASUS Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Box Headers
- ProCool II
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)

Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4 with AI Cooling II
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
MyAsus
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
