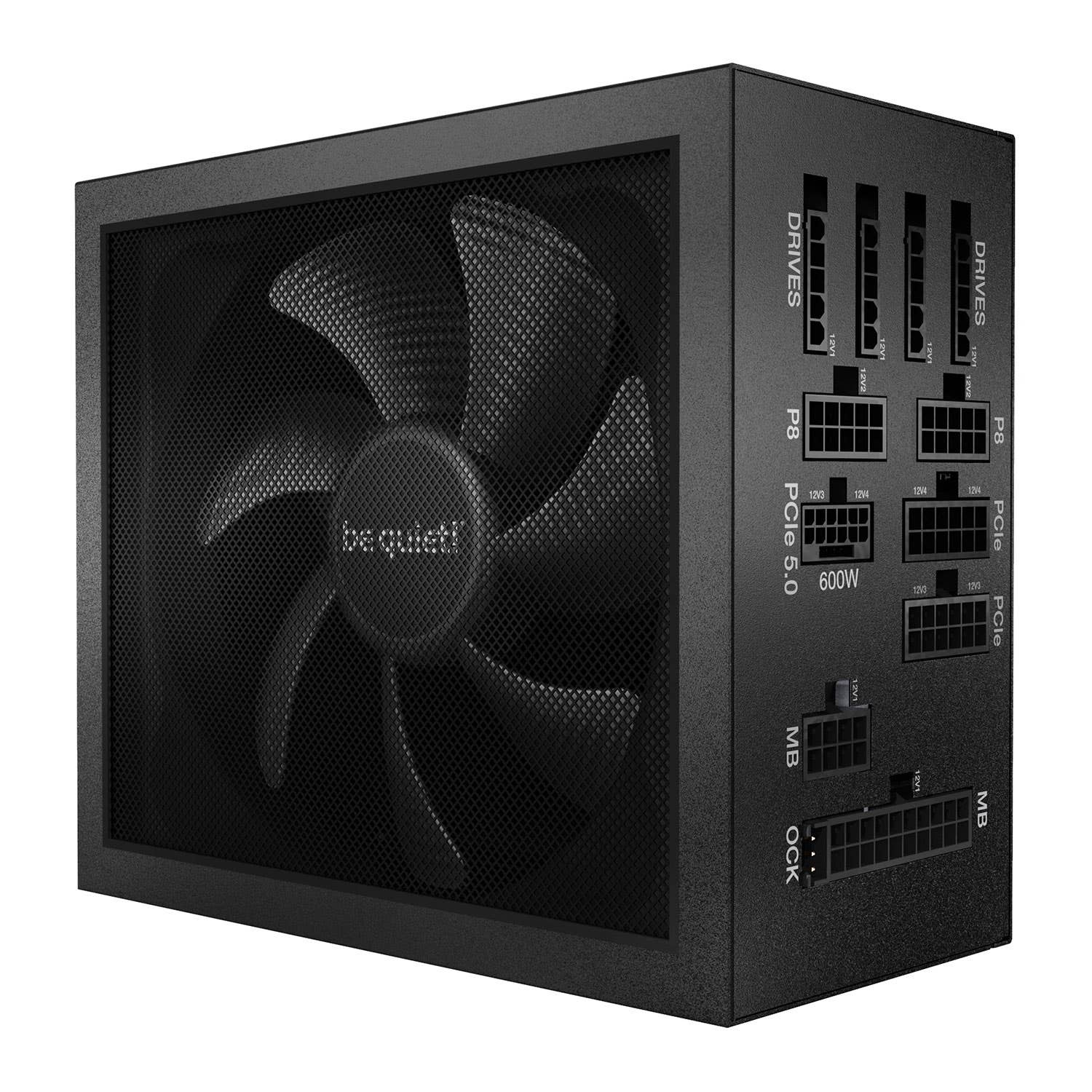

be quiet! Dark Power 13 850 Watt Fully Modular 80+ Titanium ATX 3.0 PSU/Power Supply - BN334
The be quiet! Dark Power 13 850W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
Features


General
SKU | 297-5FD-91A |
Features
Brand | Be Quiet |
Model Number | BN334 |
Key Features |
|
Description
850W DARK POWER 13 80 PLUS TITANIUM PSU from be quiet!
FUTURE-PROOF YOUR SYSTEM
Dark Power 13 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
80 PLUS® TITANIUM CERTIFIED
Dark Power 13 850W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.4% (50% load). This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.13 watts.
FOR MASSIVE TRANSIENT LOADS
Dark Power 13 offers 850W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Specification
Form Factor
ATX 3.0
Edition
DARK POWER 13
Wattage
850 W
80 PLUS Certification
80 PLUS Titanium
Max. Efficiency (at 230Vac)
95.4 %
Cooling
Fan
Fans
1 x 135mm
Rail 1 +12V
30 A
Rail 2 +12V
30 A
Rail 3 +12V
35 A
Rail 4 +12V
35 A
Rail 5 +12V
N/A
Rail 6 +12V
N/A
Max. Combined Output +12V
70.8 A
Modular
Yes
Modularity
Full Modular
SLI/CrossFire
Yes
EPS 12V
Yes
Motherboard Connector
20+4-pin
Connectors
1 x 12-pin PCIe
1 x 4+4-pin CPU +12V (EPS)
3 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin CPU +12V (EPS)
13 x SATA
Dimensions
150 x 86 x 175 (WxHxD)
