Cooler Master MB520 Mesh White ATX Tempered Glass Gaming PC Case - MB520-WGNN-S00
REACHING NEW BRIGHTS!
Features
General
SKU | 223-78F-A22 |
Features
Brand | Cooler Master |
Model Number | MB520-WGNN-S00 |
Colour | White |
Description
Cooler Master MB520 Mesh White ATX Tempered Glass Gaming PC Case - MB520-WGNN-S00
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.

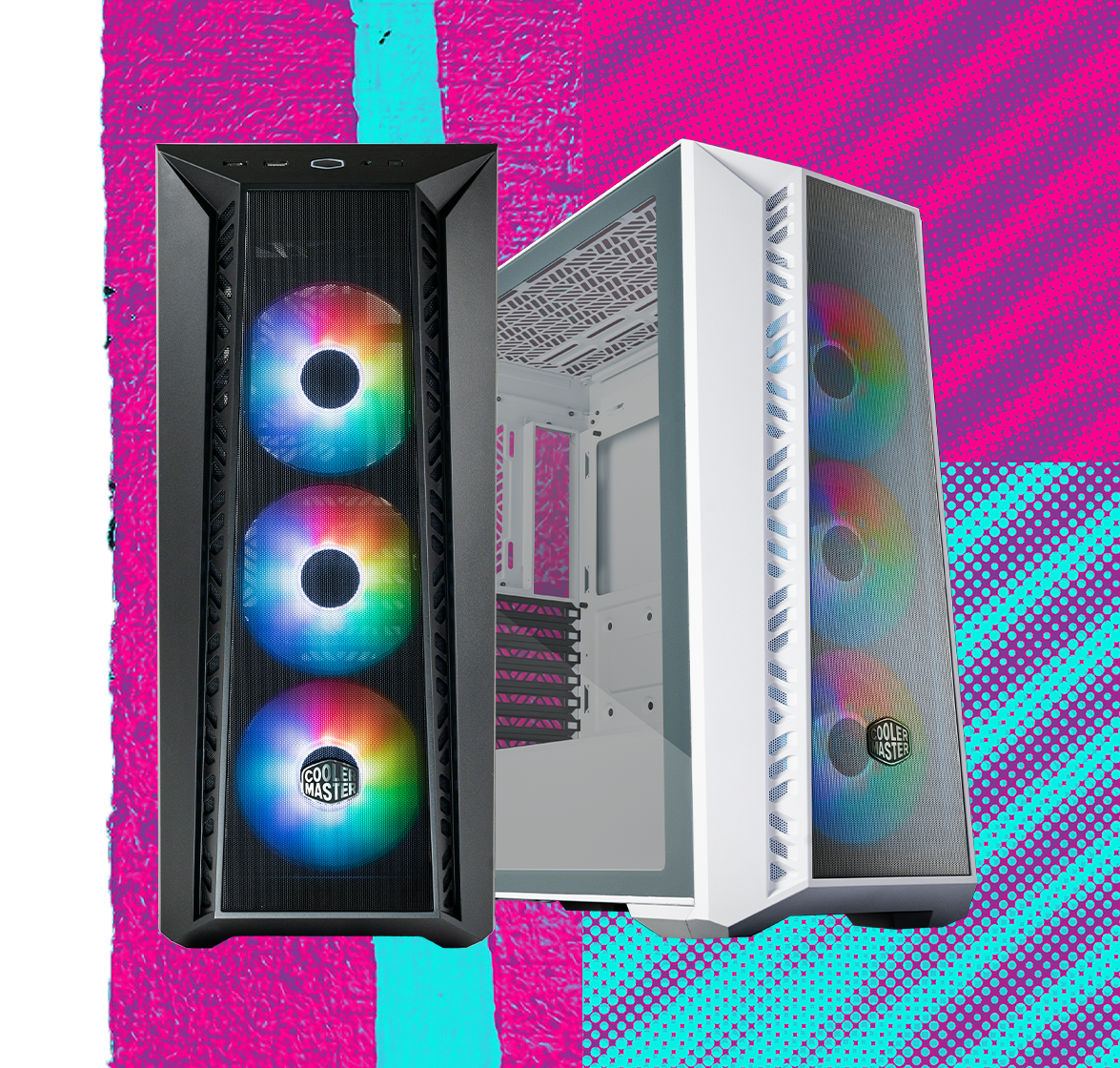

AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
MasterBox 520 Mesh is available in both black and white so you can choose the color that best matches your setup!

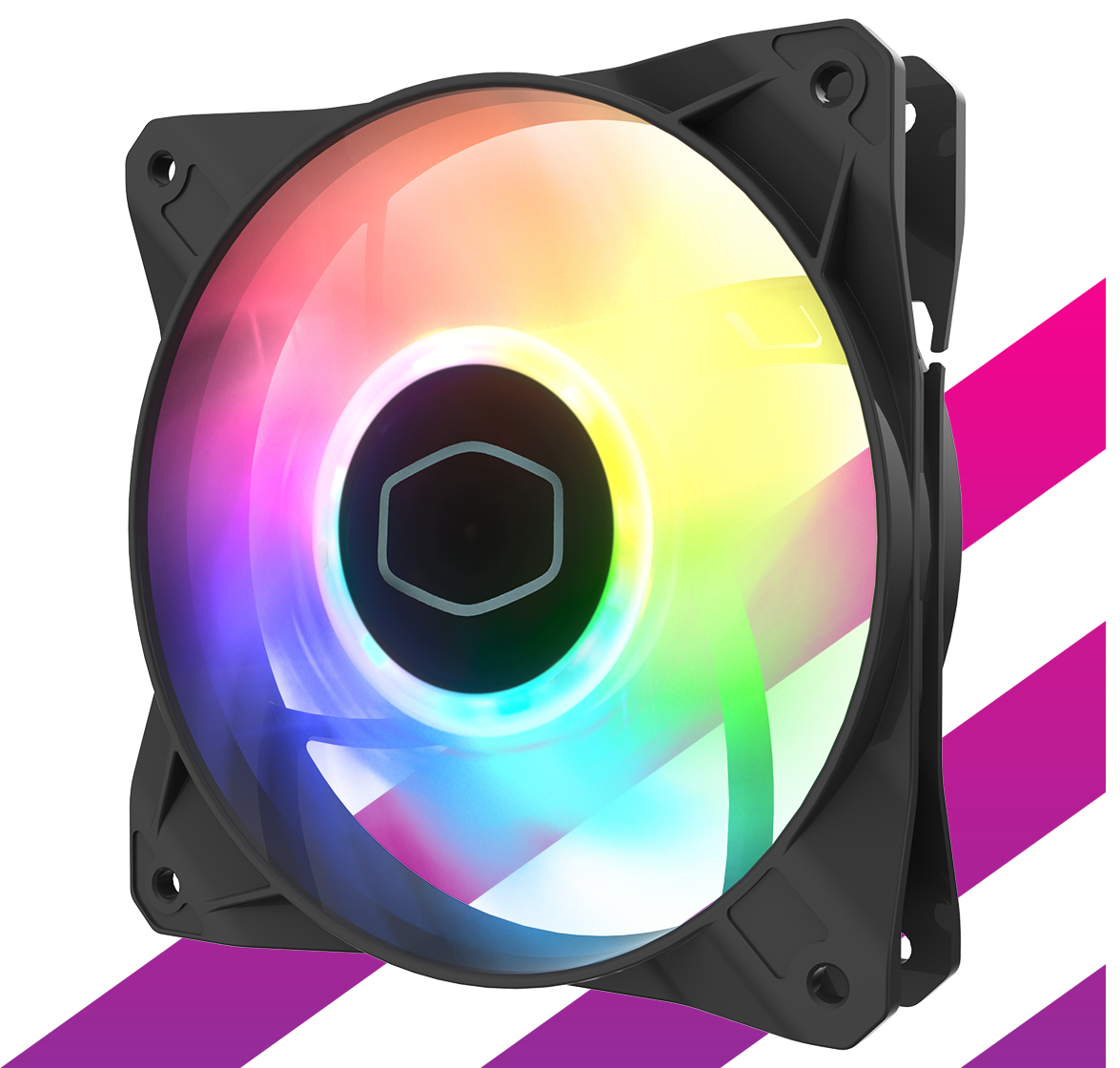

THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

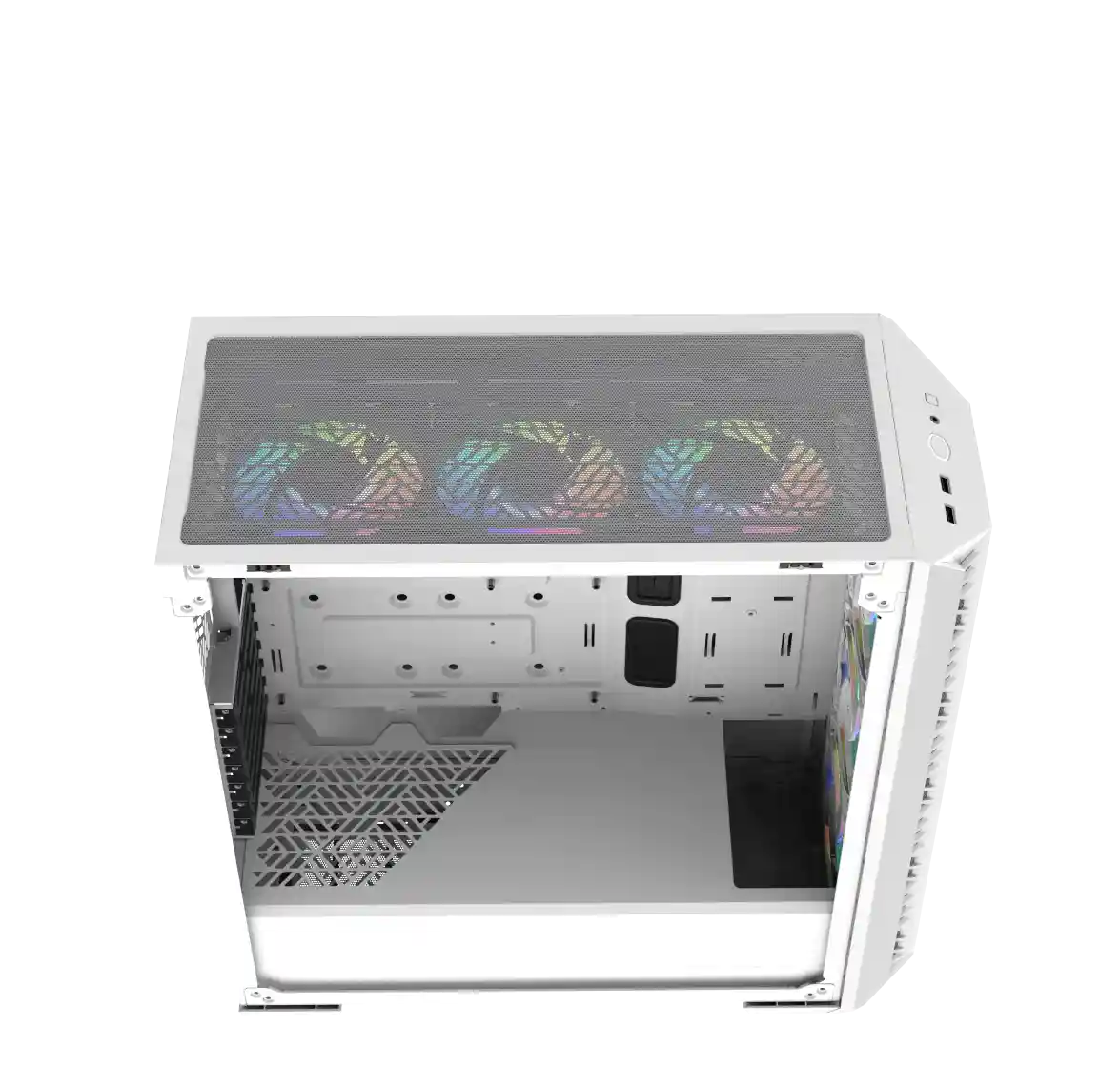

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.

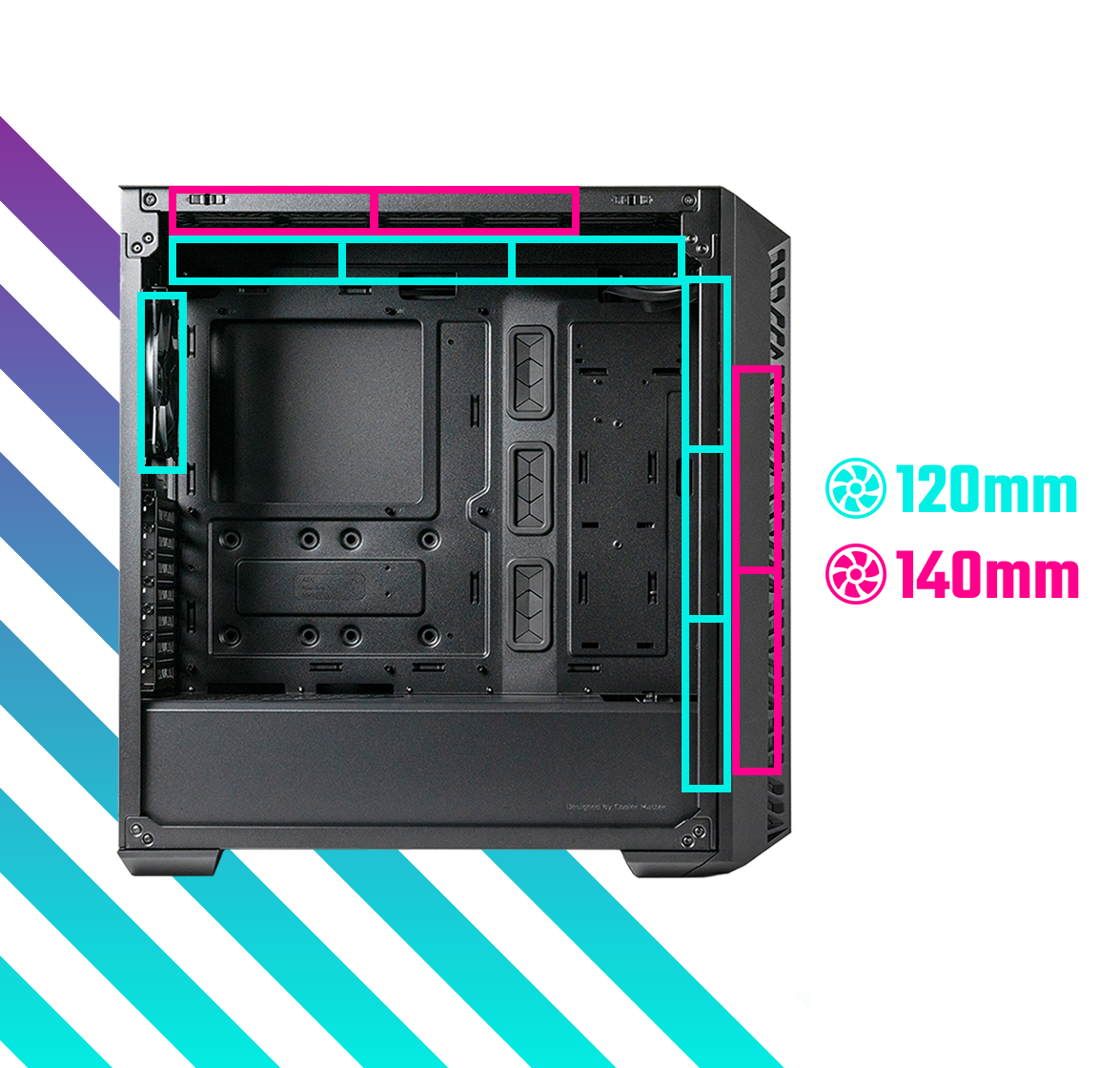

VERSATILE COOLING OPTIONS
Supports up to seven 120mm fans and dual 360mm radiators on the top and front panel.

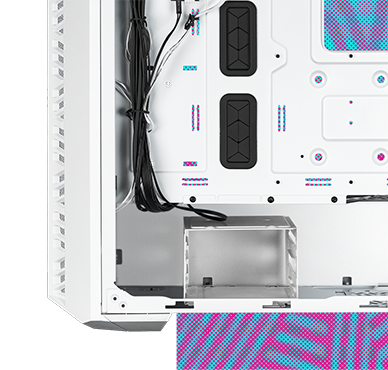

(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.

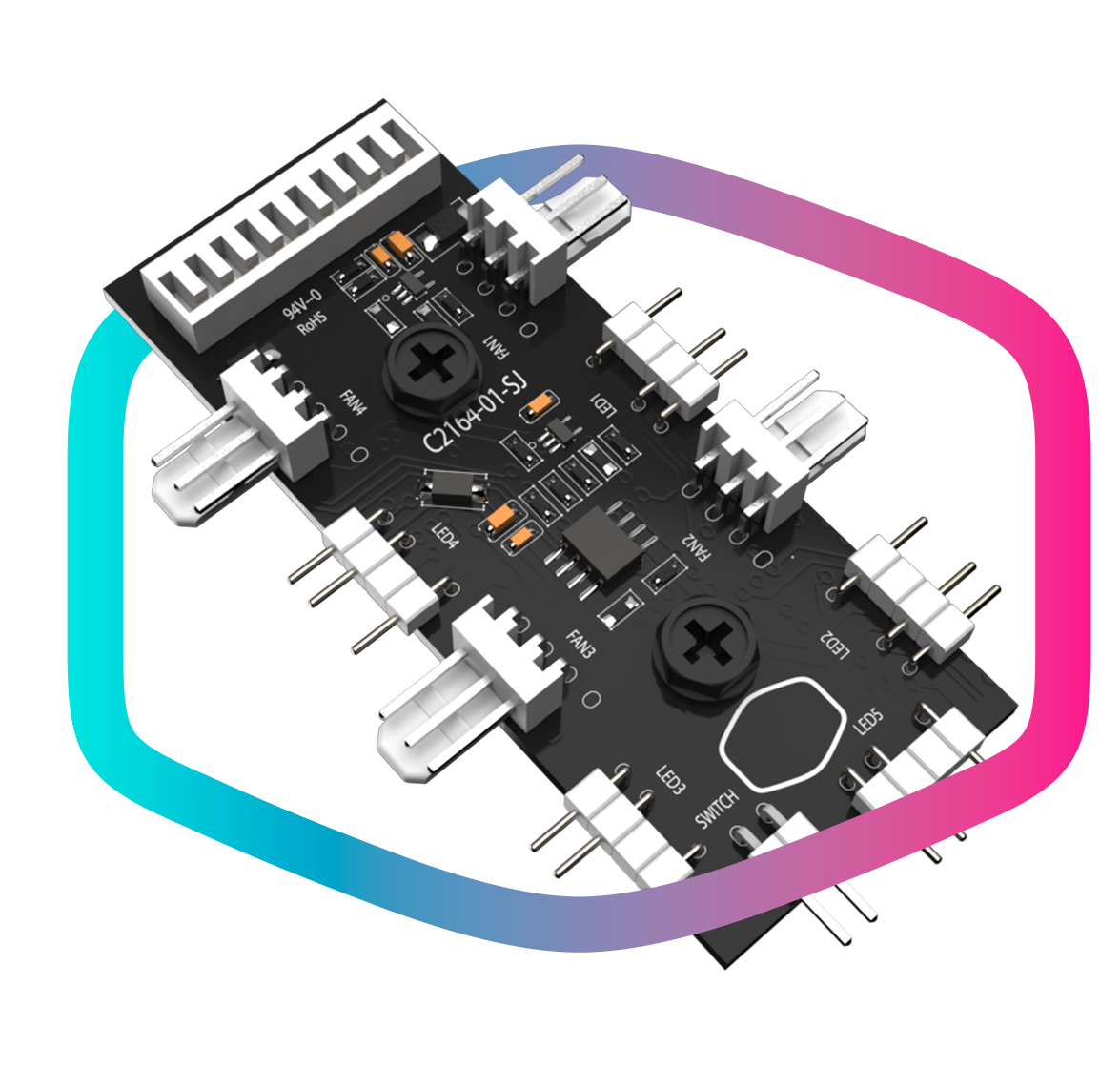

ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

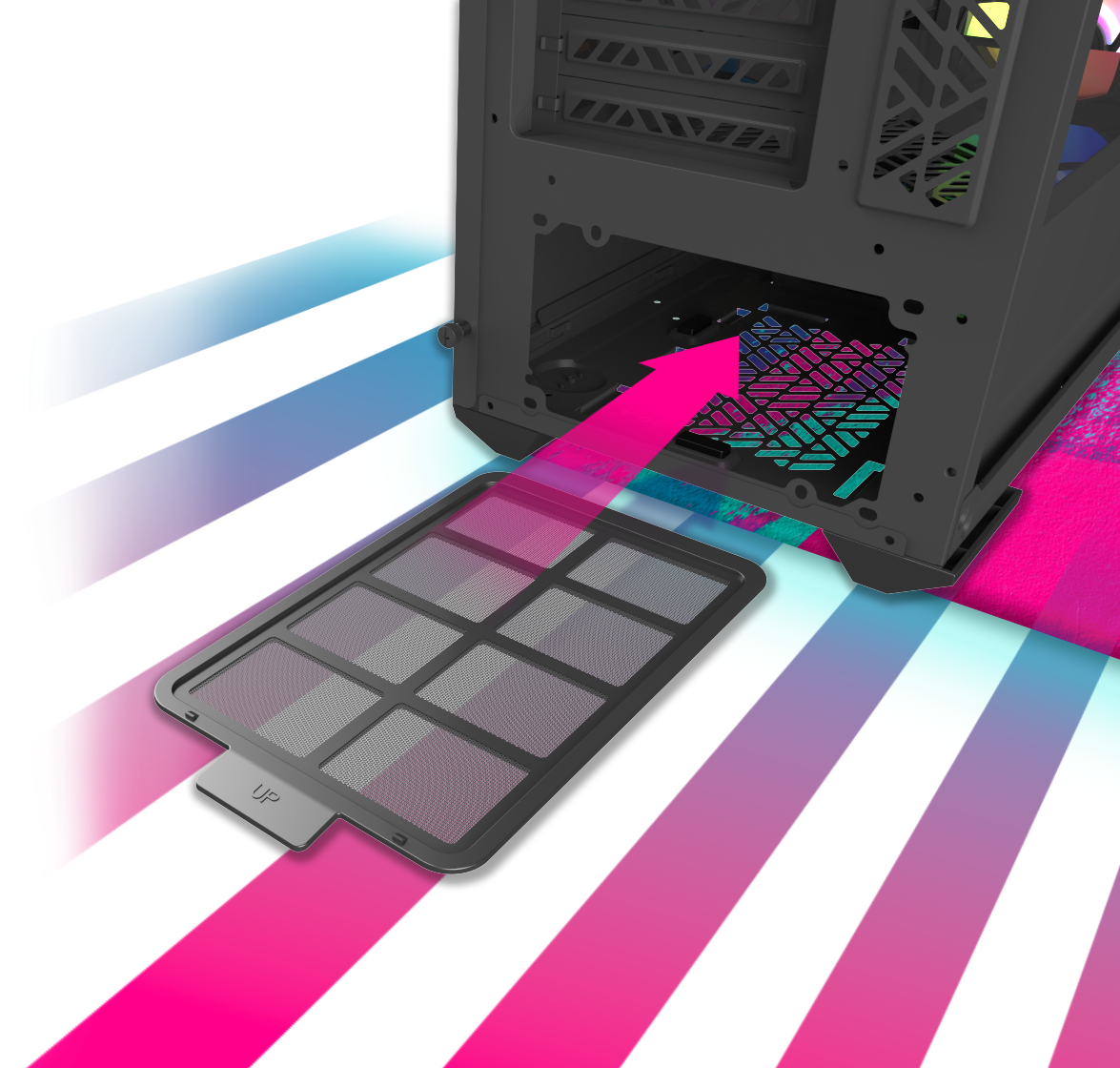

UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.

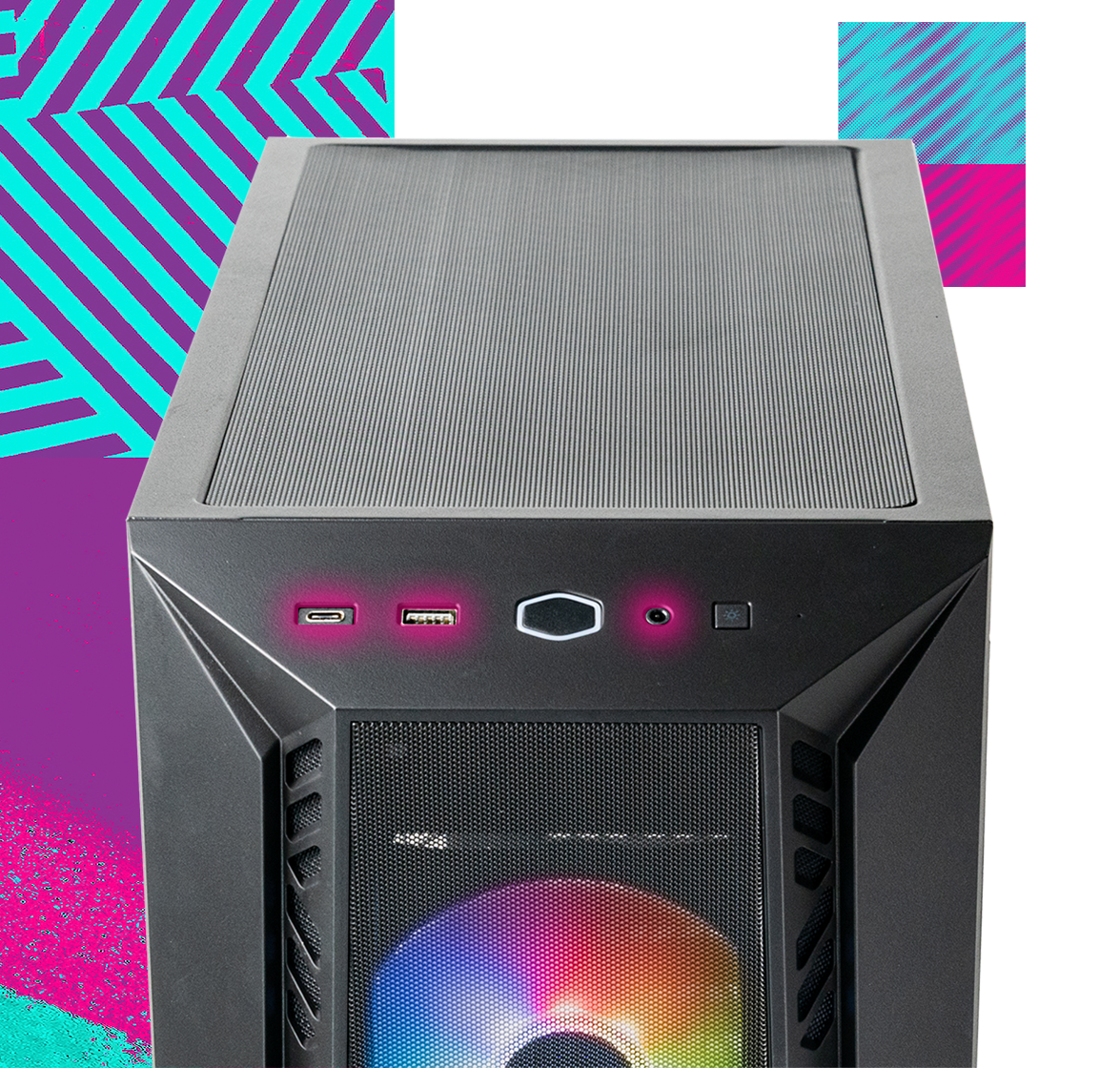

RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.

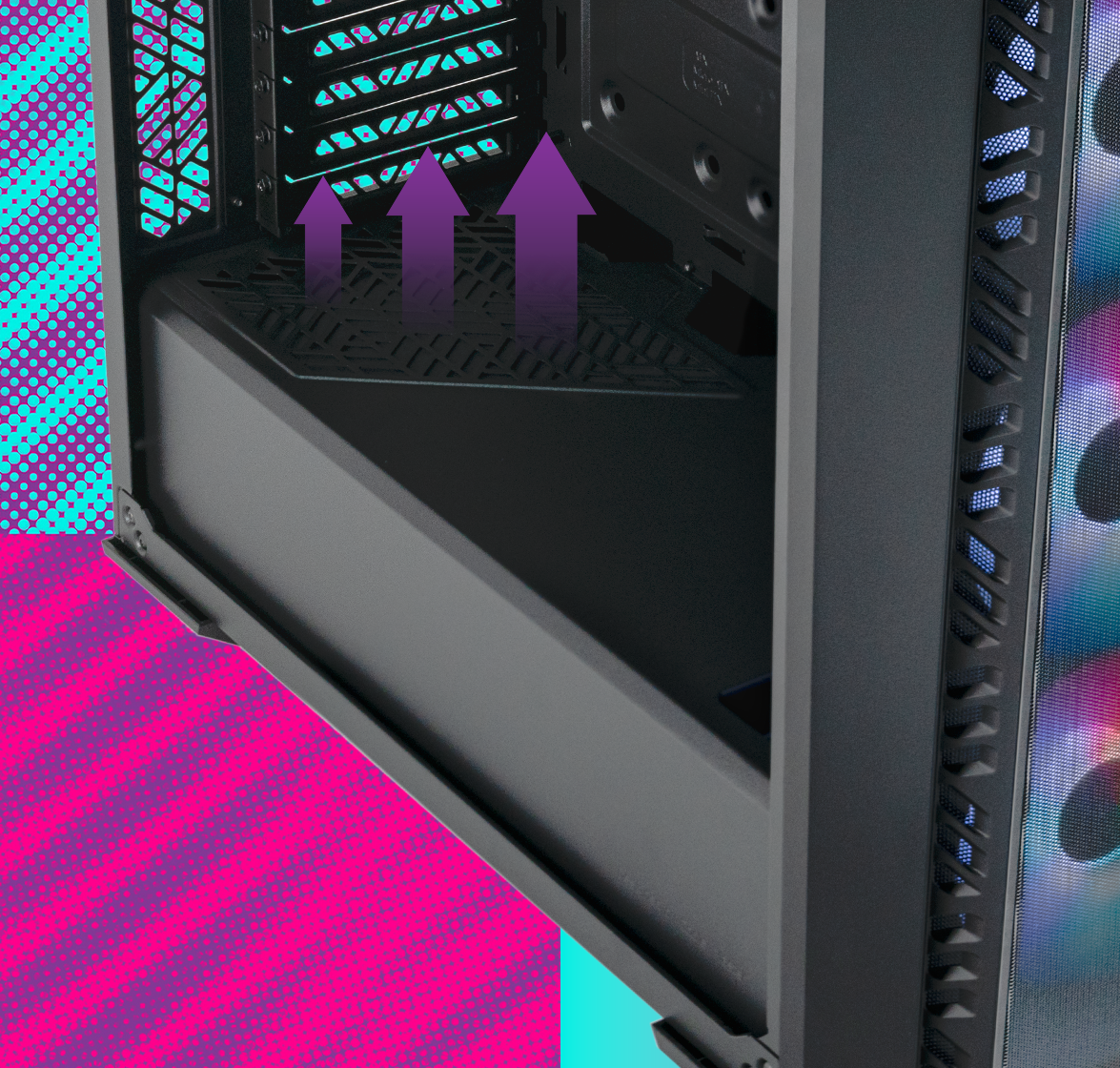

BREATHABLE POWER SUPPLY SHROUD
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.

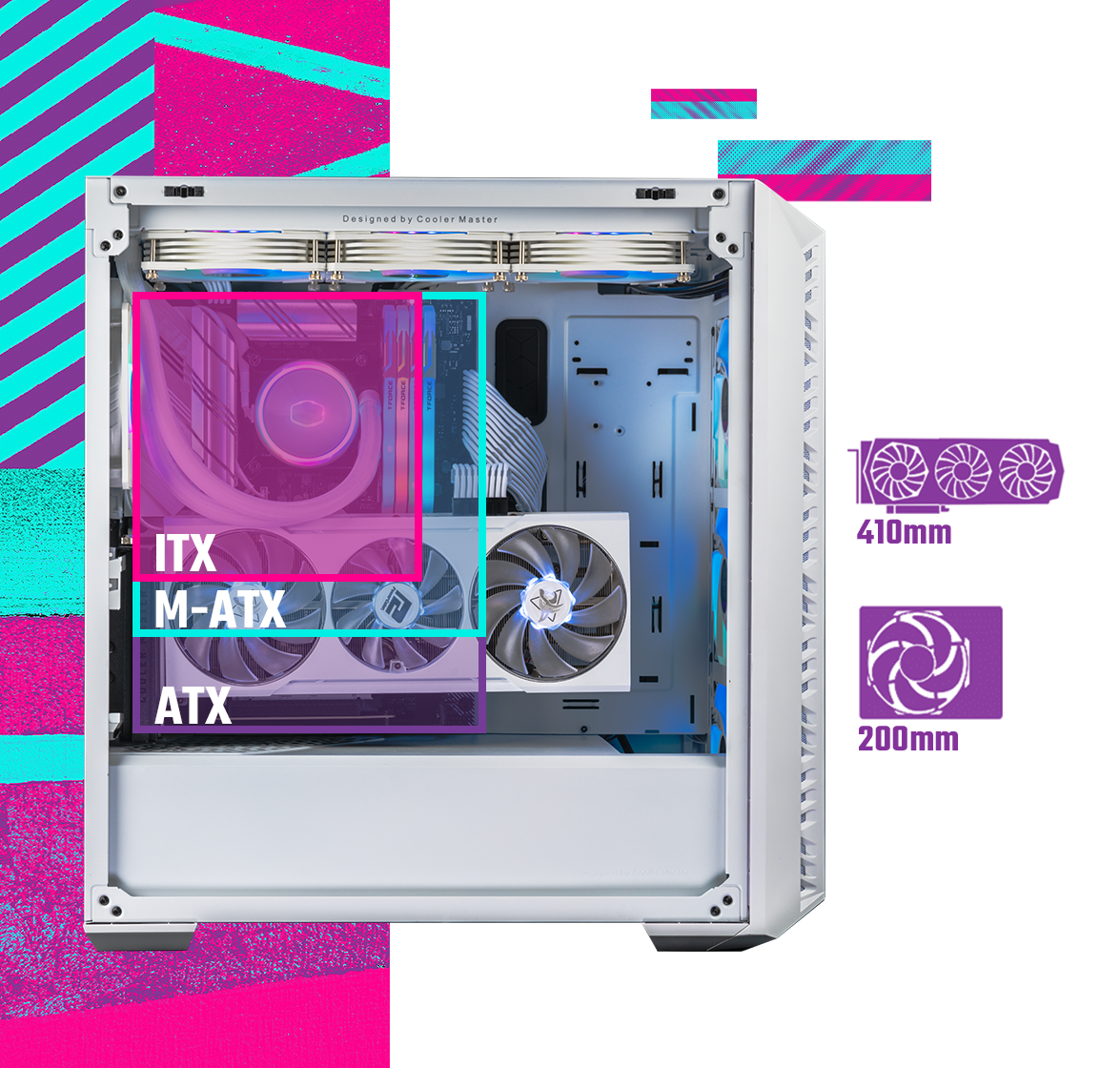

HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
Specification
Model Number
MB520-WGNN-S00
Exterior Color
White
Materials - Exterior
Mesh, Steel, ABS Plastic, Tempered Glass
Materials - Left Side Panel
Tempered Glass
Dimensions (L x W x H)
502 x 210 x 498mm (Incl. Protrusions), 443 x 210 x 498mm (Body Size)
Volume
50L
Motherboard Support
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots
7
3.5" Drive Bays
2
2.5" Drive Bays
3
I/O Panel
1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Included Accessories
ARGB Fan Hub
Pre-installed Fans - Front
3x CF120 ARGB
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Front
3x 120mm, 2x 140mm
Fan Support - Rear
1x 120mm
Radiator Support - Top
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support - Front
120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Rear
120mm
Clearance - CPU Cooler
165mm/6.49"
Clearance - PSU
200mm, (Recommended up to 170mm)
Clearance - GFX
410mm/16.1"
Dust Filters
Bottom, Front, Top
Power Supply Support
ATX
Warranty
2 years
Series
MasterBox Series
Size
Mid Tower
