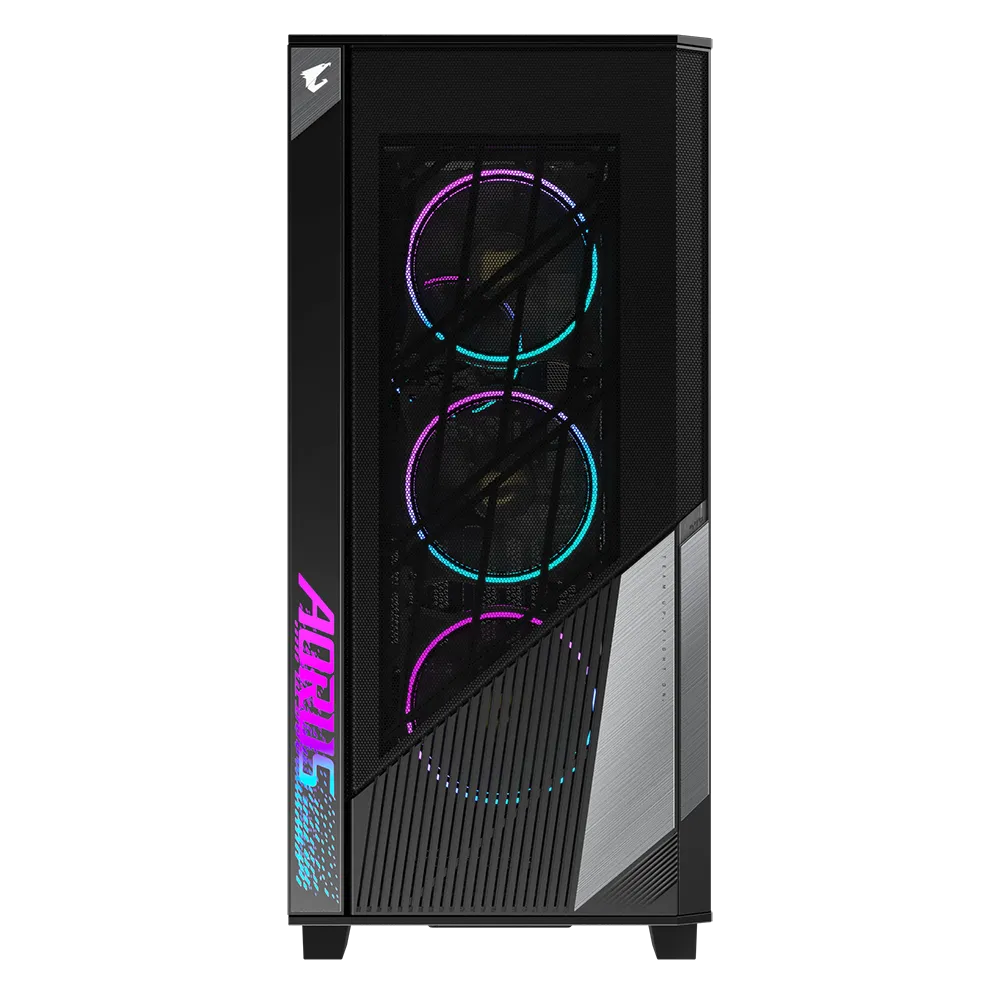

The AORUS C500 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow with premium aesthetics.
The large interior offers extra space that allows users to add 3 more 120mm fans on top of the space that houses the triple 120mm fans in both the front and roof position along with a radiator.
| SKU | A45-02C-14C |
| Brand | Gigabyte |
| Model Number | GB-AC500G ST |
| Colour | Black |
| Key Features |
|
AORUS C500 GLASS
AX COMPATIABILITY
The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.
CABLE MANAGEMENT LIKE A PRO
A series of grooves and cutouts are located behind the board and along the case edges for smart and tidy cable management, which can shorten your building time.
TEMPERED GLASS PANEL WITH ANTI-DROPPING DESIGN
The 4mm tempered glass side panel is thoughtfully designed to be removed by tilting out the top first to prevent accidental drops. The non-drilled design further improves the glass panel's strength and safety.
VERSATILE FRONT I/O. REAL 11 CORE CABLE.
The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
*The type of RGB lighting effect depends on the MB support.
ARGB & PWM CONNECTOR HUB
The built-in ARGB and PWM connector hub is equipped with 5x 5V 3-pin and 5x PWM connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.
Case Form Factor
Mid Tower
M/B Type
Mini ITX / Micro ATX / ATX / E-ATX
Color
Black
Materials
Steel, Plastic, Glass
Dimensions
H=548 W=250 D=482 mm (Within ± 1% error)
Expansion slots
8 + 3 (Requires PCIE Riser Cable)
5.25" Drive Bays
None
3.5“/2.5” Drive Bays
2
2.5" Drive Bays
2
I/O Panel
USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out
(supports AC97 /HD Audio)
Pre-installed Fan
Front : 120mm x3 (ARGB & PWM)
Rear : 120mm x1 (ARGB & PWM)
Fan Support
Front : 120mm x3 / 140mm x3
Top : 120mm x3 / 140mm x2
Rear : 120mm x1 / 140mm x1
Radiator Support
Front : Max 420mm
Top : Max 360mm
Rear : 140mm
Power Supply Type
Standard ATX (Not included)
Maximum Compatibility
CPU Height : 190mm
GPU Length : 420mm
PSU Length : 220mm
Vertical GPU Mount
Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)
Dust Filters
Top, Front, Bottom
RGB Lighting
Yes (Support RGB Fusion 2.0)
Weight
N.W. 13.4 Kg
Package Dimensions
H=594 W=336 D=584 mm
Accessories
1. Manual
2. Accessories kit
