Gigabyte Z890 AORUS XTREME AI TOP WIFI Intel DDR5 PCIE 5.0 LGA 1851 ATX Motherboard

Experience cutting-edge performance with the Gigabyte Z890 AORUS XTREME AI TOP WIFI motherboard, designed for Intel's LGA 1851 processors. This high-end ATX board supports DDR5 and PCIe 5.0, ensuring lightning-fast data transfer and exceptional multitasking. Optimize your gaming and productivity setup with advanced cooling solutions and robust connectivity options.

Free Delivery Available

Coming Soon

SKU

B62-FC9-910

Coming Soon

Features

Description

Specification

Features

General

SKU	B62-FC9-910

Features

Brand	Gigabyte
Model Number	Z890 A XTREME AI TOP
Chipset	LGA 1851
Memory Capacity	192GB
Operating System	Windows 11
Colour	Black

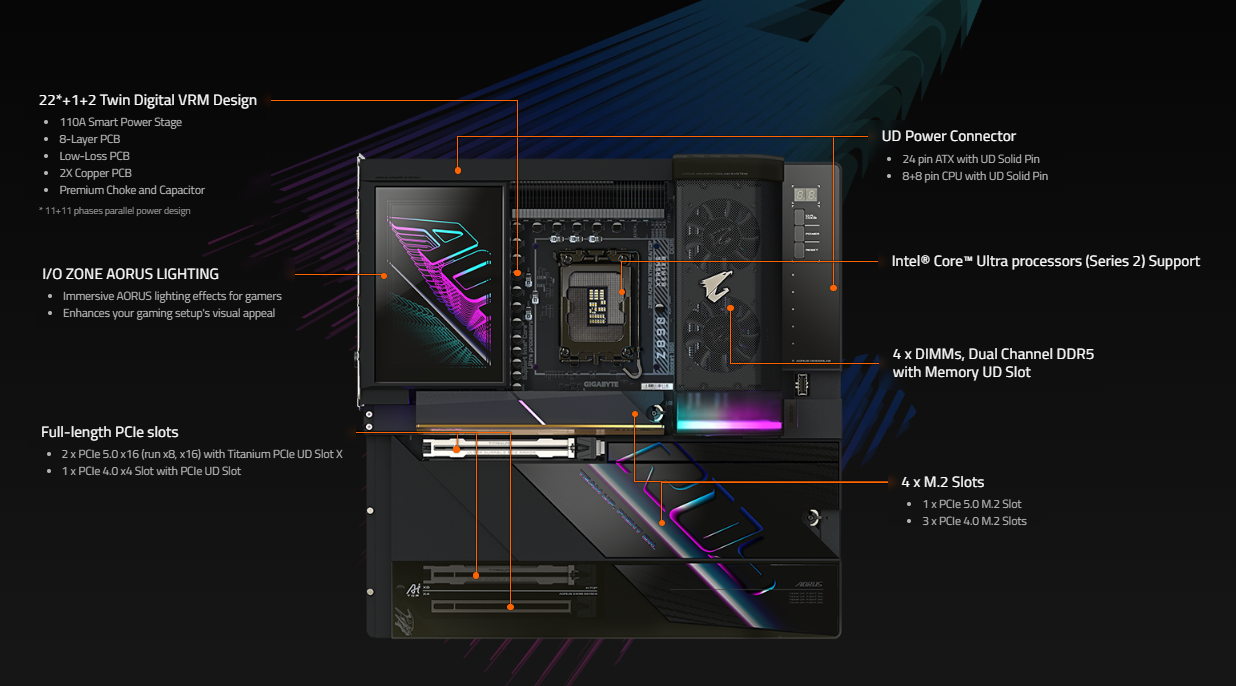

Key Features	Training your own AI on your desk Supports Intel® Core™ Ultra processors (Series 2) Digital twin 22+1+2 phases VRM solution Ultimate Scalibility: 2PCIe 5.0 x16 slots for Multi-GPU and 4PCIe 5.0/4.0 x4 M.2 slots Next-gen Connectivity: Dual THUNDERBOLT™ 5 and THUNDERBOLT™ 4 Type-C with DP-Alt Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with RGB

Description

Gigabyte Z890 AORUS XTREME AI TOP WIFI Intel DDR5 PCIE 5.0 LGA 1851 ATX Motherboard

Unlock the Full Potential of Your Intel Build with the Gigabyte Z890 AORUS XTREME AI TOP WIFI Motherboard

The Gigabyte Z890 AORUS XTREME AI TOP WIFI motherboard is designed for enthusiasts who demand peak performance and cutting-edge technology. This ATX motherboard is powered by Intel's latest platform, supporting the LGA 1851 socket, making it the ideal choice for your next high-performance PC build. With support for DDR5 memory and PCIe 5.0, this motherboard ensures you have the speed and efficiency needed for gaming, content creation, and multitasking.

Experience lightning-fast data transfer rates with PCIe 5.0 technology, allowing your graphics cards and SSDs to perform at their best. The Z890 AORUS XTREME is engineered for high-end gaming and professional applications, providing unparalleled bandwidth and an ultra-responsive experience that brings your games to life with stunning graphics and fluid gameplay.

Designed for maximum memory performance, the motherboard supports DDR5 memory modules, enabling higher speeds and increased bandwidth over previous generations. With multiple DIMM slots, this motherboard supports dual-channel memory configurations, so you can take full advantage of your high-frequency RAM, boosting performance across all applications.

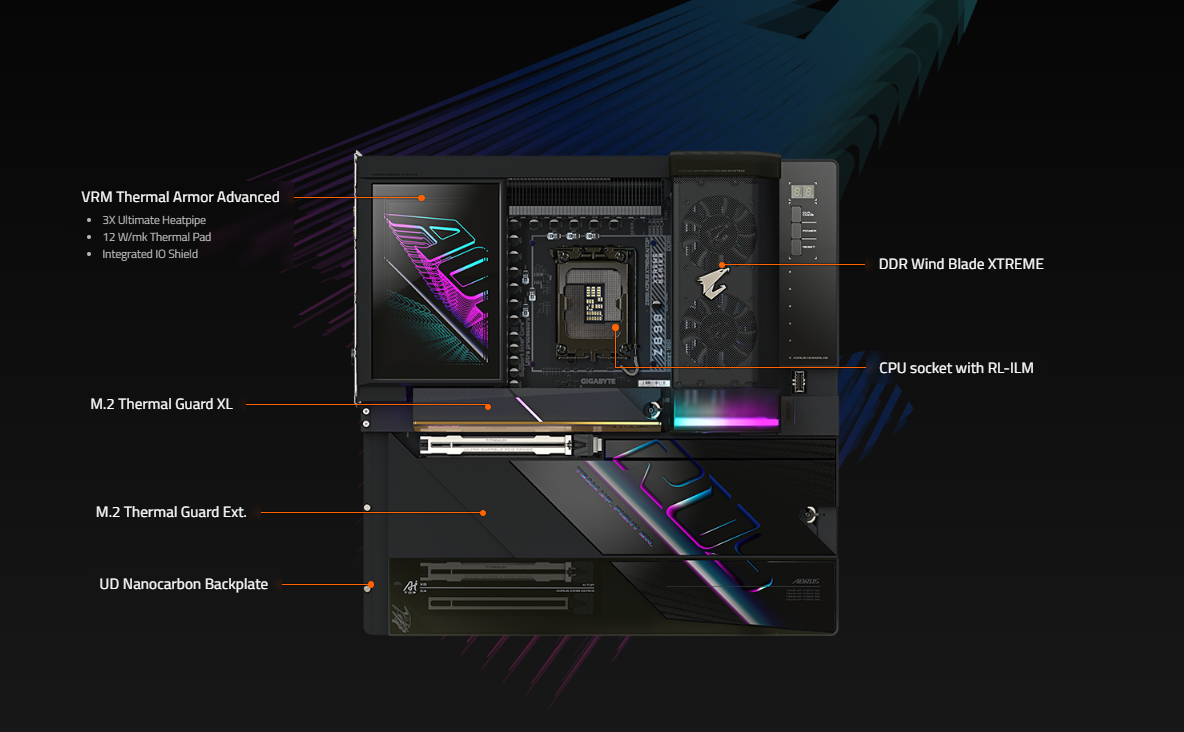

Equipped with advanced thermal design features, the Z890 AORUS XTREME ensures that your components remain cool under pressure. The premium heat sinks, along with heat pipes, guarantee optimal cooling, while the fan connectors allow for customizable fan control to keep your system quiet and efficient even during intense gaming sessions. You can trust this motherboard to maintain stable temperatures for long-term reliability.

Connectivity is at the forefront of the Z890 AORUS XTREME design. With built-in Wi-Fi 6E, you'll enjoy faster internet speeds, improved range, and connectivity that keeps you in the game. Multiple USB ports, including USB 3.2 Gen 2x2, allow for quick file transfers and easy connection of devices. The motherboard also features integrated I/O shielding to prevent electromagnetic interference, ensuring a stable and interference-free environment for your components.

Customization is key with the Z890 AORUS XTREME. With RGB Fusion technology, you can personalize the aesthetic of your build by syncing RGB lighting with compatible components and peripherals. Choose from a spectrum of colors and effects to create a unique setup that reflects your style.

For gamers who demand the best, the integrated AORUS Audio System provides high-fidelity sound quality, immersing you in your gaming world with crystal-clear audio. With high-quality capacitors and an isolated audio PCB, every sound detail is reproduced, giving you an edge over your opponents.

The Gigabyte Z890 AORUS XTREME AI TOP WIFI motherboard is more than just a component; it’s the backbone of a powerful system. Whether you're a gamer, content creator, or tech enthusiast, this motherboard delivers the performance, connectivity, and customization options you need to take your builds to the next level.

Make the smart choice for your next PC build with the Gigabyte Z890 AORUS XTREME. Combine performance and style and power up your gaming and professional experience like never before.

Specification

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

Intel® Z890 Express Chipset

Memory

Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) /

7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller:

- 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display

output)

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed.

(Refer to Chapter 2-6, "Back Panel Connectors," for more information.)

* Support for DisplayPort 2.1 version and HDCP 2.3

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs

When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).

When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

* Support for DisplayPort 2.1 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Audio

1 ESS ES9280AC DAC chip+2 ESS ES9080 chips

DTS® Sound Unbound™

High Definition Audio

2-channel

Support for S/PDIF Out

* The line out jack and the optical S/PDIF out connector can only be used one at a time.

LAN

2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)

Wireless Communication module

Intel® Wi-Fi 7 BE200NGW

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset+Intel® Thunderbolt™ 5 Controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU:

- 1 x USB4® USB Type-C® port onboard

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+1 USB 3.2 Gen 2 Hub:

- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+1 USB 3.2 Gen 1 Hub:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+1 USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan extension cable header (can extend three system fan headers through one cable)

1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)

1 x noise detection header

1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header

through one cable)

4 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x Thunderbolt™ 4 connector (USB4® USB Type-C® port)

2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers

through one cable)

1 x power button

1 x reset button

1 x Clear CMOS button

2 x temperature sensor headers

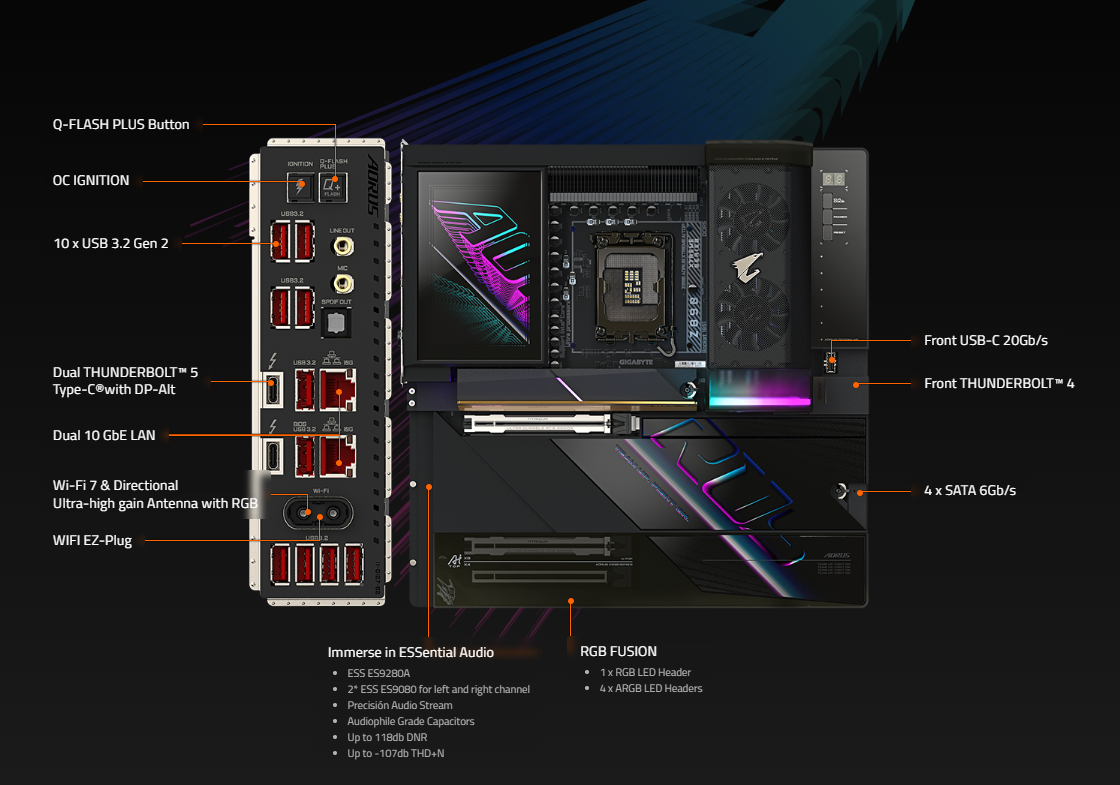

Back Panel Connectors

1 x Q-Flash Plus button

1 x OC Ignition button

2 x Thunderbolt™ 5 connectors (USB4® USB Type-C® ports)

10 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit (version 24H2 or later)

Form Factor

E-ATX Form Factor; 30.48cm x 30.5cm
