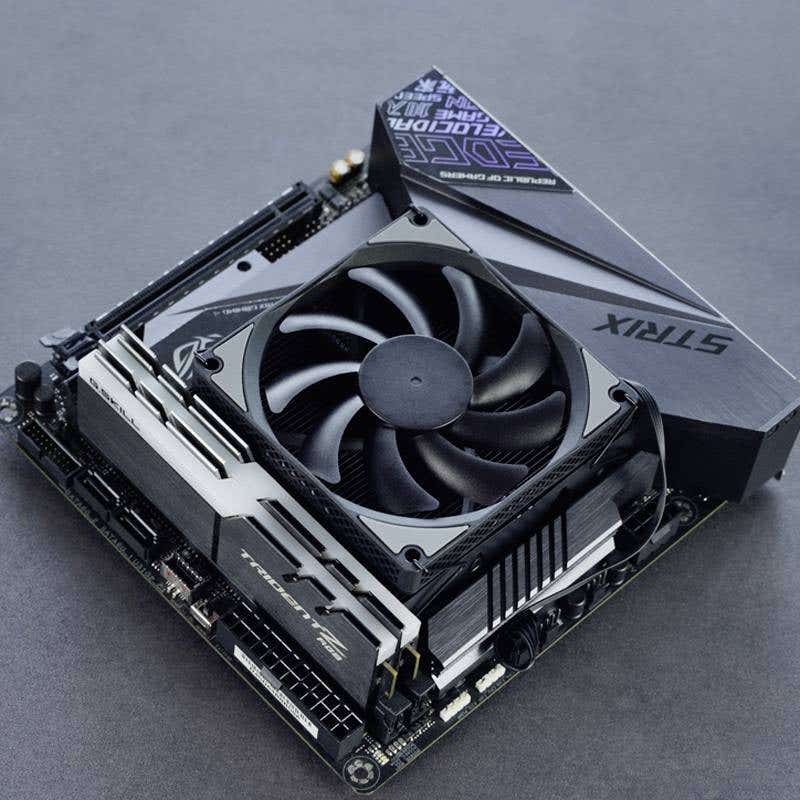

Jonsbo HX4170D Black Intel and AMD Low Profile CPU Cooler

The HX4170X is a compact 92mm PWM fan and is characterized by its particularly low height of only 43.5mm. This makes it ideal for use in SFF setups such as Mini-ITX systems. The Jonsbo HX4170X ventilates your valuable components with up to 3,300 rpm. and achieves a low volume of only 28.4 db(A).

£33.99 £28.32
SKU
798-366-F33
In stock

Features

Features

Brand Jonsbo
Model Number HX4170D
Colour Black
Key Features

- Compatible with AMD and Intel processors
- Control via PWM signal
- Four highly efficient heat pipes
- Speed variable between 600 and 3,300 revolutionsolume of only 28.4 db(A).

Description

Jonsbo HX4170D CPU Cooler 92mm - Black



The HX4170X is a compact 92mm PWM fan and is characterized by its particularly low height of only 43.5mm. This makes it ideal for use in SFF setups such as Mini-ITX systems. The Jonsbo HX4170X ventilates your valuable components with up to 3,300 rpm. and achieves a low volume of only 28.4 db(A).



- Suitable for SFF builds and CPUs up to 170W TDP
- Compatible with AMD and Intel processors
- Control via PWM signal
- Four highly efficient heat pipes
- Speed variable between 600 and 3,300 revolutions
- Maximum volume of 28.4 dB(A) under full load
- Excellent cooling for compact gaming systems



Four heatpipes conduct the waste heat from your components into the fine cooling fins of the cooler. The temperature exchange is carried out by the powerful fan with a pressure of up to 2.71 mmH20 and a maximum delivery volume of 66 m³/h. The scope of delivery includes brackets for the common sockets from Intel and AMD, which ensures broad compatibility. The discreet cooler comes in black and blends seamlessly and unobtrusively into your build.



Specification

Technical details:
- Dimensions: 95 x 45.3 x 95 mm (W x H x D)
- Weight: 290g
- Material: plastic, copper, aluminum
- Color: Black
- Volume: max. 28.4 dB(A)
- Speed: 600 - 3,300 rpm
- Static pressure: 0.7 - 2.71 mmH2O
- Delivery volume: 66 m³/h
- Cooling power: 170W TDP
Compatibility:
- Intel: LGA 1700 / 1200 / 115x
- AMD: AM4
- Current: 0.35A
- Voltage: 12V
Connections:
- 4-pin PWM
- Manufacturer's warranty: 2 years
Scope of delivery:
- Thermal Grizzly thermal compound
- Mounting brackets
- screws
