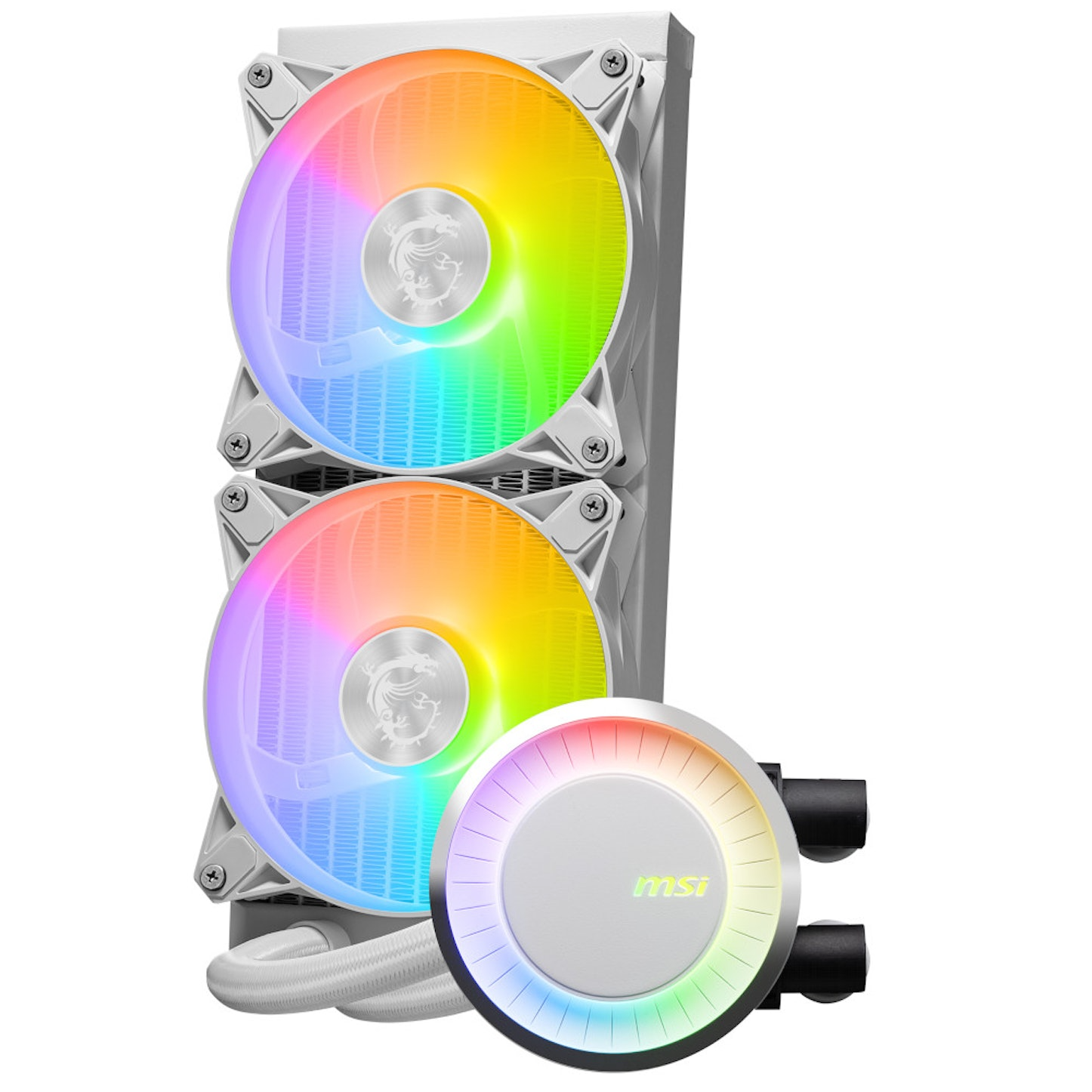

MSI MAG CoreLiquid E240 White 240mm AIO Liquid Cooler
The MAG CORELIQUID E Series AIO CPU liquid coolers are inspired by a solar eclipse, presented with Mystic Light ARGB lighting. This innovative product combines advanced cooling technology with a striking visual design.
Features
General
SKU | 590-5A4-3C8 |
Features
Brand | MSI |
Model Number | E240 White |
Colour | White |
Key Features | - Silent, Game Mode, and Balanced profiles |
Description
MSI MAG CORELIQUID E240 White ARGB Performance Liquid CPU Cooler - 240mm
The Colder, The Better
The MAG CORELIQUID E Series AIO CPU liquid coolers are inspired by a solar eclipse, presented with Mystic Light ARGB lighting. This innovative product combines advanced cooling technology with a striking visual design.
Effective Cooling System
Effectively reducing the temperature of the heat source, the water block of the MAG CORELIQUID E series can separate hot and cold coolant into different chambers to lower the temperature of the heat source.
A durable three-phase motor at the pump's core generates minimal vibrations for long-lasting operation.
Full CPU Coverage
With multi-die CPU layouts, notably AM5 processors, the hotspot can sometimes be off center.
In response to this trend, the MAG CORELIQUID E-Series has an enlarged cold plate area.
MSI Center Support
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through MSI motherboard:
- Silent, Game Mode, and Balanced profiles
- Customizable radiator fan speed curves
- Customizable pump speed curves
Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths. This improves thermal dissipation between coolant and fan-cooled air.
Specification
Radiator Size 240 mm
Radiator Dimensions (WxDxH)
277 x 119.2 x 27mm / 10.91 x 4.69 x 1.06 Inches
Radiator Material Aluminum
Water Cooling Tube
Material Black Rubber
Number of Fans 2
Fan Dimensions (WxDxH) 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Air Flow 25.5~75.04 CFM
Fan Bearing Fluid Dynamic Bearing (FDB)
Fan Life Expectancy 50,000 hrs@40℃
Fan Rated Current 0.25A(Max:0.4A)
Fan Power Consumption 3W(Max:4.8W)
PWM Mode YES
Cable Length (PWM Cable) 500 mm
Fan Connector 4-pin
Fan Lighting ARGB
RGB Connector 3-pin + Socket
Pump Life Expectancy 200,000 hours in typical use
Pump Noise Level 20 dBA (avg.)
Pump Rated Current 0.25A (Max: 0.5A)
Pump Power Consumption 3W (Max: 6W)
Pump Speed 3000 RPM ± 10%
Pump Connector 4-pin
Cold Plate Material Copper
Block Dimensions (WxDxH) 41±0.2*47.6±0.2mm
Intel Socket Support LGA 1150/1151/1155/1156/1200/1700
AMD Socket Support AM5/AM4
Accessories 1 x 1 to 2 Fan PWM cable 1 x Molex
