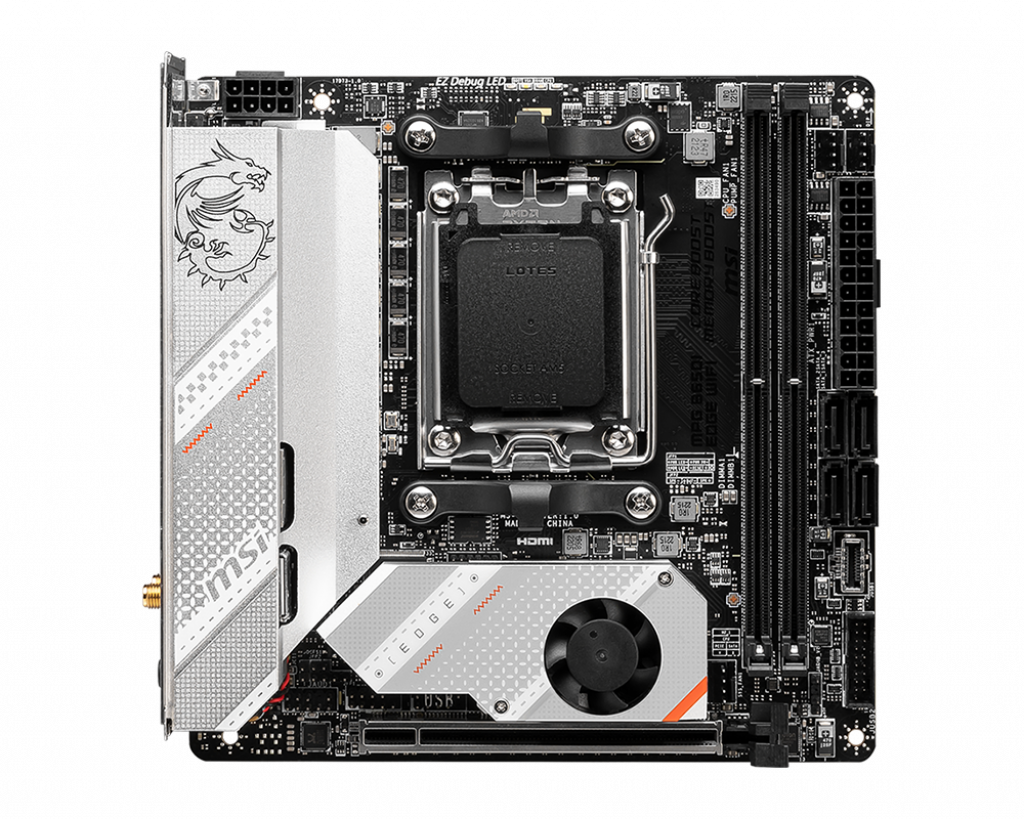

MSI MPG B650I EDGE WIFI AMD Ryzen DDR5 Mini ITX Motherboard - Socket AM5

With extraordinary performance and style, the MPG series defines the future of gaming fashion.

£219.99 £183.32
SKU
4C6-BA3-14D
In stock

Features

General

SKU 4C6-BA3-14D

Features

Brand MSI
Model Number MPG B650I EDGE WIFI
Warranty Support 3 Years
Motherboard Chipset B650 Chipset (Ryzen AM5)
CPU Socket Type Socket AM5
Memory Type DDR5
Outputs HDMI
Form Factor Mini-ITX
Key Features

- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

MSI MPG B650I EDGE WIFI AMD Ryzen DDR5 Mini ITX Motherboard - Socket AM5

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

DIRECT 8+2+1 CPU POWER DESIGN
Unleash and sustain the maximum performance with a strong VRM design built with a total of 8+2+1 phases. Combining 80A Smart Power Stage, the MPG B650I EDGE WIFI is ready for high-end AM5 processors.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MPG B650I EDGE WIFI offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B650I EDGE WIFI is ready to deliver the world class memory performance.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.2
- 2.5G LAN

Specification

Chipset
AMD B650

CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

Memory
2x DDR5, Maximum Memory Capacity 64GB
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Onboard Graphics     1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
1x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
Multi-GPU     Supports AMD MULTI-GPU

Storage
2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port

RAID
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Audio
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
2x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS
Clear CMOS Button
Flash BIOS Button
1x 2.5G LAN
Wireless / Bluetooth
Audio Connectors
1x HDMI™
2x USB 3.2 Gen 1 5Gbps (Type-A)
3x USB 3.2 Gen 2 10Gbps (Type-A)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension
Mini-ITX
170mmx170mm
