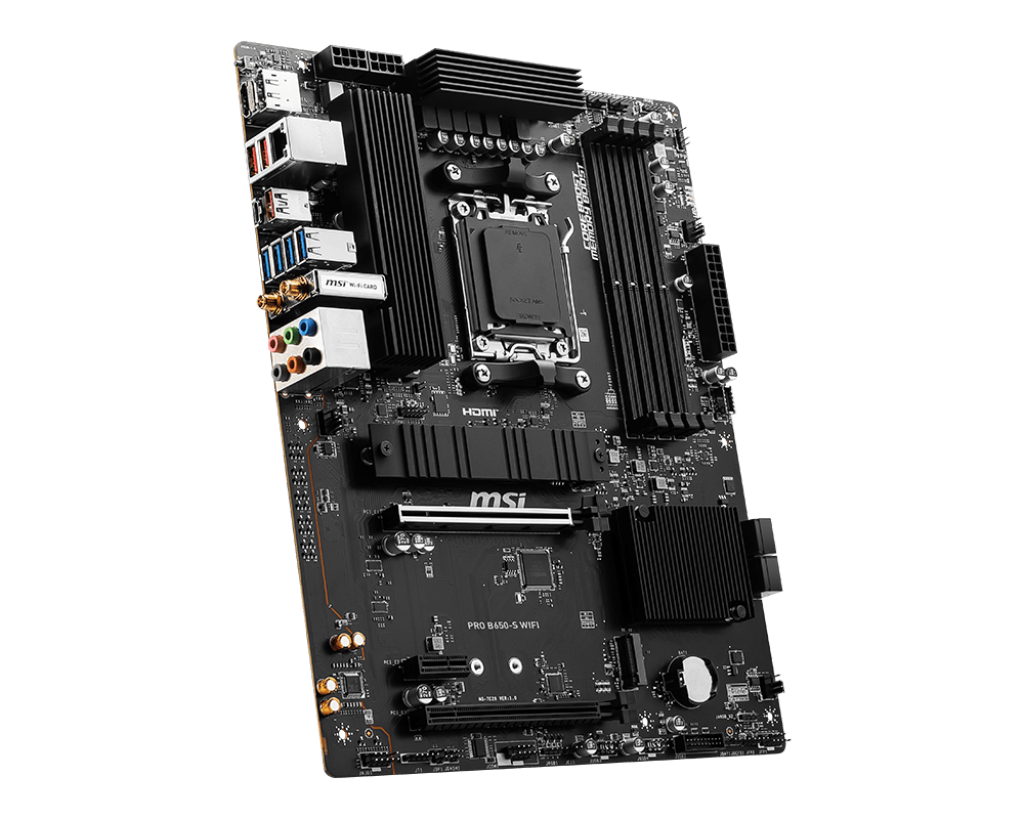

MSI PRO B650-S WIFI AMD Ryzen AM5 DDR5 ATX Motherboard

Maximize your system's potential with the MSI PRO B650-S WIFI AMD Ryzen AM5 DDR5 ATX Motherboard. Engineered for AMD Ryzen AM5 processors and equipped with DDR5 memory support, this motherboard offers seamless performance and enhanced efficiency for your gaming or professional setup. With built-in Wi-Fi 6E capabilities and a range of connectivity options, the PRO B650-S ensures connectivity without compromise. Experience reliability and performance with MSI's trusted motherboard technology.

Free Delivery Available

£159.95 £133.29

SKU

9EB-971-621

In stock

Features

Description

Specification

Delivery

Reviews

Features

Features

Brand	MSI
Model Number	PRO B650-S WIFI
Motherboard Chipset	B650 Chipset (Ryzen AM5)
CPU Socket Type	AM5
Memory Type	DDR5
Outputs	DisplayPort 1.4, HDMI 2.1
Form Factor	ATX

Description

MSI PRO B650-S WIFI AMD Ryzen AM5 DDR5 ATX Motherboard

Unlock the full potential of your AMD Ryzen AM5 processor with the MSI PRO B650-S WIFI ATX Motherboard. Designed to deliver exceptional performance and reliability, this motherboard is the perfect foundation for your gaming or professional PC build.

At the heart of the PRO B650-S is its robust AM5 socket, which provides compatibility with the latest AMD Ryzen processors. Whether you're gaming, streaming, or tackling intensive tasks, this motherboard ensures smooth and responsive performance to meet your demands.

The PRO B650-S boasts DDR5 memory support, offering improved speed and efficiency compared to DDR4. With faster data transfer rates and lower power consumption, DDR5 memory allows for enhanced multitasking and smoother overall system operation.

Featuring built-in Wi-Fi 6E connectivity, the PRO B650-S eliminates the need for additional adapters or cables, providing convenient wireless access to your network. This allows for greater flexibility in placement and ensures a clutter-free setup.

The motherboard also offers a comprehensive range of connectivity options, including USB 3.2 Gen2, USB Type-C, and HDMI ports, providing ample connectivity for your peripherals and devices. Additionally, PCIe 4.0 support allows for high-speed data transfer and future-proofing for upcoming hardware upgrades.

MSI's renowned motherboard technology ensures reliability and stability, with high-quality components and rigorous testing procedures. The PRO B650-S is built to last, providing peace of mind for your long-term computing needs.

With its combination of performance, features, and reliability, the MSI PRO B650-S WIFI AMD Ryzen AM5 DDR5 ATX Motherboard is the perfect choice for users seeking a high-quality motherboard for their next PC build. Experience the difference with MSI's trusted motherboard technology.

Specification

CHIPSET
AMD B650

CPU
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket
AM5

MEMORY
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS
1x HDMI™
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPU
AMD MULTI-GPU Support

STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID
Supports RAID 0 and RAID 1 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek® 8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS
DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)

OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO
ATX
243.84mmx304.8mm
