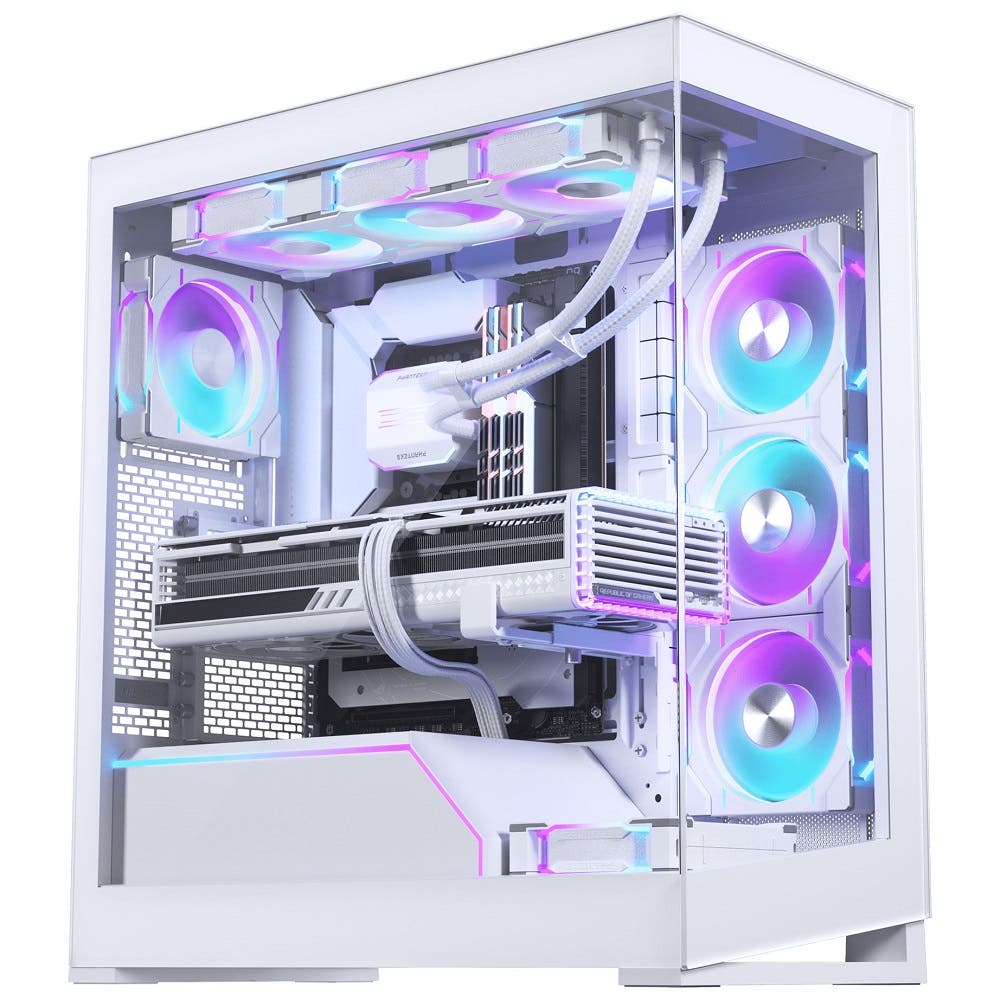

Phanteks NV5 MKII Showcase Gaming Case - White
The Phanteks NV5 MKII Showcase Gaming Case in White offers a sleek and stylish design perfect for showcasing your gaming setup. With a spacious interior for high-performance components and customizable RGB lighting, this case is a must-have for any gaming enthusiast.
£127.14
£105.95
SKU
C94-B37-BB1
In stock
Features
Description
Specification
Features
General
| SKU | C94-B37-BB1 |
Features
| Brand | Phanteks |
| Model Number | PH-NV523TG_DMW02 |
| Warranty Support | 5 Years |
| Colour | Black |
| Key Features | Near-Seamless Glass Panels: Provides a stunning, uninterrupted view of the internal components, showcasing your build effectively. Extensive Cooling Support: Can accommodate up to twelve 140mm fans and supports multiple radiator configurations, including triple 420mm radiators, ensuring optimal cooling performance. Integrated D-RGB Lighting: Comes with built-in digital RGB lighting, compatible with various motherboard RGB control software for customized lighting effects. Versatile GPU Support: Includes a GPU support bracket to prevent sag and securely hold the GPU.
|
Description
Phanteks NV5 MKII Showcase Gaming Case - White
"
Upgrade Your Gaming Setup with the Phanteks NV5 MKII Showcase Gaming Case
Take your gaming experience to the next level with the Phanteks NV5 MKII Showcase Gaming Case in stunning white. This premium gaming case features a sleek design and innovative features that will enhance your gaming performance and aesthetics.
Equipped with tempered glass panels on the front and side, the NV5 MKII showcases your gaming setup in style. The clean lines and white finish give it a modern and sophisticated look that will impress any gamer. Plus, the RGB lighting effects add a customizable touch that will make your setup stand out from the rest.
But the NV5 MKII isn't just about looks – it's also designed for maximum performance. The spacious interior can accommodate large graphics cards and cooling systems, ensuring that your components stay cool under pressure. The built-in cable management system keeps your cables organized and out of the way, while the tool-less design makes installation a breeze.
With support for ATX, Micro-ATX, and Mini-ITX motherboards, the NV5 MKII is versatile enough to meet your gaming needs. Whether you're a casual gamer or a hardcore enthusiast, this case has everything you need to create the ultimate gaming experience.
Don't settle for a boring gaming case – upgrade to the Phanteks NV5 MKII Showcase Gaming Case and turn your setup into a masterpiece. Order yours today and experience the difference for yourself.
"

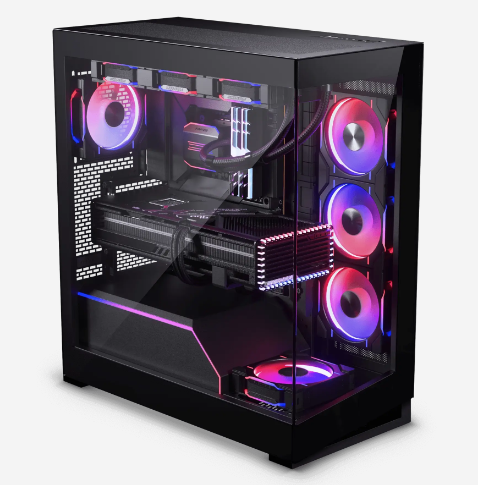

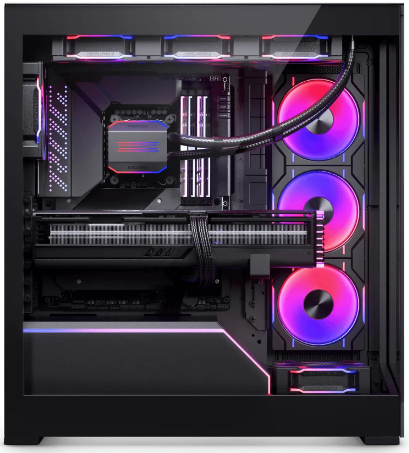

PERFECT VIEW OF YOUR SYSTEM
- Near-seamless glass panels for a perfect view of all your system components.
- Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
- A total of eight 120 mm fan positions for high-end cooling performance.
- Dual 360 radiator support in the top and side.
READY FOR MODERN GPUS
- Increased chassis width to support wider GPUs and 12VHPWR cables.
- GPU support bracket supports and holds the GPU securely to chassis and motherboard.
- Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
- Removable PSU cover for easy access to power cables.
BUILD FOR THE FUTURE

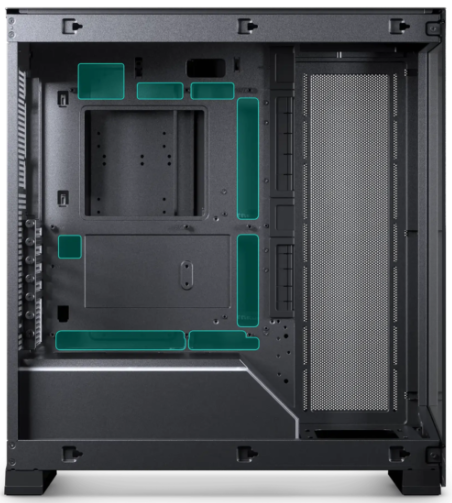

- UNLOCK THE ZERO-CABLE SETUP
- Mainboards with hidden connectors on the rear-side are fully supported by the NV chassis.
- Support for MSI Project Zero mainboards.
- Support for ASUS BTF mainboards.
Specification
SPECIFICATIONS
GENERAL
MODEL NO.
PH-NV523TG_DMW02
CASE DIMENSIONS
239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in
FORM FACTOR
Mid-Tower
MAINBOARD SUPPORT
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up To 280mm Without GPU Support Bracket
MATERIALS
Steel chassis | Tempered glass
SIDE WINDOW
Yes
PCI SLOTS
7
VERTICAL GPU SUPPORT
3-slots
Riser Cable Sold Separately
INTERNAL 2.5″ BAY
4
INTERNAL 3.5″ BAY
3
FRONT I/O
1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button
FANS 120 | 140
TOTAL FANS
8x | –
TOP
3x | –
FRONT
– | –
SIDE
3x | –
REAR
1x | –
BOTTOM
1x | –
RADIATORS 120 | 140
TOP
Max. 360 | –
FRONT
– | –
SIDE
Max. 360 | –
REAR
120 | –
BOTTOM
– | –
CLEARANCE
CPU COOLER Height
180 mm | 7.08 in
GPU Length
440 mm | 17.32 in
GPU Height
170 mm | 6.69 in
POWER SUPPLY Length
230 mm | 9.05 in
TOP RADIATOR Length X Width
134 x 430 x 62 mm | 5.27 x 16.92 x 2.44 in
FRONT RADIATOR Length X Width
– | –
SIDE RADIATOR Length X Width
130 x 420 x 62 mm | 5.11 x 16.53 x 2.44 in
REAR RADIATOR Length X Width
132 x 170 mm | 5.19 x 6.69 in
EXTRA
NET WEIGHT
11.28 kg | 24.9 lbs
GROSS WEIGHT
13.97 kg | 30.8 lbs
WARRANTY
5 Years limited
ACCESSORY BOX
6x Zip ties
1x GPU support bracket
SCREWS
22x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
12x Case screws
1x Motherboard stand-off
1x Stand-off removal tool
