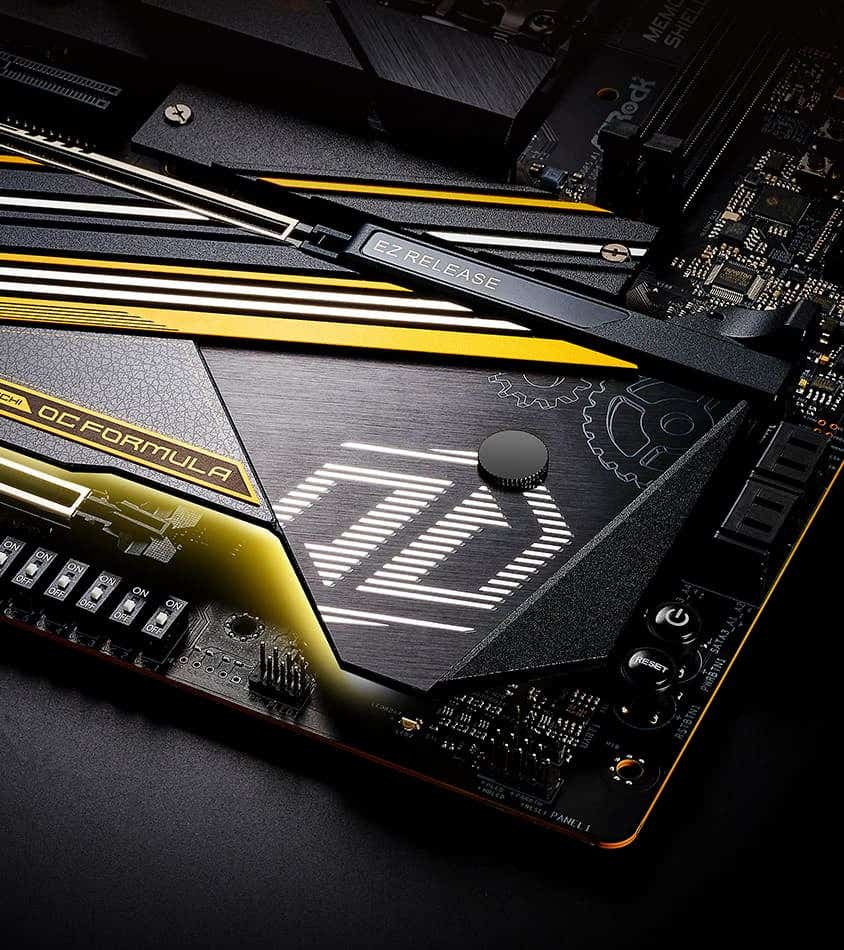

ASRock Z890 Taichi OCF Gaming Motherboard
Experience high-performance gaming with the ASRock Z890 Taichi OCF motherboard. Designed for enthusiasts, it features advanced overclocking capabilities, robust cooling solutions, and extensive connectivity options. Maximize your rig's potential with premium build quality, support for the latest Intel processors, and customizable RGB lighting for a unique gaming setup.
Features
Features
Brand | ASRock |
Model Number | 90-MXBPM0-A0UAYZ |
Chipset | Z890 |
Memory Capacity | 192GB |
Operating System | Windows 11 |
Colour | White |
Key Features |
Intel Z890 chipset Supports 13th and 12th Gen Intel Core processors ATX form factor for standard cases Dual-channel DDR5 memory support Up to 128GB RAM capacity PCIe 5.0 for graphics and storage devices Multiple M.2 slots for NVMe SSDs USB 3.2 Gen 2x2 Type-C connectivity Integrated WiFi 7 for advanced wireless networking High-quality audio capacitors and Nahimic Audio support Robust power delivery system with premium components Customizable RGB lighting with ASRock Polychrome SYNC Flexible storage options with SATA and M.2 connectors Good thermal performance with heatsinks and design Enhanced connectivity options including multiple USB and HDMI ports |
Description
ASRock Z890 Taichi OCF Gaming Motherboard
ASRock Z890 Taichi OCF Gaming Motherboard
Enhance your gaming and computing experience with the ASRock Z890 Taichi OCF Gaming Motherboard, meticulously designed for high performance and exceptional reliability. This motherboard is equipped with advanced features that cater to gamers, content creators, and power users seeking a robust and dynamic platform for their builds.
Powered by the latest Intel Z890 chipset, this motherboard supports Intel's 12th and 13th generation processors, ensuring lightning-fast performance and unmatched multitasking capabilities. Experience seamless gaming and streaming with support for both DDR5 memory and PCIe 5.0 technology. With its 4 DIMM slots, your system can support up to 128GB of high-speed RAM, giving you the edge to tackle even the most demanding applications with ease.
The ASRock Z890 Taichi OCF features a sophisticated thermal design, incorporating premium components and innovative cooling solutions to keep your system running at optimal temperatures. The board is equipped with reinforced VRM heatsinks, as well as dual M.2 slots with heatsinks for NVMe SSDs, allowing for superior heat dissipation and maximum performance, even during intense gaming sessions.
Connectivity is never a concern with the ASRock Z890 Taichi OCF. The motherboard offers a plethora of ports, including USB 3.2 Gen2, USB-C, and HDMI outputs. With dual LAN ports featuring 2.5GbE and 1GbE connections, you can enjoy ultra-fast networking for lag-free online gaming and smooth file transfers. Additionally, the integrated Wi-Fi 6E technology provides stellar wireless performance, ensuring you remain connected no matter where your gaming takes you.
The aesthetic design of the ASRock Z890 Taichi OCF does not compromise on functionality. Featuring stunning Taichi branding and customizable RGB lighting, this motherboard allows you to express your unique style. The RGB illumination can be synchronized with other compatible components, letting you create a cohesive and visually stunning setup.
With support for multiple GPU configurations through its PCIe slots, this motherboard is ideal for gamers and creators looking to build a multi-GPU system for enhanced visual performance and processing power. You can take advantage of technologies such as NVIDIA SLI and AMD CrossFire for improved graphics and performance in demanding titles.
Experience peace of mind with the ASRock Z890 Taichi OCF Gaming Motherboard’s extensive range of safety features. The integrated back-up BIOS, high-quality capacitors, and durable PCB construction ensure longevity and stability for your system. This motherboard is engineered to meet the needs of modern applications while providing a secure and highly reliable foundation for your powerful build.
In conclusion, the ASRock Z890 Taichi OCF Gaming Motherboard is the ultimate choice for anyone serious about gaming and performance. With its cutting-edge technology, exceptional build quality, and stylish design, it is perfectly suited to power your next big project or gaming session. Don’t miss out on the opportunity to take your experience to the next level with this top-tier motherboard.
Specification
Unique Feature
Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
Thunderbolt™ 4 Type-C Ports (40 Gb/s)
6 x M.2 Sockets
Rock-Solid Durability
Server-Grade Low-Loss PCB
22+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
Memory OC Shield
Flexible Integrated I/O Shield
20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
5G LAN, 802.11be Wi-Fi 7 Module
Professional Overclocking
ASRock Hyper BCLK Engine
6 x OC Profiles
Heater
ElmorLabs OC Panel
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
CPU
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Supports ASRock Hyper BCLK Engine
Chipset
Intel® Z890
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 10133MHz+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x
1DPC 1R Up to 10133+ MHz (OC), 6400 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
BIOS
2 x 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel® Xe LPG Graphics Architecture
2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Nahimic Audio
LAN
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126
Wireless LAN
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 320MHz channel bandwidth with 6GHz* frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11.
The availability will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
CPU:
1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode*
Chipset:
1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Supports AMD CrossFire™
15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)
PCIE3 supports PCIe riser cards to extend one x8 slot to x4/x4 slots.
Supports NVMe SSD as boot disks
Storage
CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 x USB 3.2 Gen2 Type-A (Rear)
5 x USB 3.2 Gen1 (1 Rear, 4 Front)
3 x USB 2.0 (Front)
All USB ports support ESD Protection
Connector
2 x Thermistor Cable Headers
1 x Power LED and Speaker Header
4 x Addressable LED Headers*
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)**
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Heater Header
1 x ElmorLabs OCP Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Retry Button
1 x Safe Boot Button
V-Probe™: 11-set of onboard voltage measurement points laid
Rapid OC Buttons: +/- buttons to adjust OC frequency
6 x OC Switches
1 x Slow Mode Switch
1 x LN2 Mode Switch
1 x NickShih's OC Profile 1 Button with LED
1 x NickShih's OC Profile 2 Button with LED
1 x NickShih's OC Profile 3 Button with LED
Support in total up to 5V/3A, 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
2 x Antenna Ports
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x Optical SPDIF Out Port
2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
1 x USB 3.2 Gen1 Port
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x BIOS Selection Switch
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
Supports USB PD 3.0 up to 5V@3A (15W) charging
USB32_45 support Ultra USB Power.
Software and UEFI
Software
ASRock Formula Drive
ASRock Polychrome SYNC*
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
2 x Thermistor Cables
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
10 Layer PCB
2oz Copper PCB
OS
Microsoft Windows® 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
