ASUS PRIME B650-PLUS Wifi AMD Ryzen AM5 DDR5 ATX Motherboard - 90MB1KP0-M0EAY0
Unlock exceptional performance with the ASUS PRIME B650-PLUS Wifi motherboard, designed for AMD Ryzen AM5 processors. This ATX board features cutting-edge DDR5 memory support, PCIe 5.0 slots, and robust connectivity options. Optimized cooling and customizable settings enhance reliability, making it perfect for gamers and creators seeking high efficiency and speed.
Features


General
SKU | 121-54B-911 |
Features
Brand | Asus |
Model Number | 90MB1KP0-M0EAY0 |
Chipset | AM5 |
Memory Capacity | 192GB |
Operating System | Windows 11 |
Colour | Silver |
Key Features |
Supports AMD Ryzen AM5 processors DDR5 memory support for faster performance ATX form factor for better compatibility Integrated Wi-Fi 6 for high-speed wireless connectivity Multiple USB 3.2 Gen 2 ports for enhanced data transfer PCIe 5.0 support for next-gen GPUs and storage solutions Comprehensive cooling options for optimized thermal management Aura Sync RGB lighting for customizable aesthetics High-quality capacitors and robust power delivery system Easy BIOS update feature for seamless upgrades |
Description
ASUS PRIME B650-PLUS Wifi AMD Ryzen AM5 DDR5 ATX Motherboard - 90MB1KP0-M0EAY0
ASUS PRIME B650-PLUS Wifi AMD Ryzen AM5 DDR5 ATX Motherboard
The ASUS PRIME B650-PLUS Wifi motherboard is a powerhouse for those looking to enhance their computing experience with the latest technology. Designed for AMD Ryzen AM5 processors, this ATX motherboard supports DDR5 memory, providing a higher bandwidth and lower power consumption compared to its predecessors. Whether you are a gamer, content creator, or a professional seeking top-notch performance, this motherboard delivers unmatched capabilities.
Equipped with extensive connectivity options, the ASUS PRIME B650-PLUS features multiple USB ports including USB 3.2 Gen 2 Type-A and Type-C connectors, ensuring rapid data transfer speeds and versatility for all your peripherals. The integrated Wi-Fi 6 technology guarantees a fast and stable internet connection, enabling seamless online gaming, streaming, and file sharing. Experience lag-free connectivity with the advanced wireless capabilities built into this motherboard.
The motherboard boasts a robust power delivery system with high-quality components designed to maintain stability even during intensive tasks. The 16+2 DrMOS power stages work in tandem with extensive cooling solutions, including multiple fan headers and M.2 heatsinks, effectively managing thermal performance. This means that even during intense workloads or gaming sessions, the system remains cool and reliable for longer periods, maximizing performance without overheating.
Customization and personalization are at the forefront with this motherboard. ASUS's intuitive software allows users to easily tweak system settings, optimize performance, and monitor system health. The customizable RGB lighting features let you add a personal touch to your build, creating a visually stunning setup. Sync the RGB lighting with other ASUS Aura Sync-compatible devices for a cohesive look that enhances your gaming environment.
Compatibility is a key consideration for modern builds, and the ASUS PRIME B650-PLUS does not disappoint. With support for both PCIe 5.0 and PCIe 4.0, this motherboard can accommodate the latest graphics cards and storage solutions, ensuring you are future-proofed for the next generation of components. It also supports up to 128GB of DDR5 RAM, allowing for incredibly fast multitasking and processing capabilities.
Email alerts and automated system updates ensure that your motherboard operates at peak efficiency. Enjoy peace of mind with built-in security features, including secure boot, TPM support, and dedicated hardware-level safeguards. Protect your data and ensure your system is always secured against potential threats.
Upgrade your setup by choosing the ASUS PRIME B650-PLUS Wifi motherboard. Its mix of performance, connectivity, customization, and security makes it an ideal choice for anyone looking to build a powerful and reliable computer. Perfect for gamers looking for cutting-edge performance or professionals needing reliability, this motherboard is ready to meet the demands of modern computing. Don't miss out on the opportunity to transform your PC into a high-performance machine.

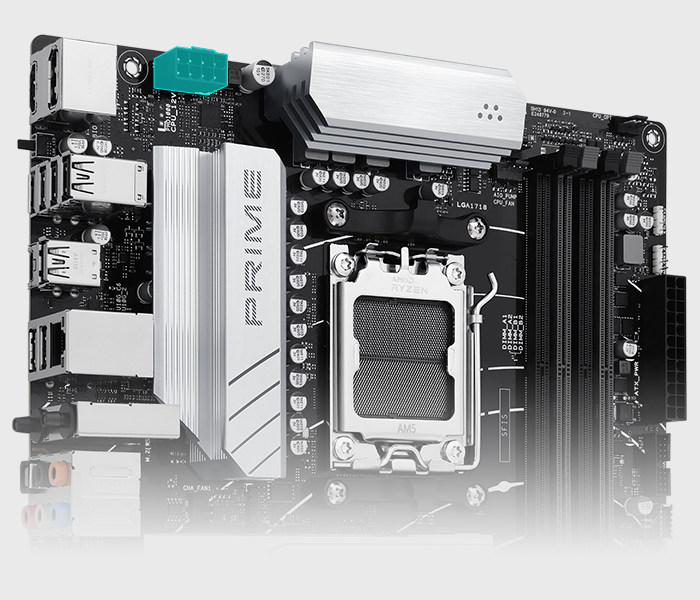

ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

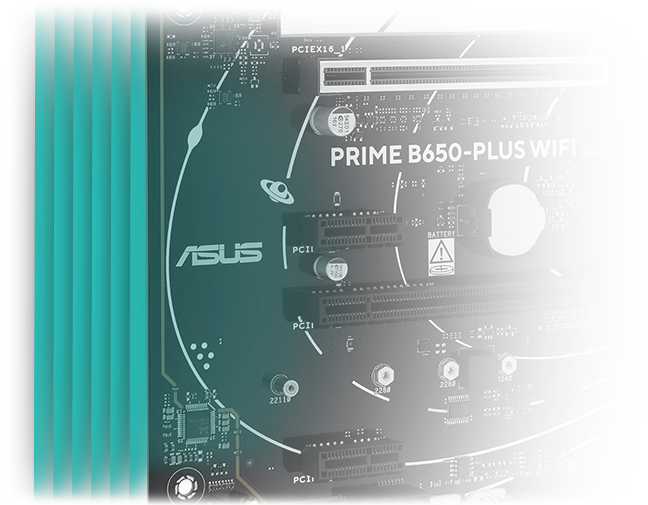

Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.


Specification
Model
PRIME B650-PLUS WIFI
News & Updates
Please refer to the global product page at the following link for thelatest news and specifications.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered
Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory
support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* Wi-Fi 6GHz frequency band regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

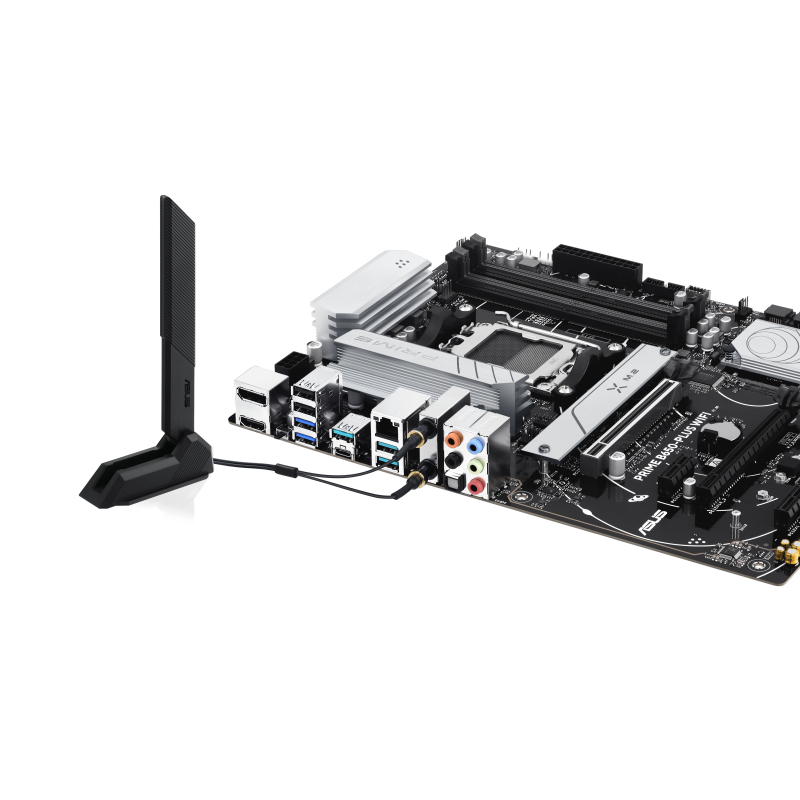

Back Panel I/O Ports
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 xWi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Wi-Fi moving antenna
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
