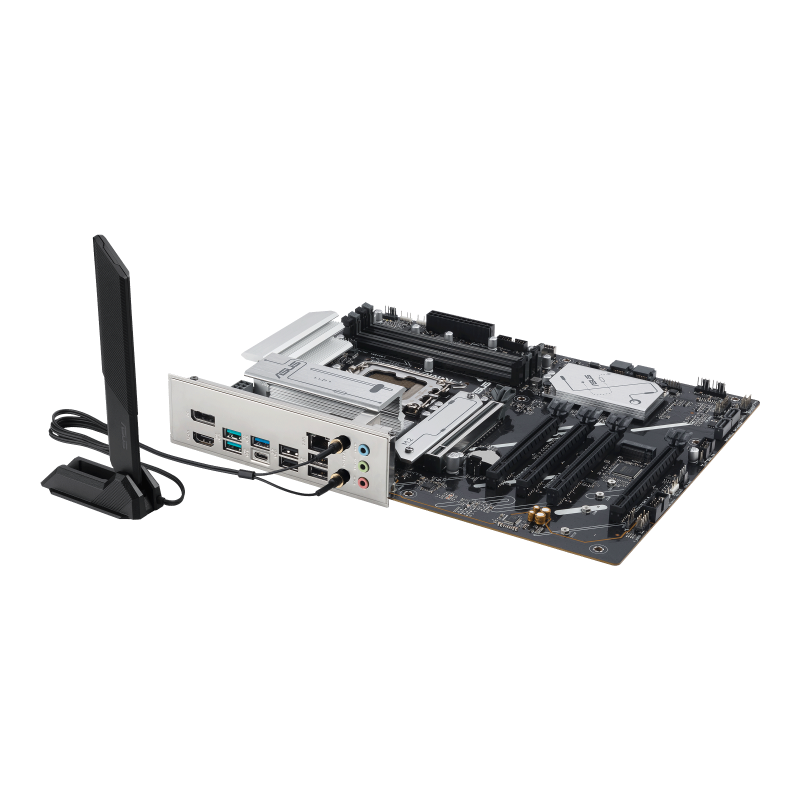

ASUS PRIME B860-PLUS WIFI Intel DDR5 ATX Motherboard LGA 1851 - 90MB1K50-M0EAY0
Unlock superior computing with the ASUS PRIME B860-PLUS WIFI motherboard. Designed for Intel's LGA 1851 socket and DDR5 RAM, it supports high-speed data transfers and multi-tasking efficiency. Enjoy built-in WiFi connectivity, multiple USB ports, and robust thermal performance. Ideal for gamers and professionals seeking reliability and performance.
Features


General
SKU | A7E-FDD-7E9 |
Features
Brand | Asus |
Model Number | 90MB1K50-M0EAY0 |
Chipset | LGA 1700 |
Memory Capacity | 192GB |
Operating System | Windows 11 |
Colour | Silver |
Key Features |
Supports Intel 13th and 12th Gen processors with LGA 1851 socket Dual-channel DDR5 RAM support with speeds up to 5600MHz ATX form factor for compatibility with a wide range of cases Integrated Wi-Fi 6 for high-speed wireless connectivity Multiple M.2 slots for NVMe SSDs for fast storage options PCIe 4.0 support for high-speed graphics and expansion cards USB 3.2 Gen 2 ports for fast data transfer Enhanced cooling solutions with fan headers and thermal pads AI Noise Cancelation technology for clearer audio and communication Comprehensive compatibility with a variety of operating systems and components |
Description
ASUS PRIME B860-PLUS WIFI Intel DDR5 ATX Motherboard LGA 1851 - 90MB1K50-M0EAY0
ASUS PRIME B860-PLUS WIFI Intel DDR5 ATX Motherboard
The ASUS PRIME B860-PLUS WIFI motherboard is designed for those who seek performance and reliability in their computing experience. Engineered with the latest Intel technologies, this motherboard supports the LGA 1851 socket, making it compatible with Intel's 12th and 13th generation processors. Experience enhanced multitasking and gaming capabilities with its robust feature set and intelligent design.
Crafted with DDR5 memory support, the B860-PLUS WIFI delivers faster data rates and improved efficiency, enabling you to push your system to its limits. With multiple memory slots, you can easily expand your RAM capacity, ensuring your applications run smoothly while providing a future-proof solution as software demands increase.
This motherboard excels in connectivity, featuring built-in Wi-Fi 6 for high-speed wireless networking. Say goodbye to lag and buffering, and connect to your home network or online gaming servers with ease. Additionally, the dual M.2 slots support PCIe 4.0 for lightning-fast NVMe SSDs, allowing you to install ultra-quick storage solutions that drastically reduce load times and enhance system responsiveness.
The ASUS PRIME B860-PLUS WIFI offers an impressive array of ports, including USB 3.2 Gen 2 Type-A and Type-C, giving you flexible connectivity options for your peripherals and external devices. This ensures that transferring data between devices is seamless and efficient, perfect for content creators and gamers alike.
Take advantage of the comprehensive cooling solutions available on the B860-PLUS WIFI. With multiple fan headers and dedicated temperature sensors, this motherboard allows you to keep your system cool even during intense gaming sessions or demanding workloads. The integrated AI Cooling feature automatically adjusts fan speeds based on your system's temperature, providing optimal cooling without the noise.
Customizable RGB lighting is another standout feature of the ASUS PRIME B860-PLUS WIFI. Personalize your gaming rig with vibrant colors and effects that sync with other RGB components and peripherals for a cohesive aesthetic. The ASUS Aura Sync software makes it easy to control and create impressive lighting schemes that reflect your style.
Designed for long-lasting durability and stability, this motherboard incorporates high-quality components and a reinforced structure, ensuring that it can withstand heavy usage and maintain optimal performance over time. The BIOS flashback feature enables you to easily update the firmware without needing a CPU or memory installed, simplifying the process for users upgrading their systems.
Whether you're building a gaming powerhouse, a workstation for creative tasks, or a dependable home office setup, the ASUS PRIME B860-PLUS WIFI motherboard provides the perfect foundation. Experience cutting-edge performance, exceptional connectivity, and stunning aesthetics all in one package. Invest in a motherboard that offers versatility and power, ensuring your systems can handle the demands of today and the challenges of tomorrow.

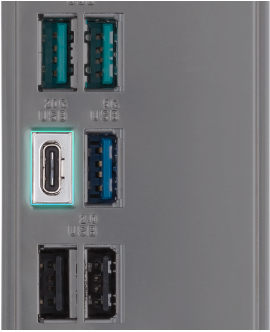

USB 20Gbps port
A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps.

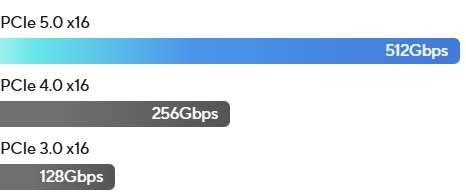

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Specification
Model
PRIME B860-PLUS WIFI
News & Updates
Please visit our GLOBAL website to check and download the latest updates.
CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps port (1 x USB Type-C®)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
