Gigabyte X870E AORUS PRO AMD Ryzen DDR5 WIFI Motherboard - Socket AM5

The Gigabyte X870E AORUS MASTER motherboard delivers exceptional performance for AMD Ryzen processors. With advanced DDR5 support, Wi-Fi connectivity, and robust power design, it is perfect for gamers and creators. Enjoy ultra-fast data transfer, extensive motherboard customization options, and superior cooling solutions for an optimized experience.

Free Delivery Available

£349.99 £291.66

SKU

DFA-42D-0C9

In stock

Features

Description

Specification

Features

General

SKU	DFA-42D-0C9

Features

Brand	Gigabyte
Model Number	X870E AORUS PRO
Warranty Support	2 Years
Chipset	AM5
Memory Capacity	192GB
Operating System	Windows 11
Colour	Black
Key Features	Supports AMD Ryzen processors with Socket AM5 DDR5 memory support for high-speed performance Wi-Fi 7 connectivity for faster and more reliable wireless networking PCIe 5.0 slots for next-gen graphics and storage solutions Robust power delivery system for enhanced CPU performance Multiple M.2 slots for ultra-fast NVMe SSDs Comprehensive cooling solutions including heatsinks and thermal guards USB 3.2 Gen 2x2 Type-C ports for high-speed data transfer Enhanced audio capacitors and high-quality audio components RGB Fusion 2.0 for customizable lighting effects

Description

Gigabyte X870E AORUS PRO AMD Ryzen DDR5 WIFI Motherboard - Socket AM5

<h3>Gigabyte X870E AORUS PRO AMD Ryzen DDR5 WIFI Motherboard</h3>
Unlock the full potential of your AMD Ryzen processor with the Gigabyte X870E AORUS PRO motherboard. Designed for gamers, content creators, and tech enthusiasts, this powerful motherboard takes your PC build to new heights. With its advanced architecture and cutting-edge features, the X870E AORUS PRO is the perfect foundation for high-performance computing.

Built on the AM5 socket, the X870E AORUS PRO supports the latest generation of AMD Ryzen processors, delivering exceptional speed and performance. Experience lightning-fast data transfer rates with DDR5 memory support, allowing you to run multiple applications seamlessly while maximizing your system's efficiency. The motherboard’s robust design ensures that it can handle overclocking, making it an ideal choice for those looking to push their hardware to the limit.

Connectivity is key, and this motherboard doesn’t disappoint. Featuring integrated WiFi 6E, you can enjoy ultra-fast wireless speeds for seamless online gaming and streaming. The X870E AORUS PRO is equipped with multiple USB ports, including USB 3.2 Gen 2x2 Type-C, ensuring you can connect all your peripherals without any hassle. Not to mention, the rear I/O panel features a plethora of ports for your audio, display, and storage needs.

When it comes to graphics, the X870E AORUS PRO shines with its PCIe 5.0 slots, offering support for the latest graphics cards on the market. This provides enhanced bandwidth for your GPU, allowing for significant improvements in performance during demanding workloads such as gaming and 3D rendering. Whether you are a casual gamer or a professional, this motherboard can handle it all.

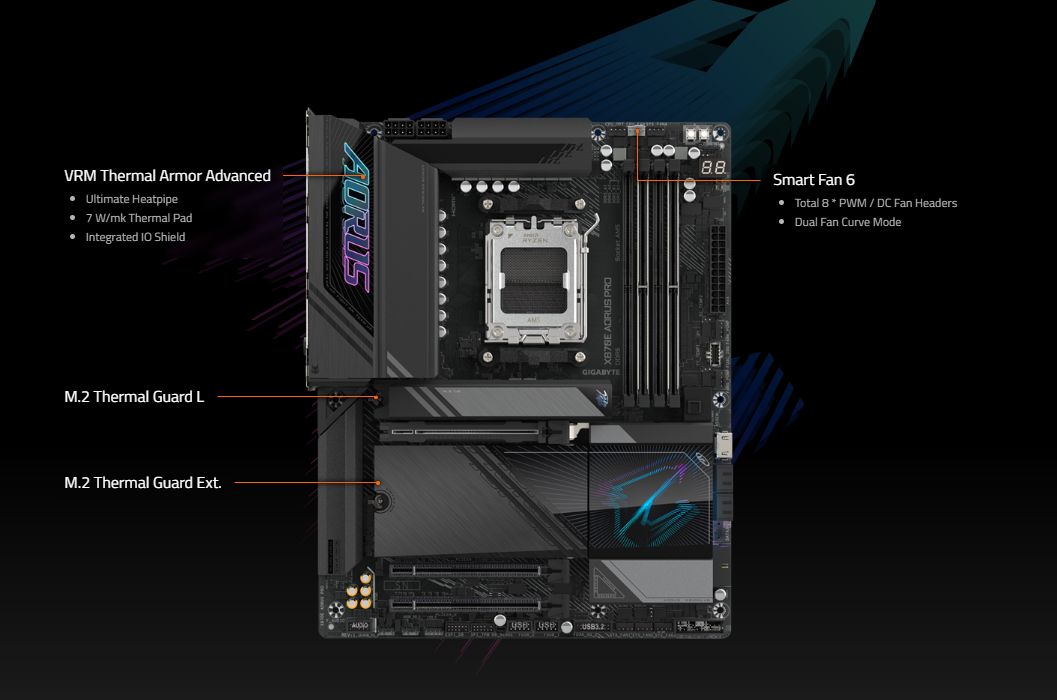

Cooling is crucial for maintaining peak performance, and the X870E AORUS PRO features an advanced thermal design that includes multiple fan headers and M.2 thermal guards. This ensures that your components stay cool even under heavy loads, prolonging their lifespan and stability. The smart fan control capabilities allow you to manage the cooling system to your preference, optimizing performance based on your usage scenario.

Aesthetics are also taken into account with customizable RGB lighting options that allow you to personalize your setup. The motherboard comes equipped with AORUS RGB Fusion technology, enabling you to sync the lighting effects across your compatible devices for a cohesive look. Stand out with a unique gaming rig that reflects your individual style.

The user-friendly BIOS interface makes setting up your system a breeze. Whether you're a seasoned builder or a first-time user, the intuitive design allows for easy navigation and configuration of settings. With built-in support for various overclocking features, you can optimize your performance quickly and efficiently.

Invest in your PC's future with the Gigabyte X870E AORUS PRO AMD Ryzen DDR5 WIFI motherboard. Experience unmatched speed, connectivity, and reliability that meets the demands of modern computing. Upgrade your build today and enjoy the exceptional performance that comes with this premium motherboard.

Specification

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD X870E

Memory

Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory

modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website

for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Qualcomm® Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Expansion Slots

1x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

* RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU+ASMedia USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU:

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x HDMI port (Note)

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)

1 x power button

1 x reset button

2 x temperature sensor headers

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x Q-Flash Plus button

2 x USB 2.0/1.1 ports

1 x HDMI port (Note)

4 x USB 3.2 Gen 1 ports

2 x USB4® USB Type-C® port (DisplayPort (Note))

3 x USB 3.2 Gen 2 Type-A ports (red)

1 x RJ-45 port

2 x antenna connectors (2T2R)

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
