Gigabyte Z890 AORUS MASTER Intel LGA 1851 DDR5 ATX Motherboard

Experience peak performance with the Gigabyte Z890 AORUS MASTER motherboard. Designed for Intel LGA 1851 processors, it supports DDR5 memory for lightning-fast speeds. Its ATX form factor ensures compatibility with various cases, while advanced thermal solutions keep your system cool. Unlock gaming potential and stability for demanding applications.

Free Delivery Available

£626.34 £521.95

SKU

1D5-BD4-21C

In stock

Choose Your Fitted Intel Core Ultra CPU

Qty

Features

Description

Specification

Features

General

SKU	1D5-BD4-21C

Features

Brand	Gigabyte
Model Number	Z890 AORUS MASTER
Chipset	LGA 1851
Memory Capacity	192GB
Operating System	Windows 11
Colour	Black
Key Features	LGA 1851 socket DDR5 memory support with up to 128GB capacity ATX form factor Triple M.2 slots with thermal guards PCIe 5.0 support for graphics and storage 10+1 phase digital power design Advanced thermal design with multiple heatsinks 2.5GbE LAN and Wi-Fi 6E connectivity USB 3.2 Gen 2x2 Type-C support High-resolution audio with premium capacitors and ESS DAC RGB Fusion 2.0 for customizable lighting effects Multiple fan headers with Smart Fan 6 technology Enhanced durability with reinforced PCIe slots

Description

Gigabyte Z890 AORUS MASTER Intel LGA 1851 DDR5 ATX Motherboard

Gigabyte Z890 AORUS MASTER Motherboard

Unlock your PC's full potential with the Gigabyte Z890 AORUS MASTER Intel LGA 1851 DDR5 ATX Motherboard. Designed for gamers and content creators alike, this powerhouse motherboard combines cutting-edge technology with exceptional performance and reliability. Experience lightning-fast data speeds and advanced connectivity options that cater to the modern computing needs.

The Gigabyte Z890 AORUS MASTER supports Intel's latest 13th Gen processors, ensuring you have the power required for intensive tasks, whether you're gaming, streaming, or multitasking. With its robust LGA 1851 socket and support for advanced cooling solutions, you can push your system to its limits without compromising on stability. Say goodbye to lag and latency with faster response times and enhanced frame rates.

Equipped with DDR5 memory support, this motherboard allows for higher bandwidth and improved performance over previous generations. Unlock extreme overclocking capabilities with an elevated memory architecture that pushes your RAM to its highest potential. Say hello to seamless multitasking and the ability to run demanding applications smoothly.

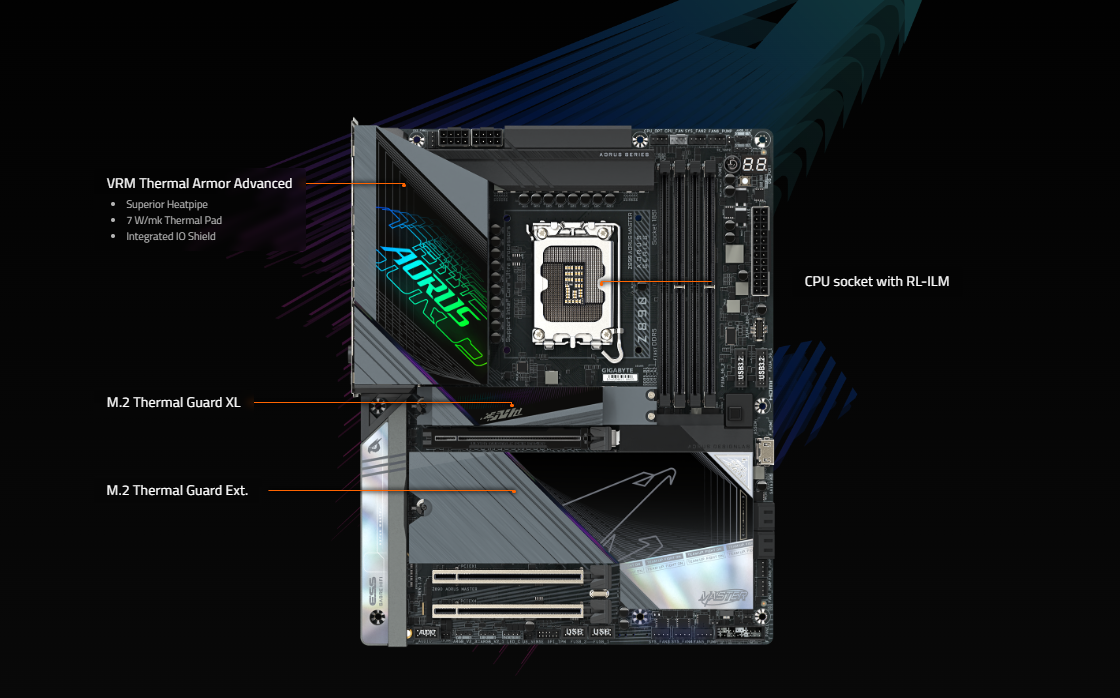

The motherboard's impressive thermal management features include multiple M.2 thermal guards and an advanced cooling design that ensures longevity and sustained performance, even during the most intense gaming sessions. Keep your components cool and optimized for performance, reducing the risk of thermal throttling.

Connectivity is a breeze with the Gigabyte Z890 AORUS MASTER. Equipped with multiple USB 3.2 Gen 2 ports, Thunderbolt 4 compatibility, and built-in Wi-Fi 6E, this motherboard is designed for the connected world. Experience blazing-fast data transfer speeds while also enjoying the flexibility to connect a wide range of peripherals, from high-speed storage devices to VR headsets.

With its sleek and customizable RGB Fusion lighting, the AORUS MASTER not only performs exceptionally but also looks stunning. Personalize your gaming rig with vibrant colors that sync across your components, enhancing your overall aesthetic while also providing a competitive edge with visibility adjustments.

Additionally, the onboard audio solution features high-quality capacitors, audio noise guard, and a dedicated sound chip, providing an immersive audio experience for gaming and media consumption. Enjoy every detail of your favorite games and movies with crystal-clear sound quality that elevates your listening experience.

For those looking to expand their systems, the Gigabyte Z890 AORUS MASTER offers ample PCIe slots for graphics cards and other expansion cards. Future-proof your rig with support for the latest technologies, ensuring you can upgrade components as they become available.

In conclusion, whether you are building a gaming powerhouse or a content creation machine, the Gigabyte Z890 AORUS MASTER motherboard is an unbeatable choice. Experience unparalleled speed, exceptional performance, and advanced features that set you up for success.

Specification

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

Intel® Z890 Express Chipset

Memory

Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) /

7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs

When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).

When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed.

(Refer to Chapter 2-6, "Back Panel Connectors," for more information.)

* Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Audio

Realtek® ALC1220 CODEC

* The front panel line out jack supports DSD audio.

ESS ES9118 DAC chip

Support for DTS:X® Ultra

High Definition Audio

2/4/5.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Marvell® AQtion AQC113C 10GbE LAN chip

(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 7 BE200NGW

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

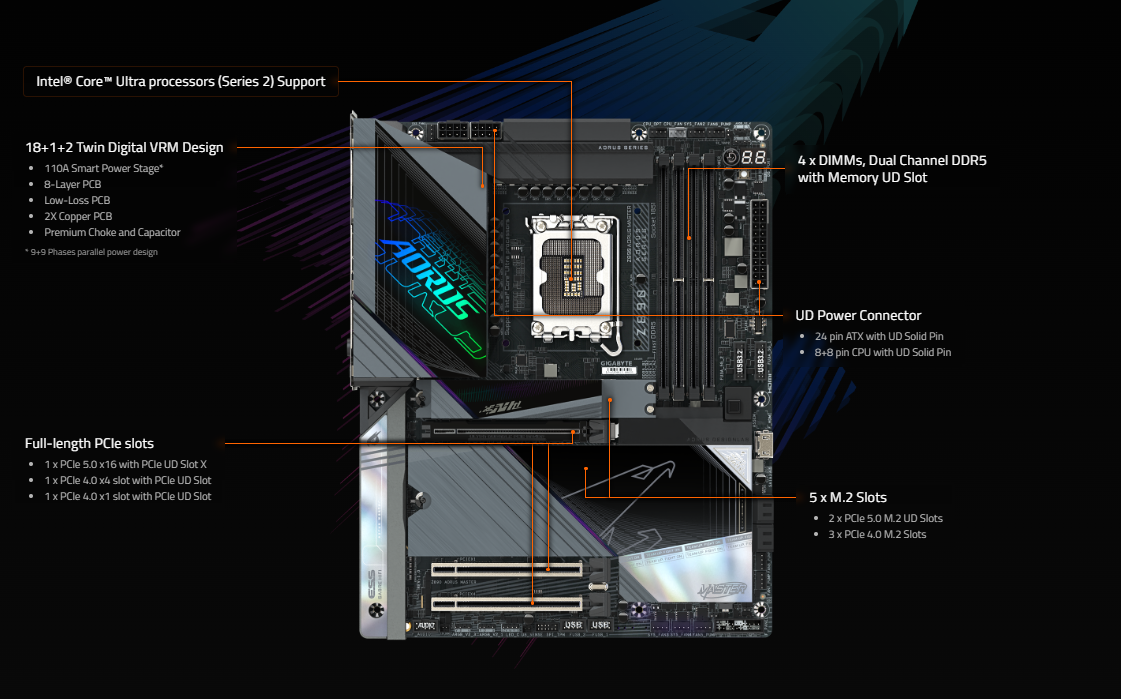

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:

- 2 x USB4® USB Type-C® ports on the back panel

Chipset:

- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2x2 Hub:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

Chipset+2 USB 3.2 Gen 1 Hubs:

- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+2 USB 2.0 Hubs:

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

4 x system fan/water cooling pump headers

4 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

(Note) Actual support may vary by CPU

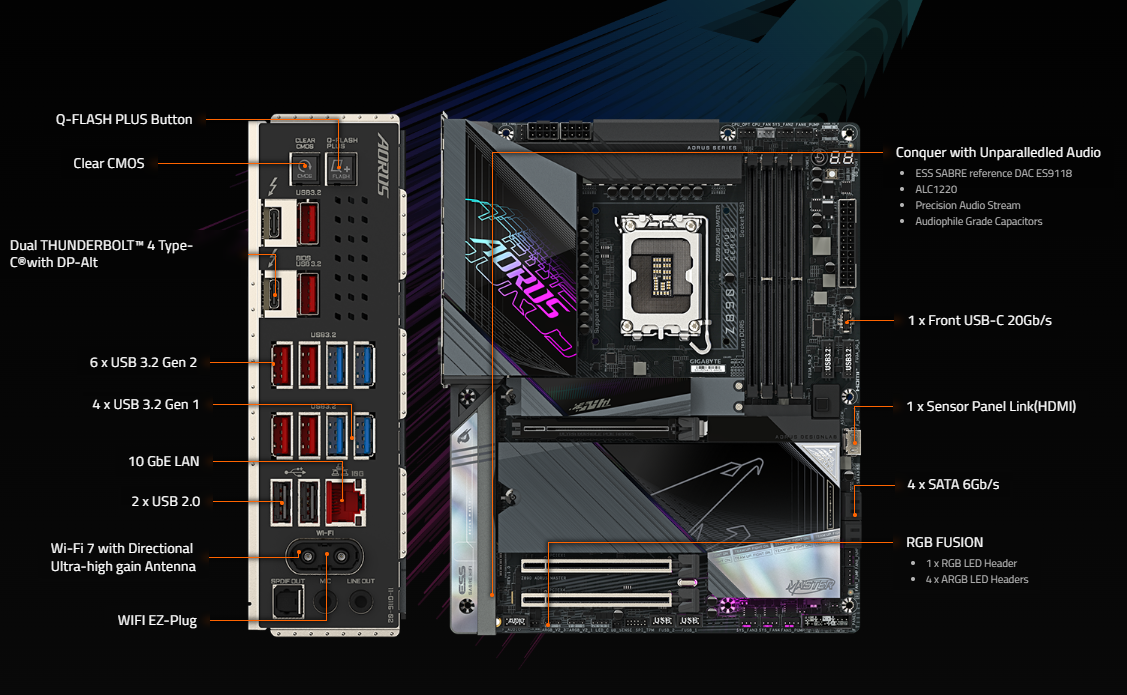

Back Panel Connectors

1 x Q-Flash Plus button

1 x Clear CMOS button

2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)

6 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
