Gigabyte Z890 AORUS PRO ICE Intel LGA 1851 DDR5 ATX White Motherboard

Discover the Gigabyte Z890 AORUS PRO ICE, a powerful Intel LGA 1851 motherboard designed for gamers and creators. With DDR5 support and an elegant white ATX design, it delivers superior performance and aesthetics. Ideal for high-speed data transfer and robust cooling, this motherboard ensures your system runs smoothly and efficiently, maximizing your creative potential.

Free Delivery Available

£359.99 £299.99

SKU

B33-0C3-688

In stock

Choose Your Fitted Intel Core Ultra CPU

Qty

Features

Description

Specification

Features

General

SKU	B33-0C3-688

Features

Brand	Gigabyte
Model Number	Z890 AORUS PRO ICE
Chipset	LGA 1851
Memory Capacity	192GB
Operating System	Windows 11
Colour	Black
Key Features	Intel LGA 1851 DDR5 memory support with high-speed overclocking capability ATX form factor for compatibility with standard cases Advanced thermal design with multiple heatsinks and thermal pads PCIe 5.0 support for future-proof graphics and storage expansions Comprehensive connectivity including USB 3.2 Gen 2x2 and Thunderbolt support Dual M.2 slots for ultra-fast NVMe storage options RGB Fusion technology for customizable RGB lighting High-quality capacitors and a robust power phase design for stable performance Onboard 5.1 channel audio with high-quality capacitors and audio components

Description

Gigabyte Z890 AORUS PRO ICE Intel LGA 1851 DDR5 ATX White Motherboard

Gigabyte Z890 AORUS PRO ICE Intel LGA 1851 DDR5 ATX White Motherboard

Power up your gaming setup with the Gigabyte Z890 AORUS PRO ICE Intel LGA 1851 DDR5 ATX Motherboard. Designed for high-performance enthusiasts, this motherboard combines cutting-edge technology with stunning aesthetics, making it the perfect choice for gamers and content creators alike.

Advanced Compatibility: Featuring the Intel LGA 1851 socket, the Z890 AORUS PRO ICE supports the latest 13th generation Intel Core processors, offering top-tier performance for your demanding applications.
Next-Gen Memory Support: Unlock exceptional speed and efficiency with DDR5 memory compatibility. With support for up to 128GB of RAM and overclocking capabilities, you can experience lightning-fast load times and seamless multitasking.

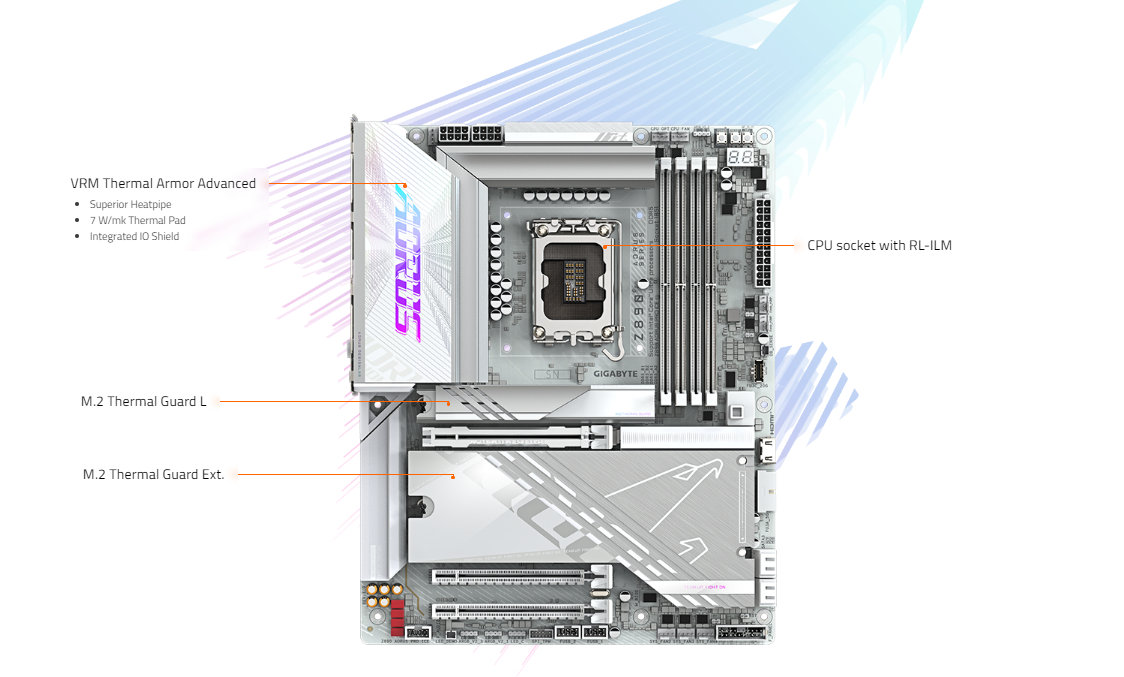

Dynamic Cooling Solutions: The motherboard is equipped with advanced thermal designs, including a large heatsink and multiple fan headers. This ensures optimal cooling performance, allowing your system to maintain peak performance even during intense gaming sessions.
Stunning Aesthetic: With its sleek white design and customizable RGB lighting, the AORUS PRO ICE enhances the visual appeal of your build. Personalize your setup with vibrant lighting effects that sync with your other RGB components.

Connectivity is another strong point of the Gigabyte Z890 AORUS PRO ICE. It features an array of USB ports including USB 3.2 Gen 2x2 type-C, providing rapid data transfer speeds for your peripherals and external devices. Additionally, the motherboard includes multiple M.2 slots for ultra-fast NVMe SSDs, enabling you to maximize storage performance and capacity.

The Z890 AORUS PRO ICE also boasts robust audio capabilities with high-definition audio codecs and premium capacitors, ensuring a rich and immersive audio experience. Whether you are gaming, watching movies, or creating content, this motherboard delivers clarity and precision that enhances your entertainment.

Optimal Network Performance: With the integrated Intel Wi-Fi 6E and 2.5GbE LAN, your online gaming and streaming will be smooth and lag-free. Enjoy high-speed internet access that keeps you connected without interruption.
Bulletproof Durability: Built with durable components that adhere to the highest quality standards, this motherboard is engineered for long-term reliability. The reinforced PCIe slots and solid capacitors provide a resilient foundation for your system.

Setting up your system is straightforward with the Gigabyte Z890 AORUS PRO ICE. The user-friendly BIOS and intuitive layout make installation and configuration a breeze, even for beginners. Experience hassle-free overclocking and system tuning options that allow you to unlock the full potential of your hardware.

In summary, the Gigabyte Z890 AORUS PRO ICE Intel LGA 1851 DDR5 ATX White Motherboard is an exceptional choice for anyone seeking to build a powerful, aesthetically pleasing, and highly reliable system. Whether you are a gamer, a streamer, or a professional, this motherboard provides everything you need to take your performance to the next level. Upgrade your setup today and experience the difference.

Specification

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

Intel® Z890 Express Chipset

Memory

Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) /

7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs

When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).

When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed.

(Refer to Chapter 2-6, "Back Panel Connectors," for more information.)

* Support for DisplayPort 1.4 version and HDCP 2.3

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Audio

Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 7 BE200

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Storage Interface

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:

- 2 x USB4® USB Type-C® ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+3 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x HDMI port (Note)

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x noise detection header

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

(Note) Actual support may vary by CPU.

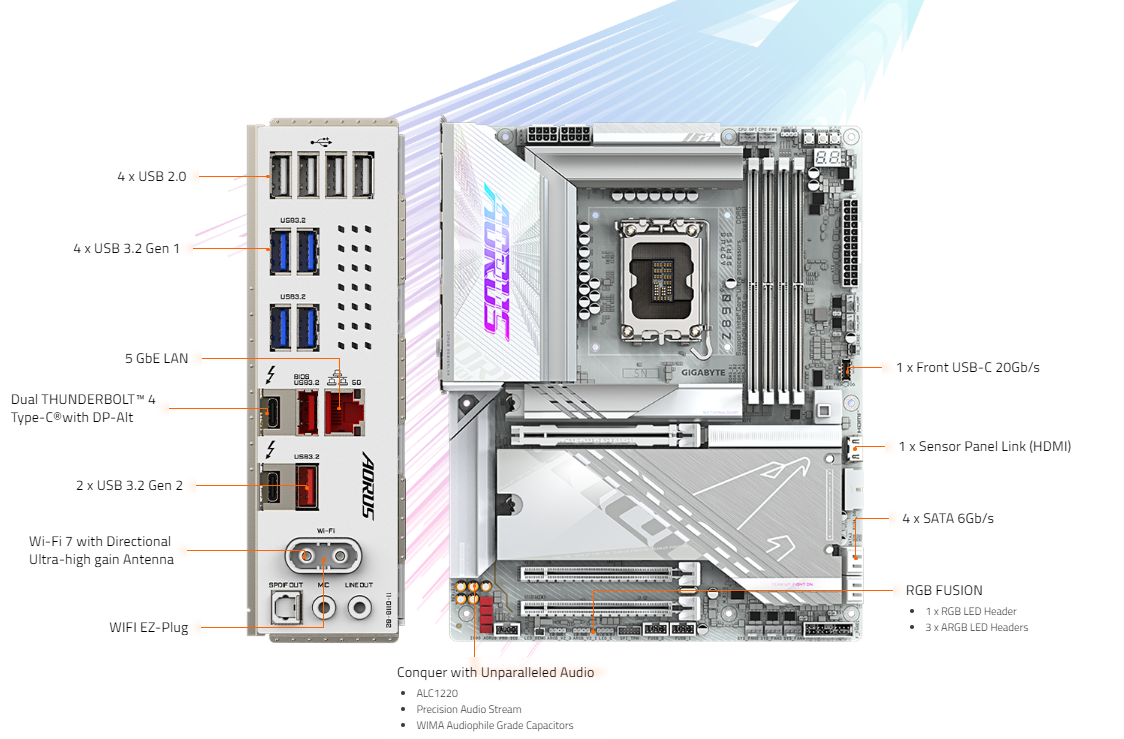

Back Panel Connectors

4 x USB 2.0/1.1 ports

2 x antenna connectors (2T2R)

4 x USB 3.2 Gen 1 ports

2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)

2 x USB 3.2 Gen 2 Type-A ports (red)

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
