Gigabyte B650M D3HP AM5 DDR5 Motherboard

The Gigabyte B650M D3HP AM5 DDR5 Motherboard delivers high performance and exceptional stability for gaming and productivity. Featuring advanced DDR5 support, robust VRM design, and multiple connectivity options, it’s perfect for building a future-proof system. Experience lightning-fast data transfer and superior power efficiency for all your computing needs.

£131.99 £109.99
SKU
9D5-DC1-AB4
In stock

Features

General

SKU 9D5-DC1-AB4

Features

Brand AWD-IT
Model Number B650M D3HP
Motherboard Chipset B650 Chipset (Ryzen AM5)
CPU Socket Type AM5
Memory Type DDR5
Form Factor ATX

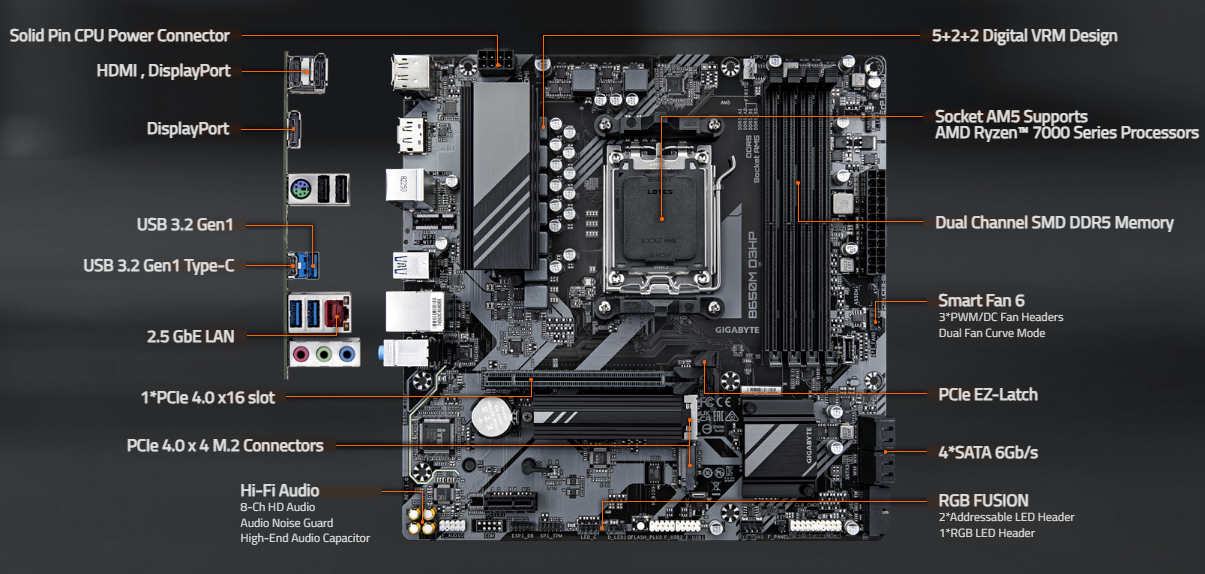

Key Features

AM5 socket support for next-generation Ryzen processors

Micro ATX form factor for compact builds

Dual-channel DDR5 memory support with overclocking capabilities

Four DIMM slots supporting up to 128GB of RAM

PCIe 4.0 support for high-speed graphics cards and expansion cards

Multiple M.2 slots for NVMe SSDs with thermal guards

USB 3.2 Gen 2 Type-A and Type-C ports for high-speed connectivity

Integrated Realtek 2.5GbE LAN for enhanced network performance

High-definition audio with capacitors for improved sound quality

Robust power design with solid capacitors and improved thermal performance

BIOS FlashBack feature for easy BIOS updates without CPU installation

Support for RGB lighting with customizable options through software

Durable construction with reinforced PCIe slots to prevent GPU sag

  1. Asrock Phantom Gaming B650I Lightning WIFI AM5 DDR5 Motherboard
    Asrock Phantom Gaming B650I Lightning WIFI AM5 DDR5 Motherboard
    £169.99 £141.66
    In stock
  2. Gigabyte B650E AORUS STEALTH ICE ATX Wifi7 AM5 DDR5 Motherboard
    Gigabyte B650E AORUS STEALTH ICE ATX Wifi7 AM5 DDR5 Motherboard
    £285.99 £238.32
    In stock
  3. Gigabyte B650M D3HP AM5 DDR5 Motherboard
    Gigabyte B650M D3HP AM5 DDR5 Motherboard
    £131.99 £109.99
    In stock
  4. Gigabyte B650E Aorus PRO X USB4 AMD AM5 DDR5 Wifi ATX Motherboard
    Gigabyte B650E Aorus PRO X USB4 AMD AM5 DDR5 Wifi ATX Motherboard
    £276.95 £230.79
    Out of stock

Description

  Gigabyte B650M D3HP AM5 DDR5 Motherboard


<h3>Gigabyte B650M D3HP AM5 DDR5 Motherboard: Unmatched Performance for Gamers</h3>
<p>The Gigabyte B650M D3HP AM5 DDR5 Motherboard is designed to meet the demands of modern gamers and content creators. Featuring an advanced AM5 socket, this motherboard supports the latest AMD Ryzen processors, ensuring you have the power needed for gaming, streaming, and multitasking. With its Micro ATX form factor, this motherboard is ideal for compact builds without sacrificing performance.</p>

<p>Equipped with cutting-edge DDR5 memory technology, the Gigabyte B650M D3HP supports speeds up to 6400 MHz, providing rapid data access and improved bandwidth. This enhancement allows for smoother gameplay and faster load times in your favorite titles. Gamers can also take advantage of the dual-channel memory architecture for optimized performance and responsiveness.</p>

<p>The B650M D3HP is built with high-quality components, ensuring durability and stability during extended gaming sessions. Its robust power delivery system ensures that your CPU operates at peak performance, even under heavy loads. The advanced thermal design with multiple fan headers ensures efficient cooling, keeping your system reliable and quiet.</p>

<p>One of the standout features of this motherboard is its comprehensive connectivity options. With multiple USB ports, including USB 3.2 Gen 2, you can connect all your peripherals efficiently. The inclusion of HDMI 2.1 supports high-resolution displays, making it perfect for gamers who want to enjoy games in stunning 4K quality. Additionally, the motherboard features PCIe 5.0 support, which allows you to install the latest GPUs and take full advantage of their raw power.</p>

<p>For those looking to build a high-speed storage system, the B650M D3HP comes with support for M.2 NVMe SSDs and SATA drives, enabling users to create lightning-fast storage solutions that significantly reduce load times and increase responsiveness. The board is compatible with RAID configurations, giving you more options for data management and redundancy.</p>

<p>Security is also a priority with the Gigabyte B650M D3HP. The motherboard features a range of protective measures, including a BIOS flashback and integrated I/O shield, to safeguard your system against potential threats. The intuitive BIOS interface makes system customization easy for both beginners and experienced users alike.</p>

<p>Customization is at your fingertips with the RGB Fusion software that allows you to create stunning lighting effects to match your build. This feature not only adds a personal touch but also enhances your gaming setup's aesthetic appeal. Pair your components seamlessly and create an eye-catching display that reflects your style.</p>

<p>The Gigabyte B650M D3HP AM5 DDR5 Motherboard is an excellent choice for those looking to build a powerful, efficient gaming rig. With its advanced technology, exceptional reliability, and impressive features, this motherboard provides all the tools you need to dominate the gaming arena. Upgrade your system with the B650M D3HP and experience the future of computing today.</p>


Specification

CPU
AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B650
Memory
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
